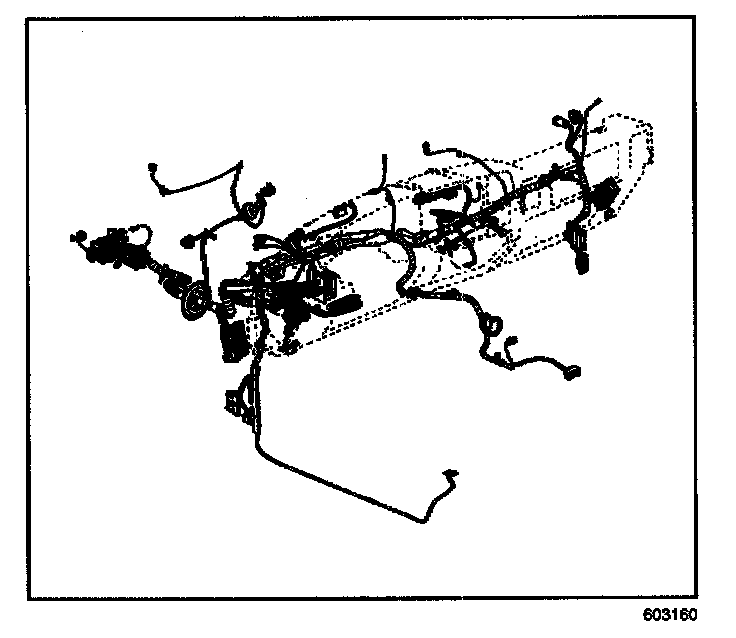

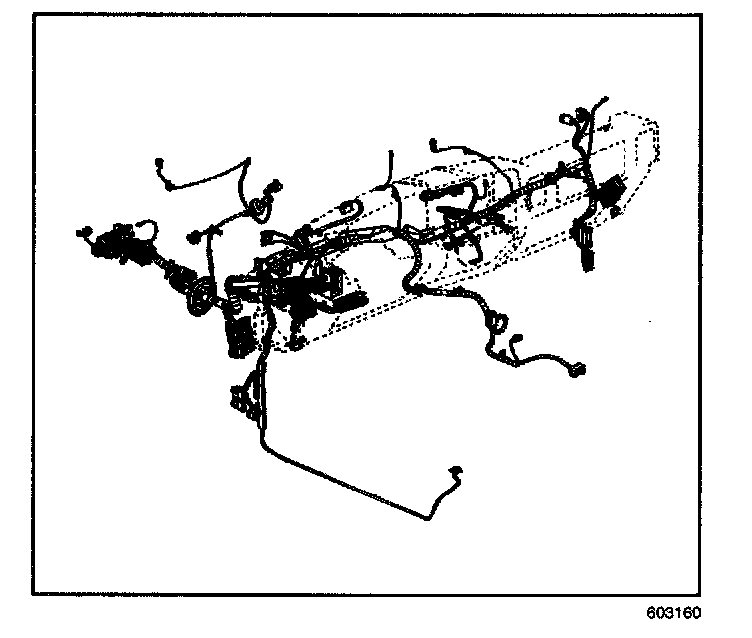

Instrument Panel (IP) - Harness Replacement

REMOVAL PROCEDURE

CAUTION: Refer to SIR Caution in Service Precautions.




1. Disconnect the SDM module.
2. Remove the door sill plate.
3. Remove the instrument panel.
4. Remove the HVAC duct.
5. Disconnect the electrical connectors.
6. Disengage the harness mounting clips.
7. Remove the harness from the vehicle.

INSTALLATION PROCEDURE




1. Install the harness to the vehicle.
2. Engage the harness mounting clips.
3. Connect the electrical connectors.
4. Install the HVAC duct.
5. Install the instrument panel.
6. Install the door sill plate.
7. Connect the SDM module.
