Extended Cab

REMOVAL PROCEDURE




1. Fold the seat up.
2. Remove the rear storage compartment bracket, If equipped.
3. Pull the seat belt buckles through the seat cushion and seat back.

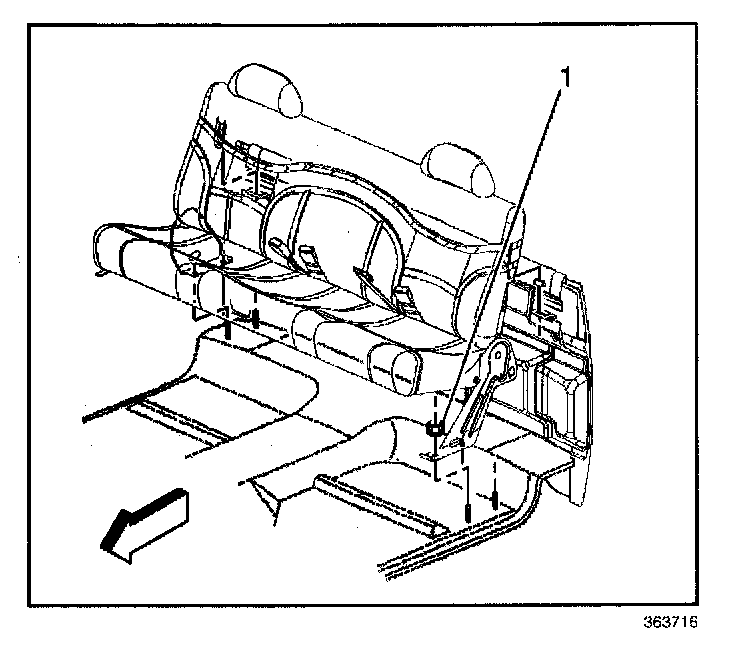

4. Remove the seat retaining bolts (1).
5. Lift the rear seat from the retaining hooks.
6. Remove the seat from the vehicle.

INSTALLATION PROCEDURE




1. Place the seat back clips on the retaining hooks.
2. Install the rear storage compartment bracket, If removed.

NOTE: Refer to Fastener Notice in Service Precautions.

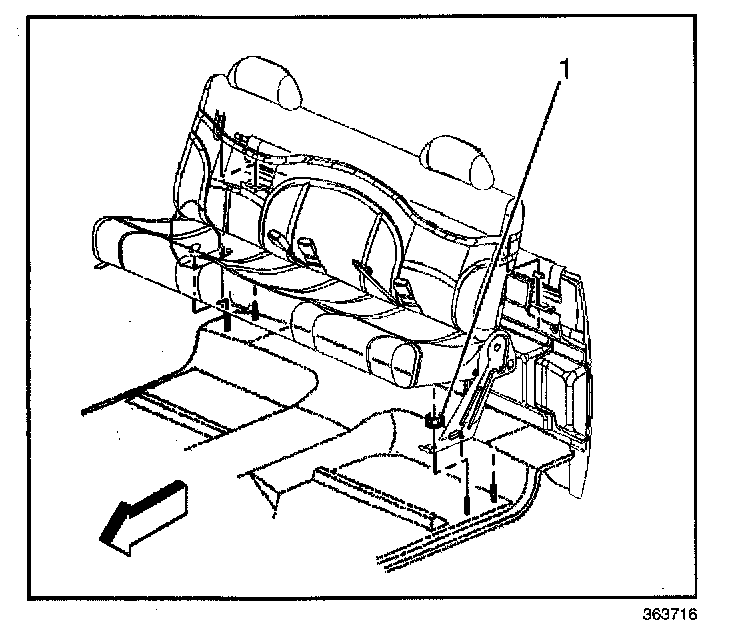

3. Install the seat retaining bolts (1).

Tighten
Tighten the seat retaining bolts to 55 N.m (41 lb ft).

4. Fold the seat down.
5. Pull the seat belt buckles through the seat cushion and seat back.
