12. Engine Coolant Air Bleed Pipe Removal

Coolant Air Bleed Pipe Removal

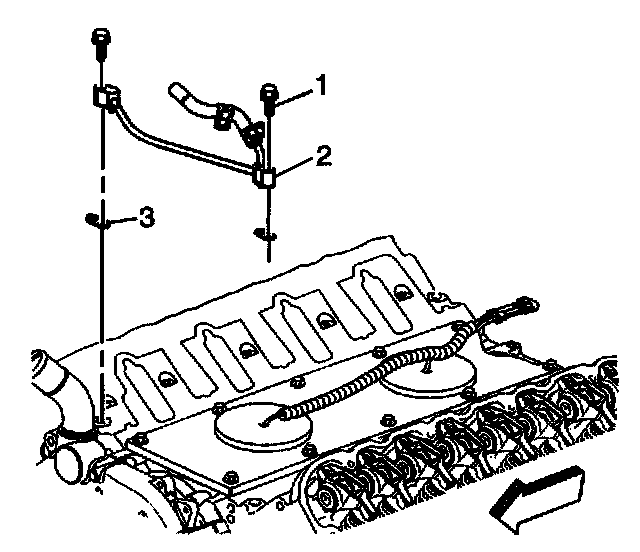

1. Remove the engine coolant air bleed pipe bolts (1).
2. Remove the pipe (2) and gaskets (3).

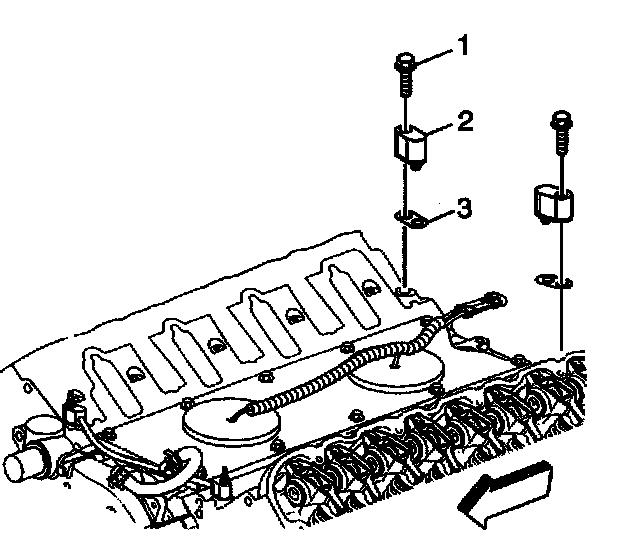

3. Remove the engine coolant air bleed pipe cover bolts (1) and covers (2).

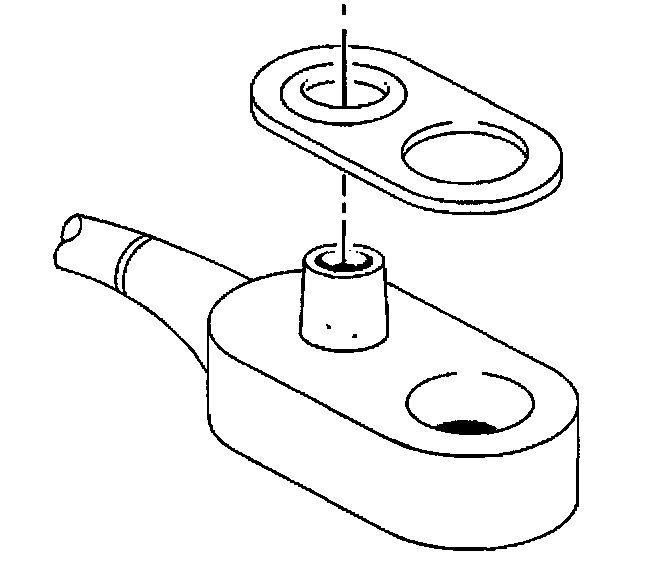

4. Remove the gaskets from the pipe and covers.
5. Discard the gaskets.

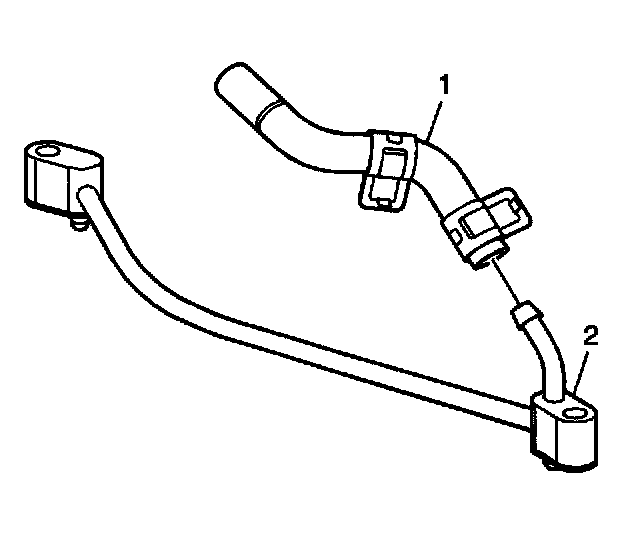

6. Remove the hose (1) from the pipe (2).
