On-Vehicle Service

AUTOMATIC TRANSMISSION - 4L60-E

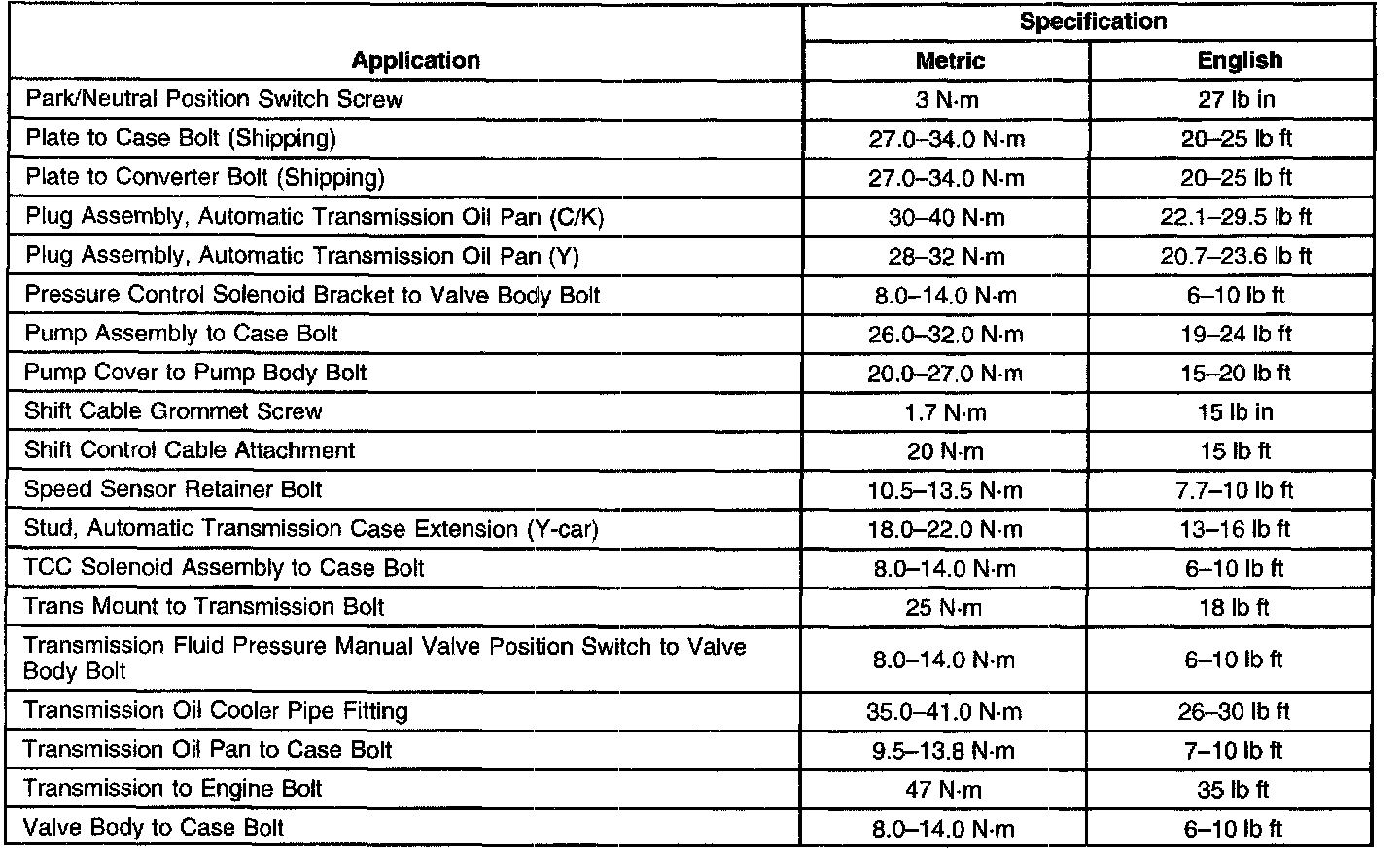

Fastener Tightening Specifications









Transmission General Specifications

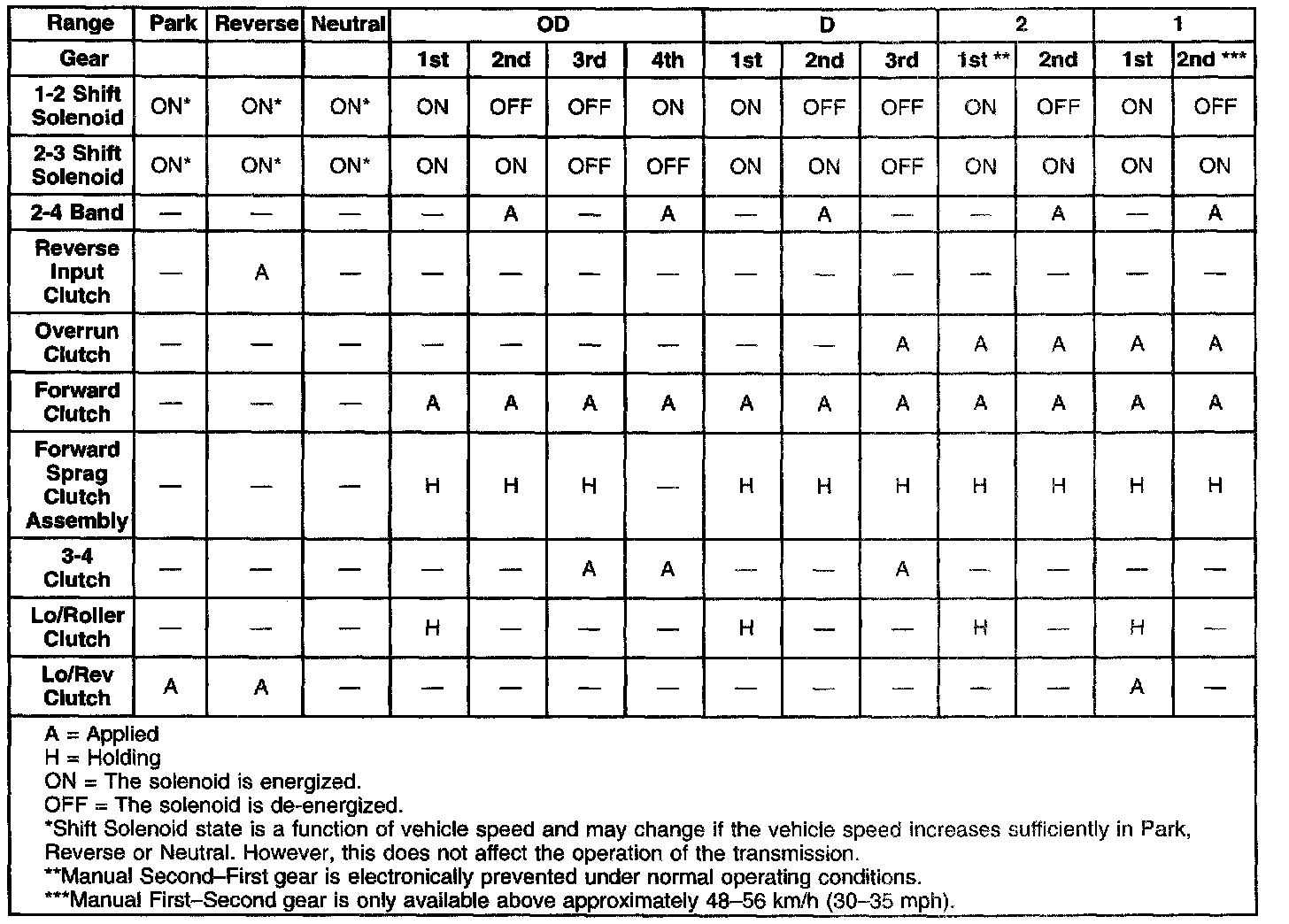

Range Reference






Shift Solenoid Valve State and Gear Ratio

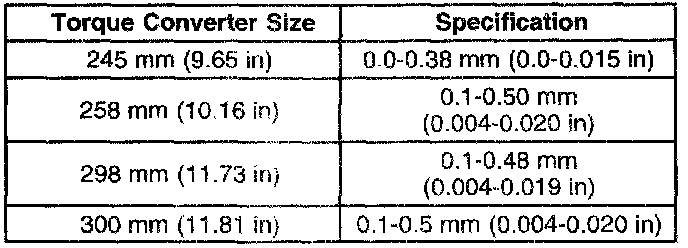

Torque Converter End Play Specifications






Shift Speed
