Ignition Coil: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.

CAUTION: Refer to Vehicle Lifting Caution in Service Precautions.

2. Raise the vehicle.

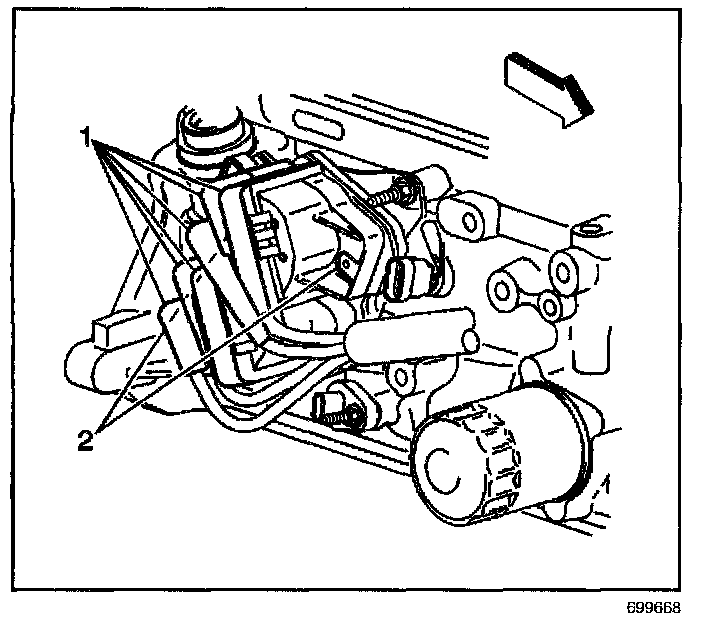

3. Remove the spark plug wires (1) and ignition control module (ICM) electrical connectors.
4. Remove the 2 bolts from the affected ignition coil (2).
5. Remove the ignition coil from the ICM.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

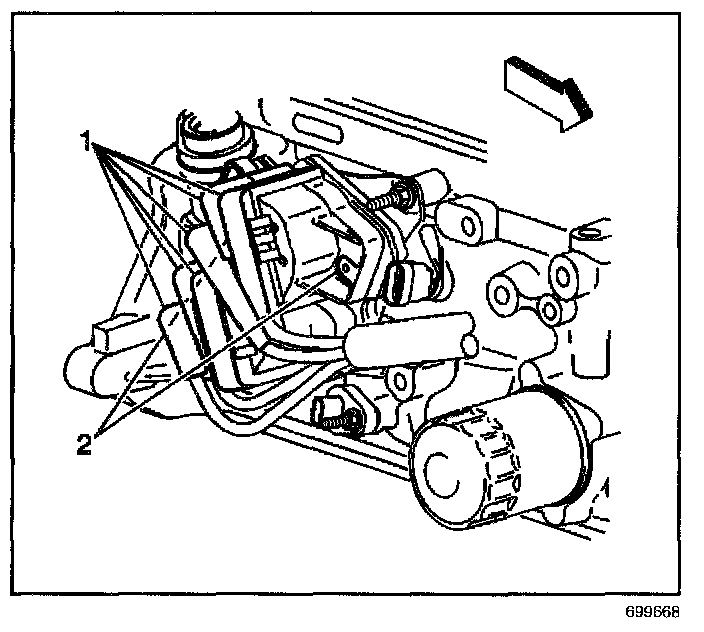

1. Install the ignition coil (2) to the ICM.
2. Install the spark plug wires (1) and ICM electrical connectors.

Tighten
Tighten the ignition coil bolts to 4 N.m (35 lb in).

3. Lower the vehicle.
4. Connect the negative battery cable.
