Interior Moulding / Trim: Service and Repair

Seat Belt Retractor Trim Cover Replacement - Rear

Removal Procedure





1. Remove the rear seat belt. Refer to Seat Belt Retractor Replacement - Rear.

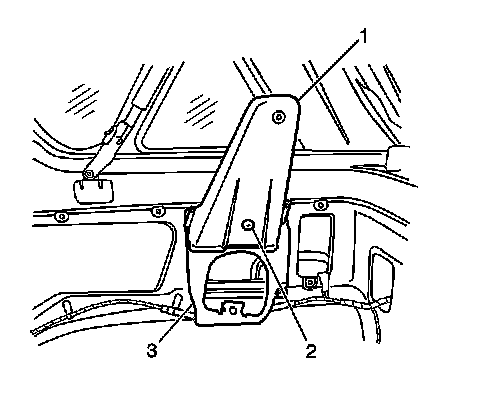

2. Remove the following components from the rear seat shoulder guide bracket (3):

1. The plastic retainer (2)
2. The rear seat shoulder belt guide bracket cover (1)




Installation Procedure





1. Install the rear seat shoulder belt guide bracket cover (1) to the rear seat shoulder guide bracket (3). Secure the bracket cover with the plastic retainer (2).
2. Install the rear seat belt. Refer to Seat Belt Retractor Replacement - Rear.
