Home >> Chevrolet >> 2002 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tail Lamp >> LH

LH

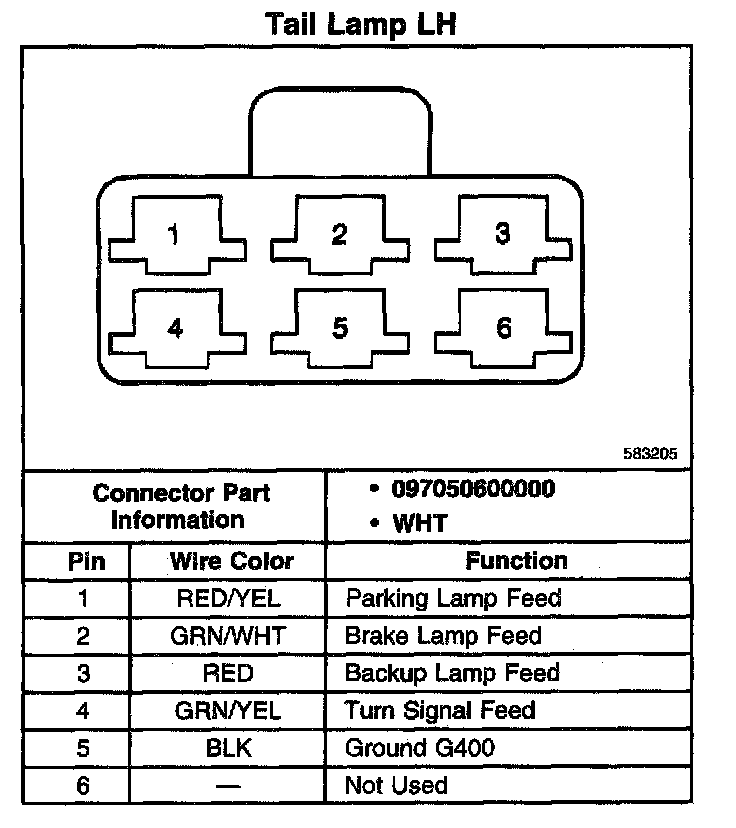

Tail Lamp LH:
