Ignition Coil: Diagrams

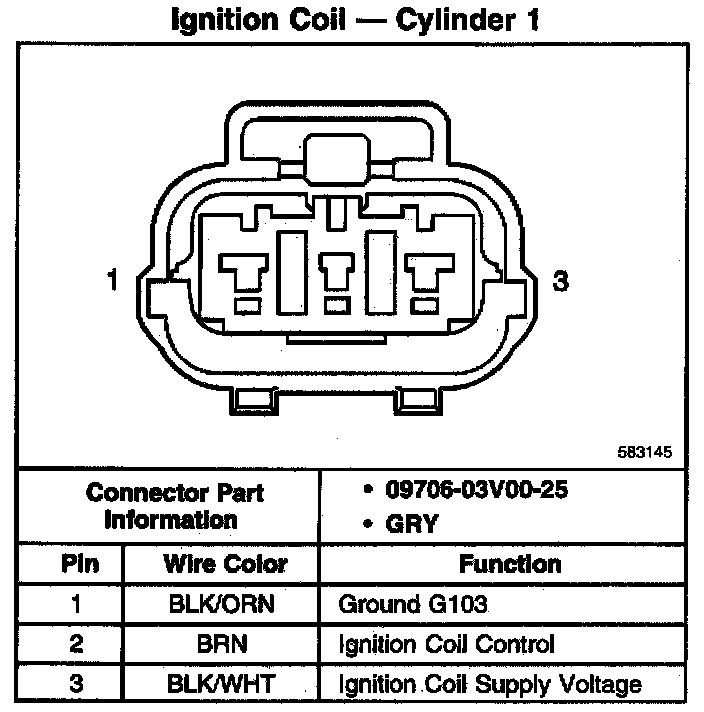

Ignition Coil-Cylinder 1:




Ignition Coil-Cylinder 2:

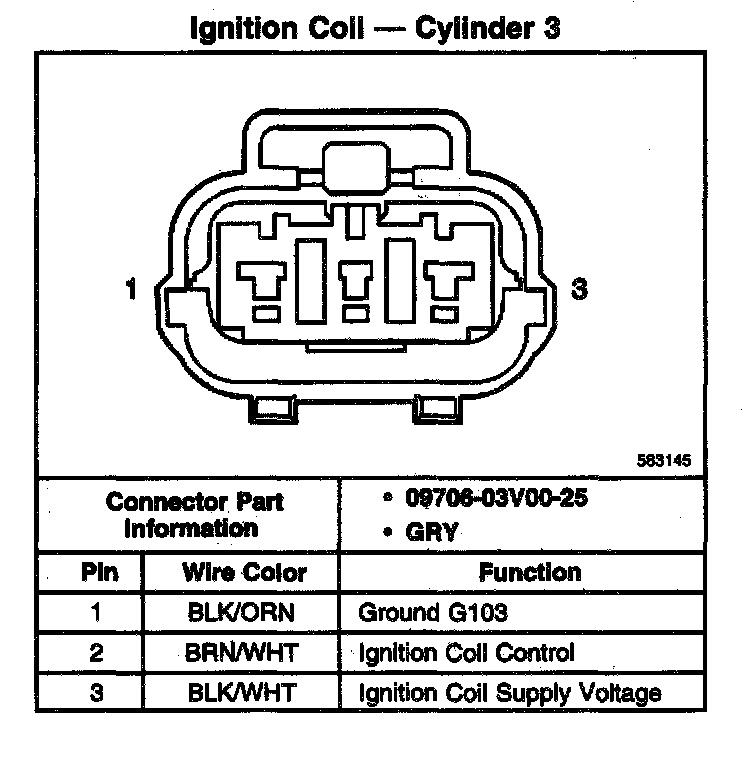

Ignition Coil-Cylinder 3:

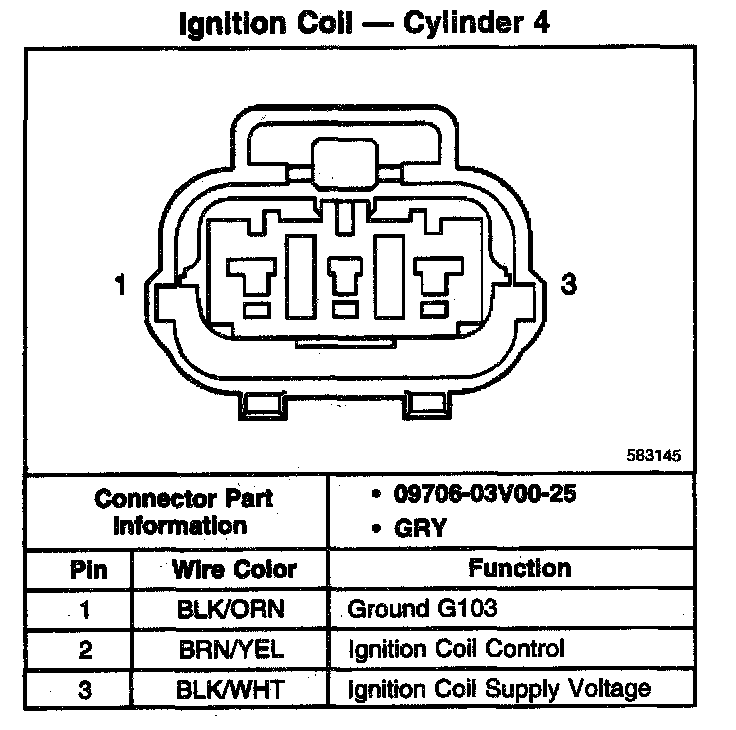

Ignition Coil-Cylinder 4:
