Axle Identification

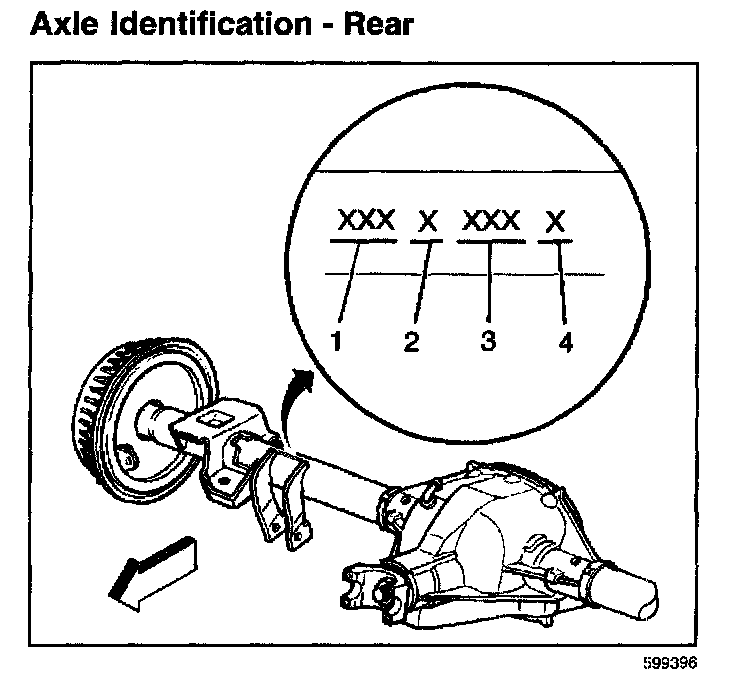

Axle Identification - Rear:

Rear axle identification information is stamped on the right side axle tube near the differential housing. The information includes the following:
- Broadcast code (1)
- Build Source (2)
- Build date (3) (Julian date)
- Shift built (4)

In order to verify reports made on the rear axle assembly, include full code letters and build date numbers.
