Blower Motor Switch

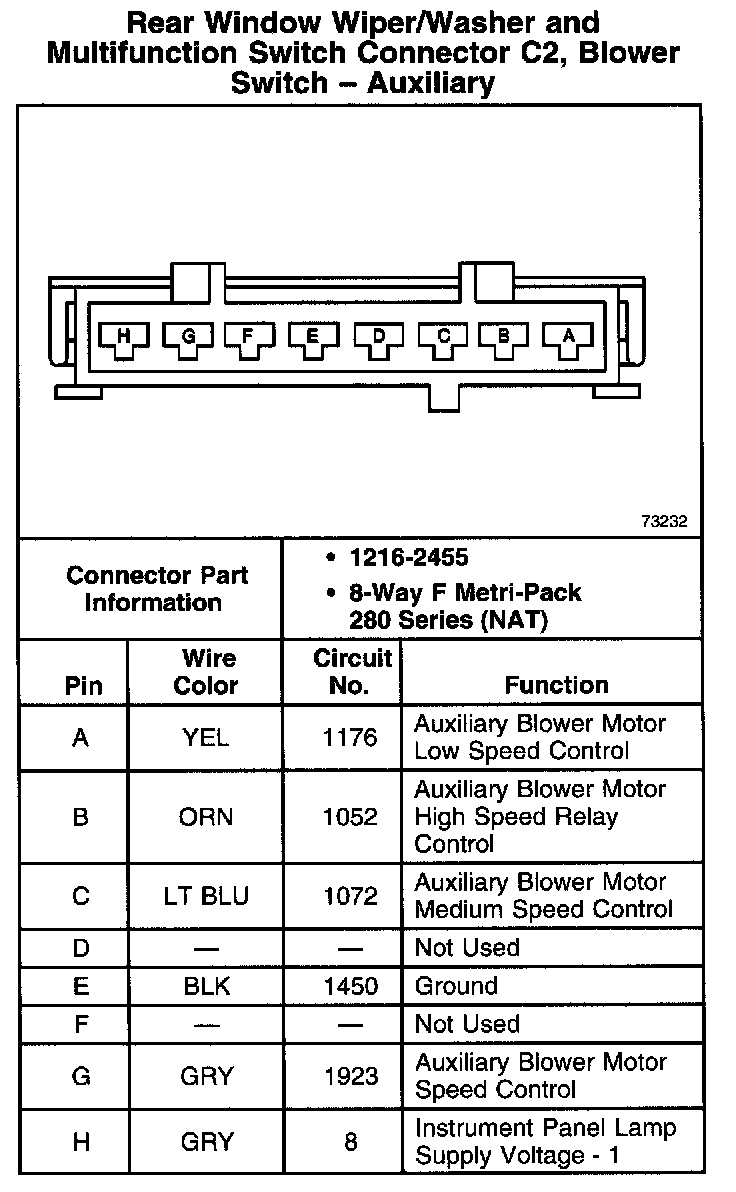

Rear Window Wiper/Washer And Multifunction Switch Connector C2, Blower Switch - Auxiliary:
