Cellular Phone
Cellular Phone

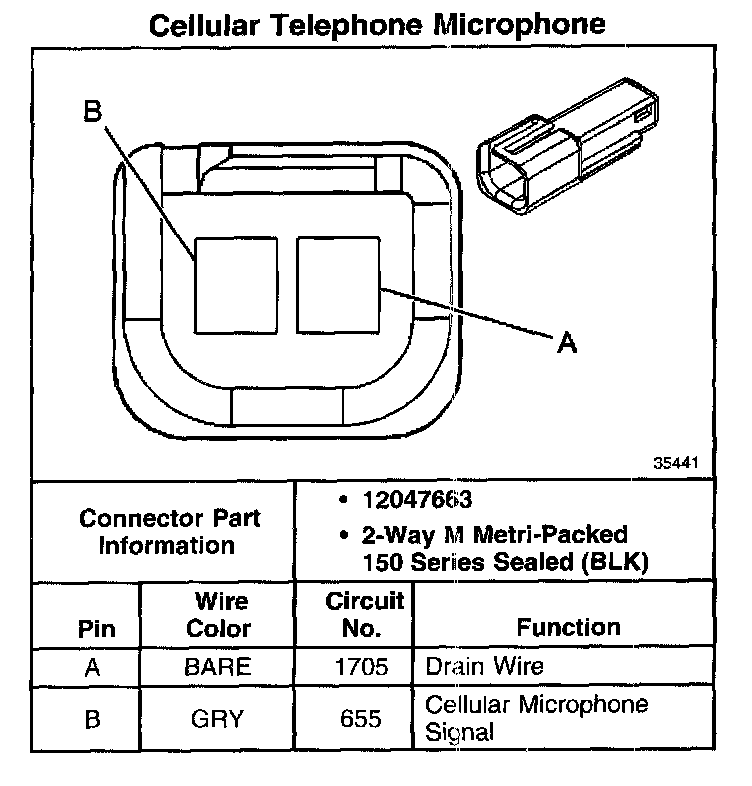

Cellular Telephone Microphone:

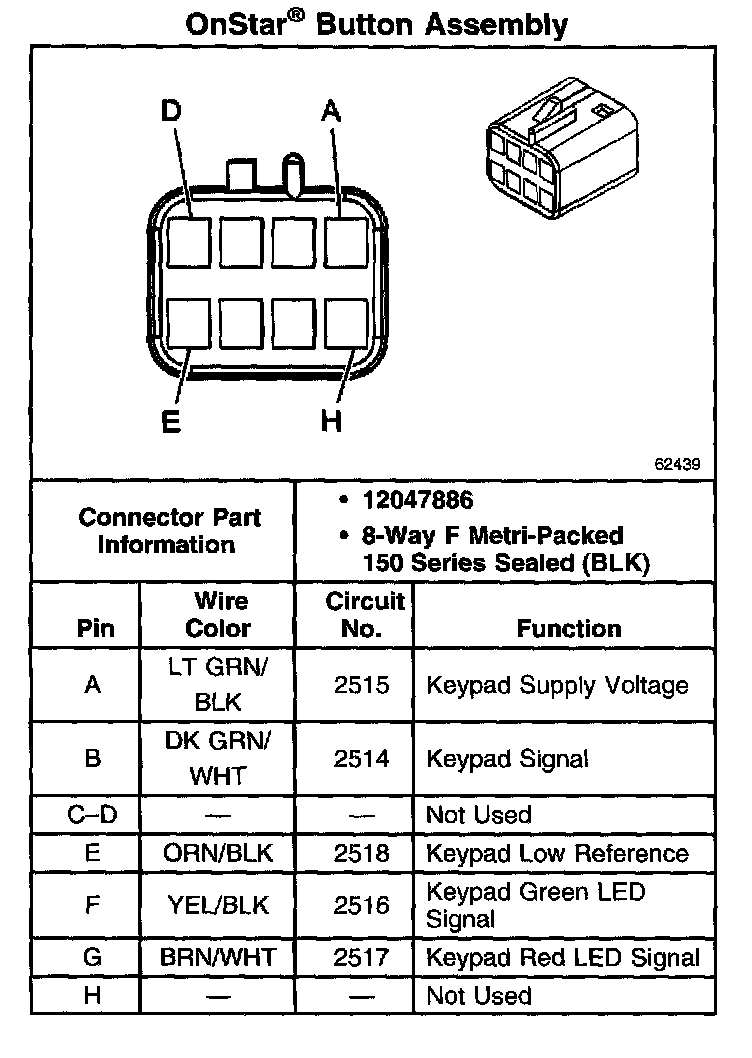

OnStar(R) Button Assembly:

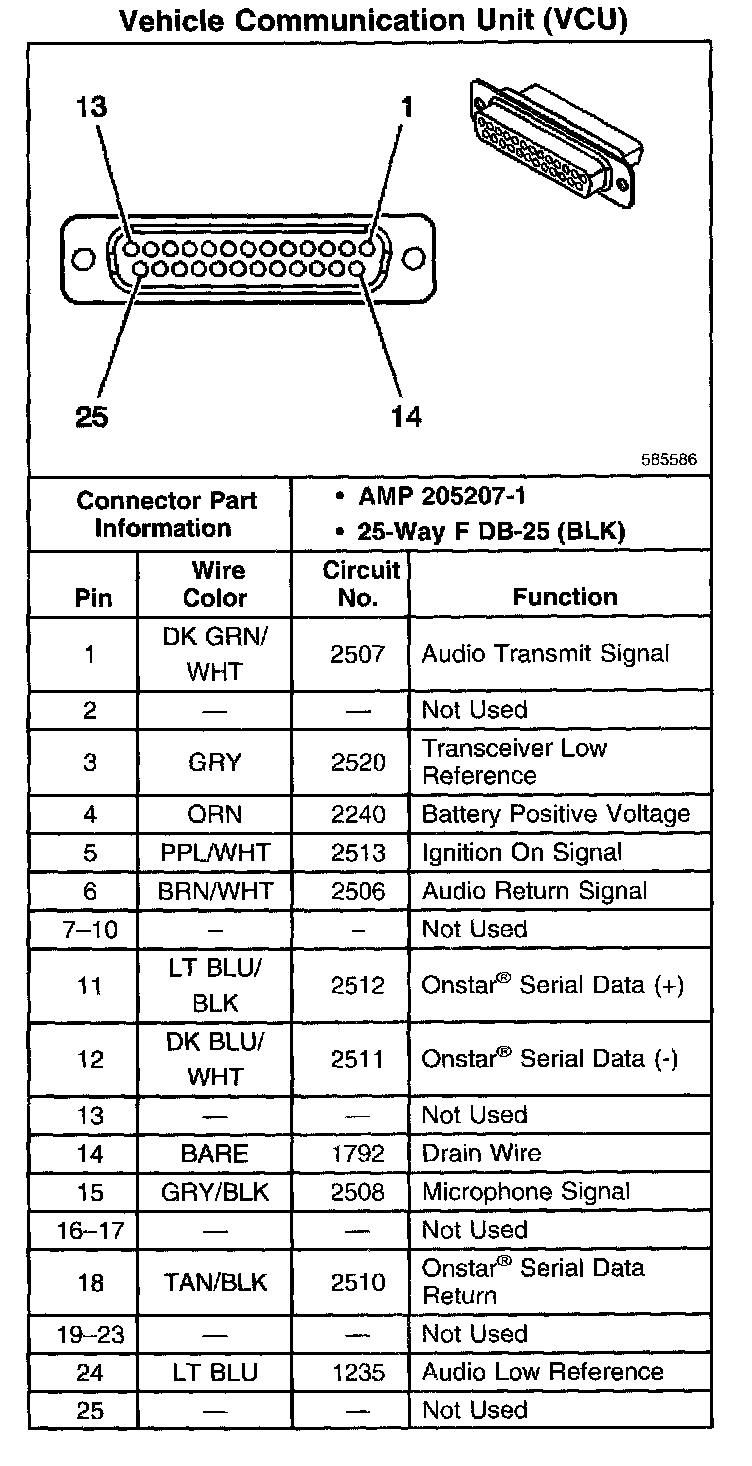

Vehicle Communication Unit (VCU):

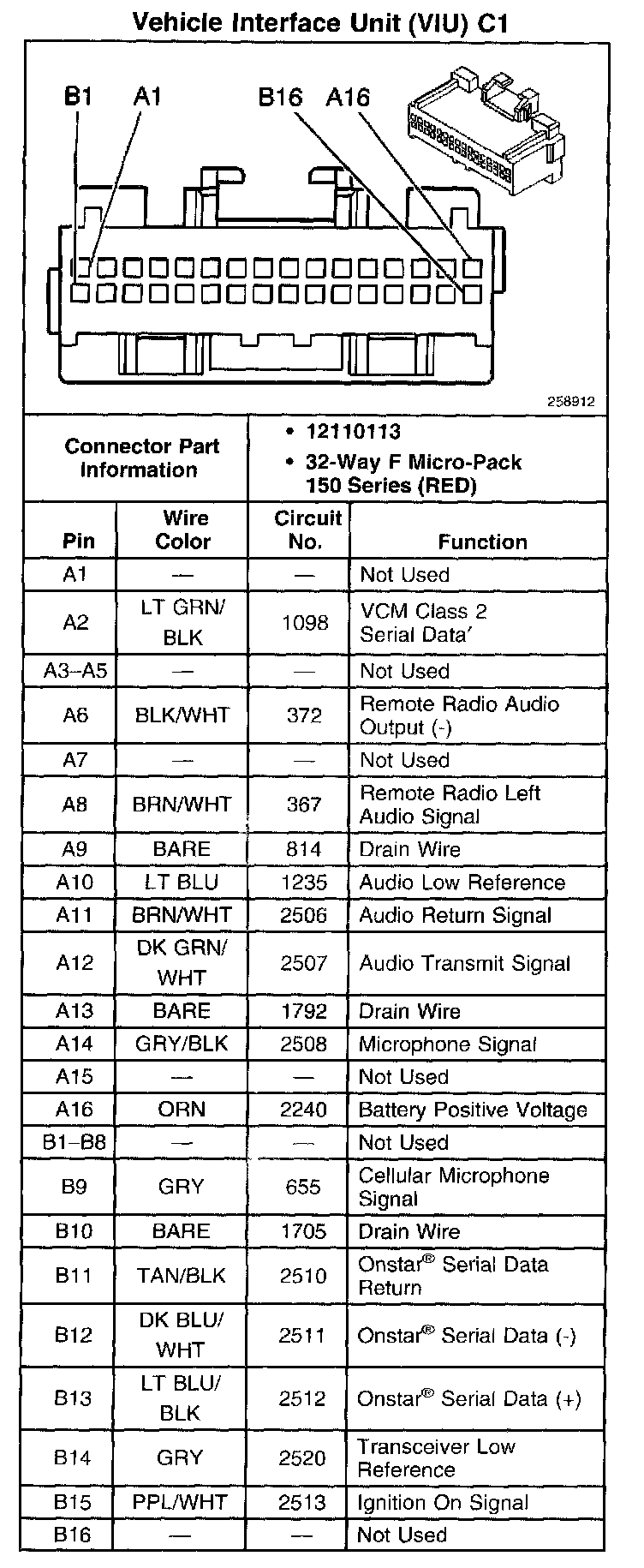

Vehicle Interface Unit (VIU) C1:

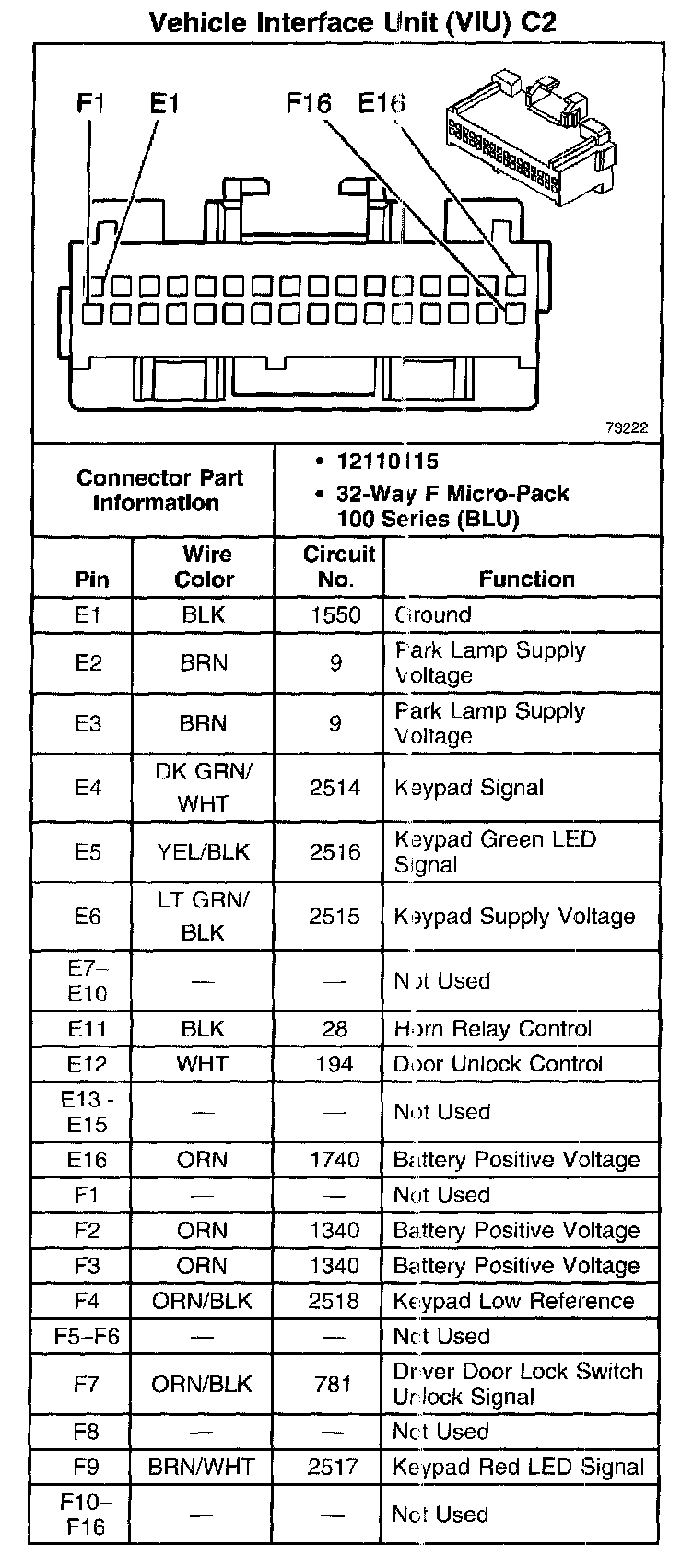

Vehicle Interface Unit (VIU) C2:
