Power Seat Motor
Power Seat Motor

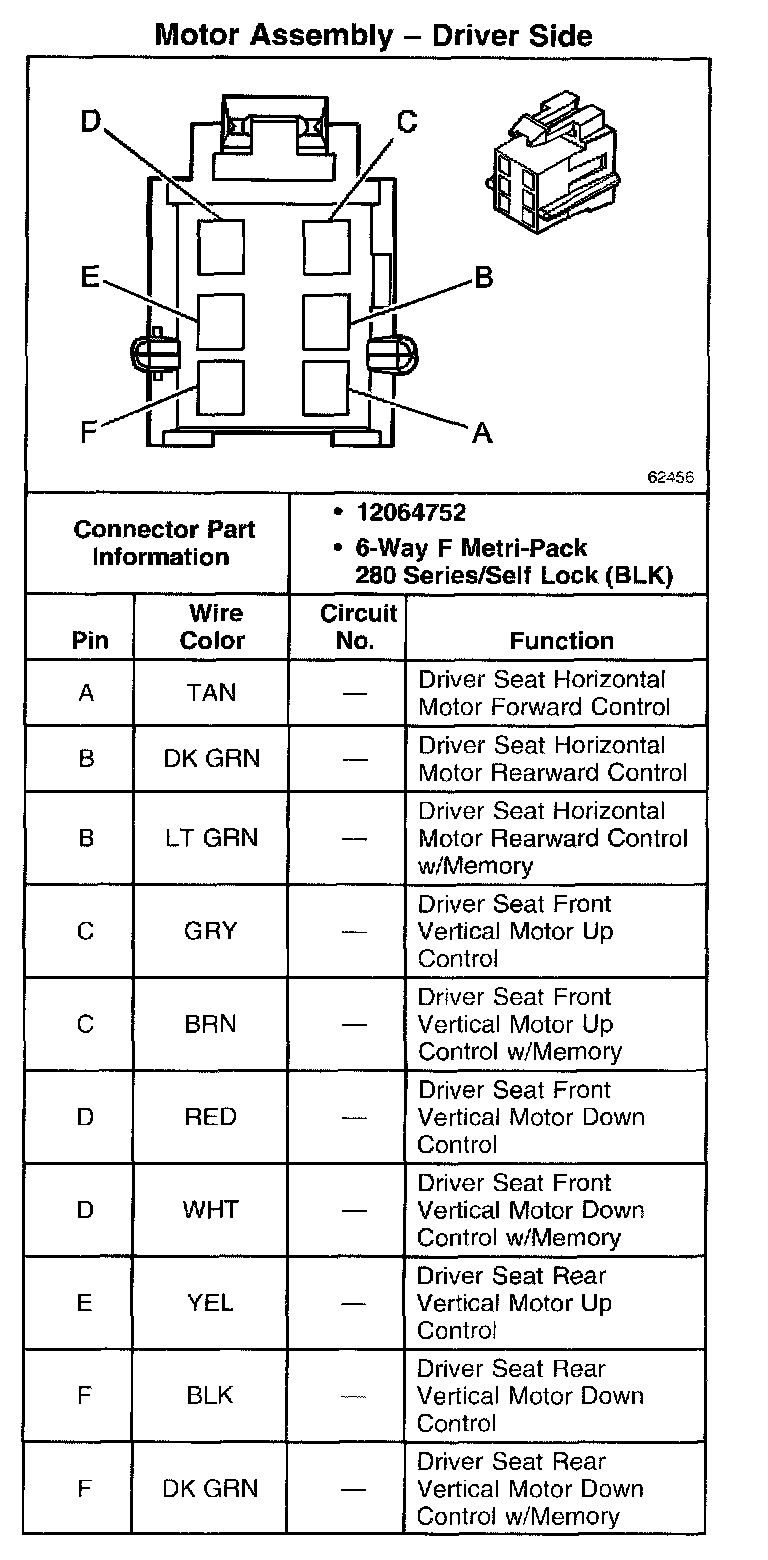

Motor Assembly-Driver Side:

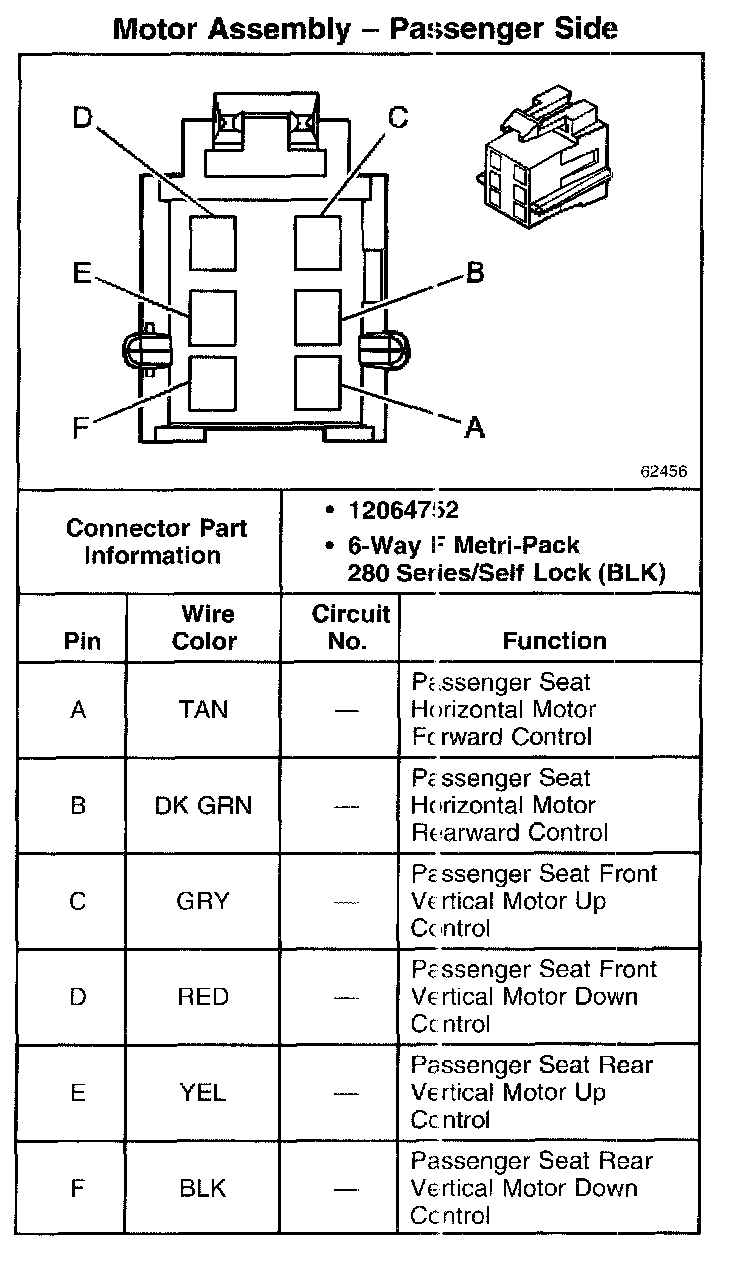

Motor Assembly - Passenger Side:

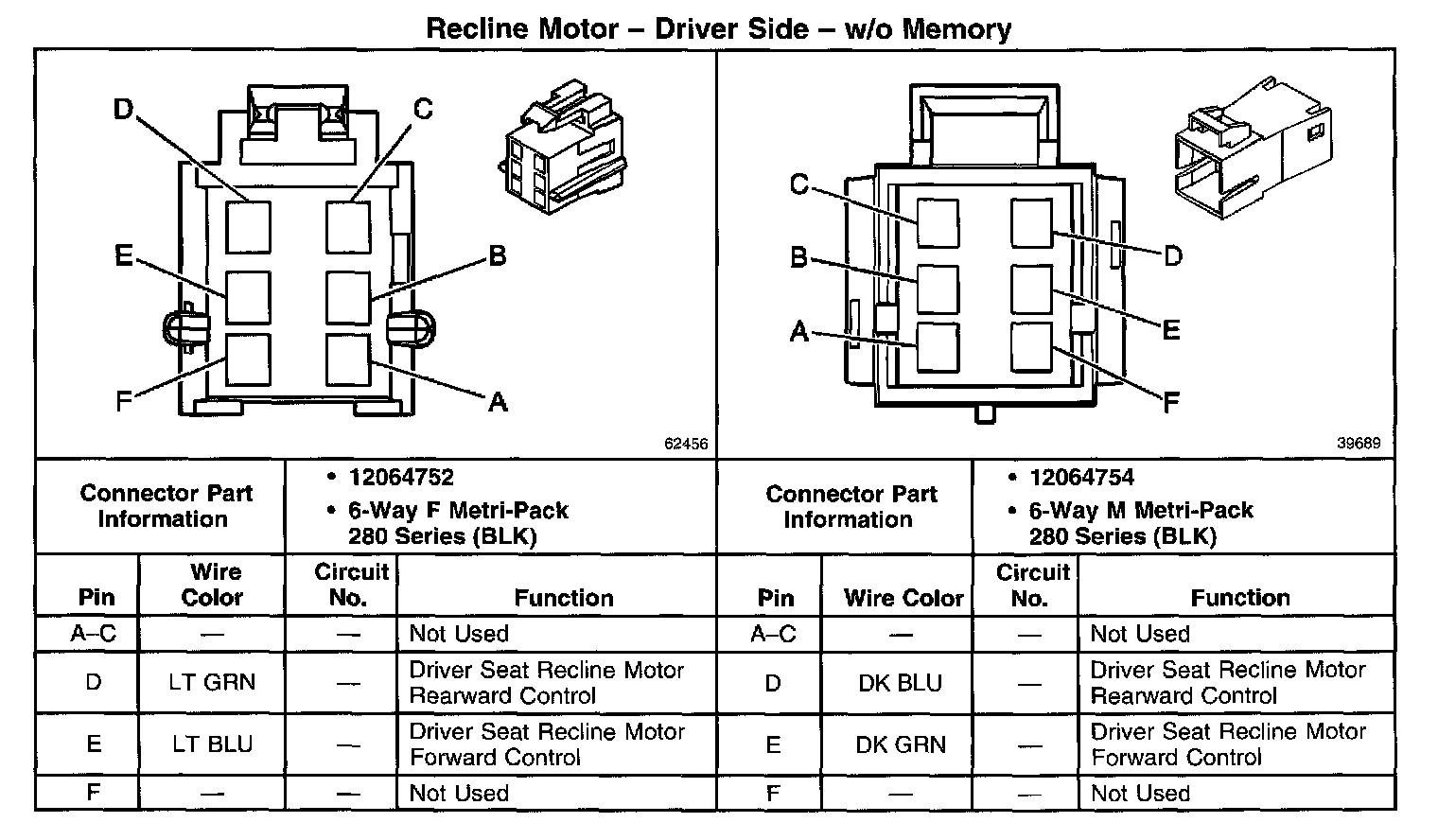

Recline Motor - Driver Side - W/O Memory:

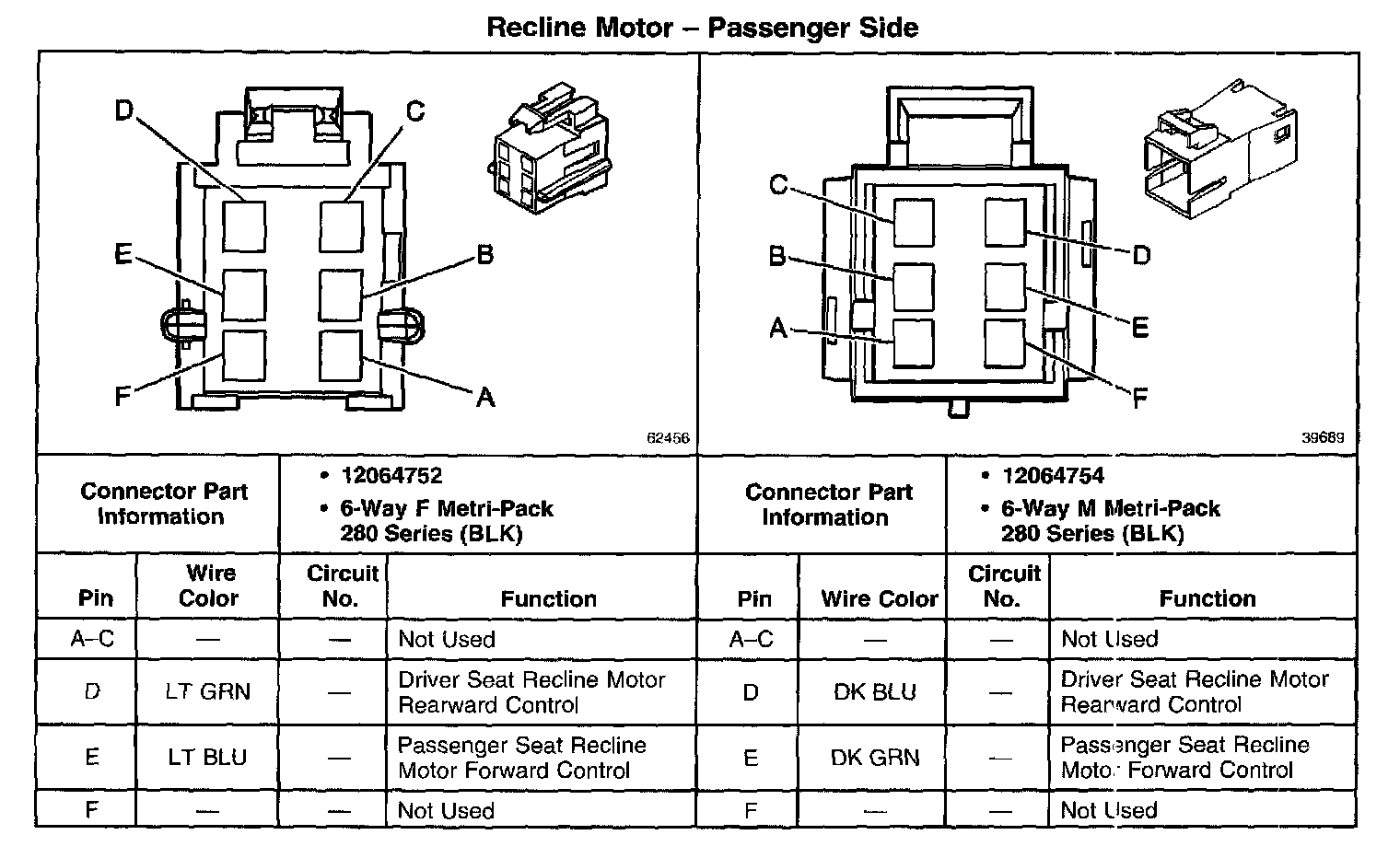

Recline Motor-Passenger Side:
