Power Seat Motor Position Sensor
Power Seat Motor Position Sensor

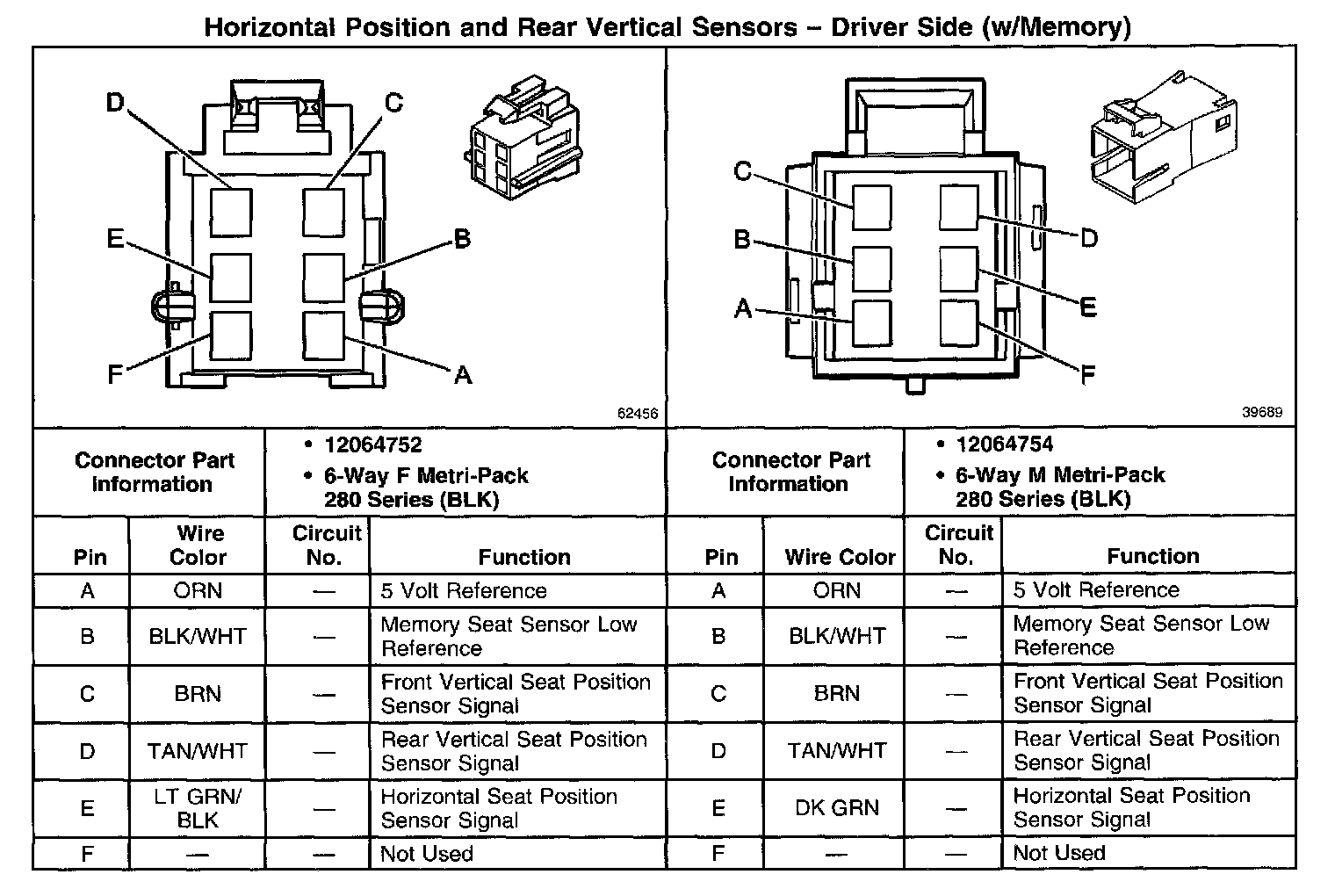

Horizontal Position And Rear Vertical Sensors - Driver Side (W/Memory):

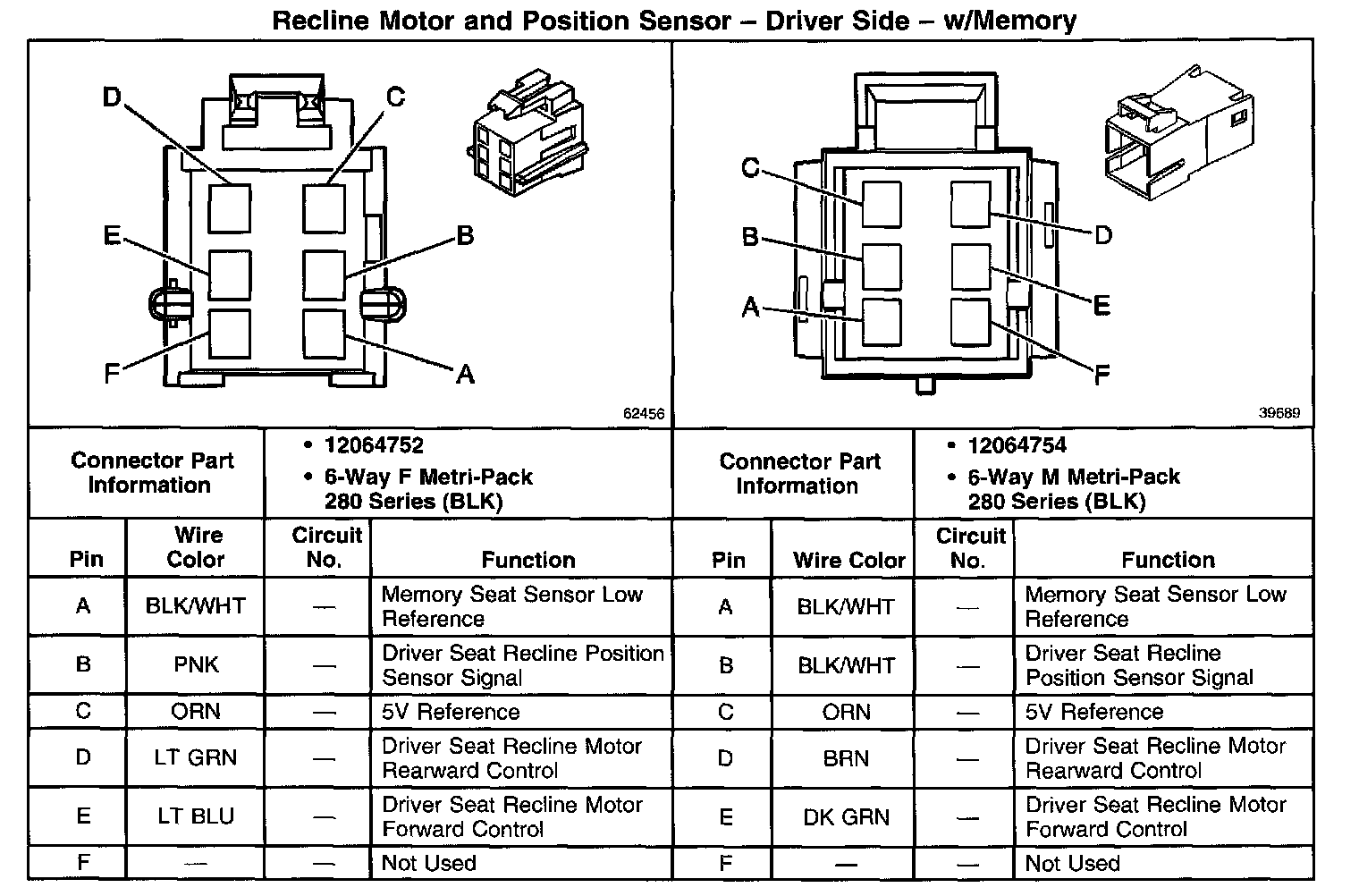

Recline Motor And Position Sensor - Driver Side - W/Memory:
