Power Sliding Door Motor
Power Sliding Door Motor

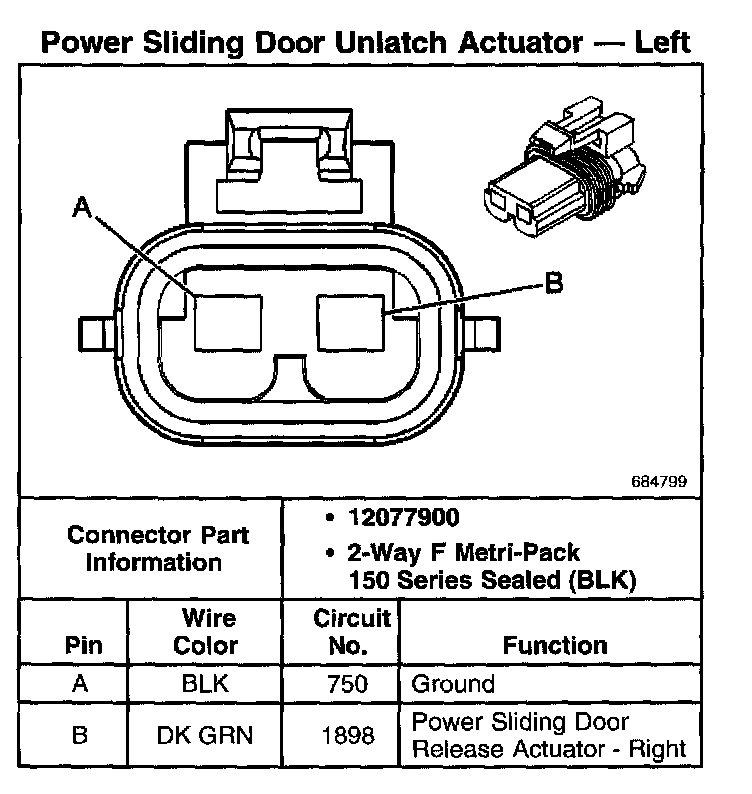

Power Sliding Door Unlatch Actuator-Left:
Power Sliding Door Unlatch Actuator:

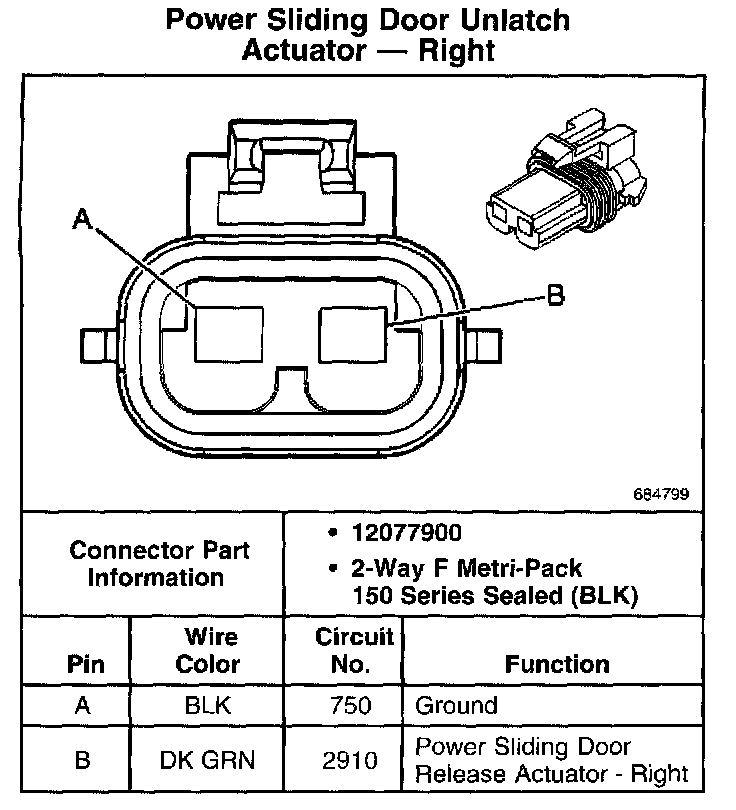

Power Sliding Door Unlatch Actuator-Right:
