Power Sliding Door Switch
>>
Power Sliding Door Open/Close Switch
Power Sliding Door Open/Close Switch

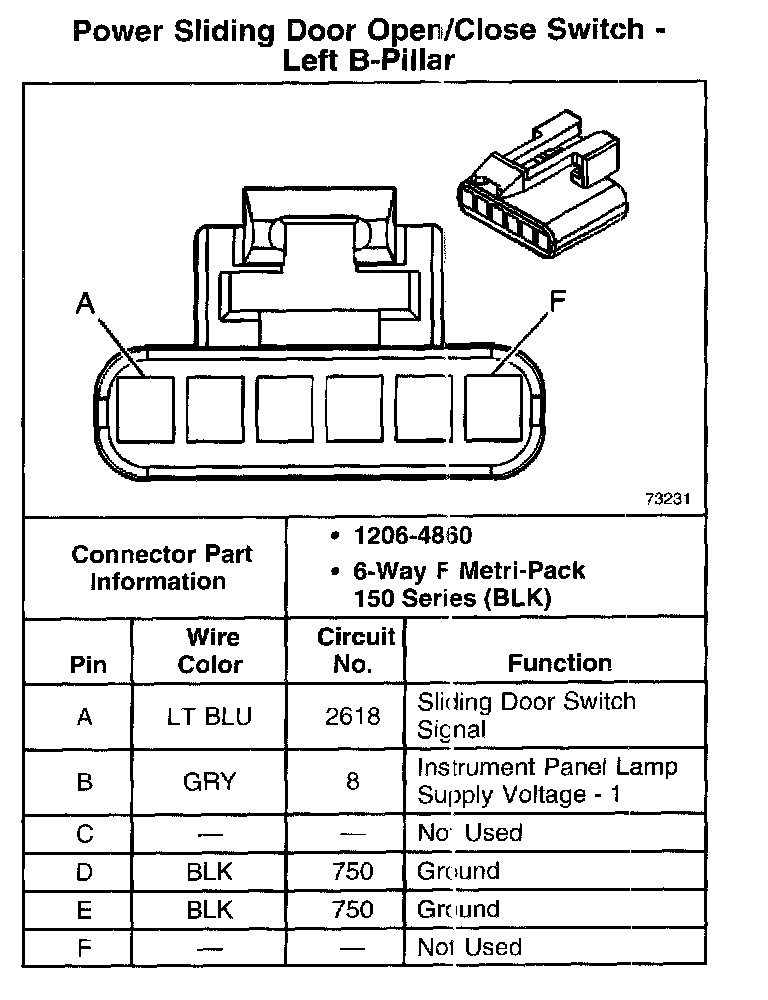

Power Sliding Door Open/Close Switch-Left B-Pillar:

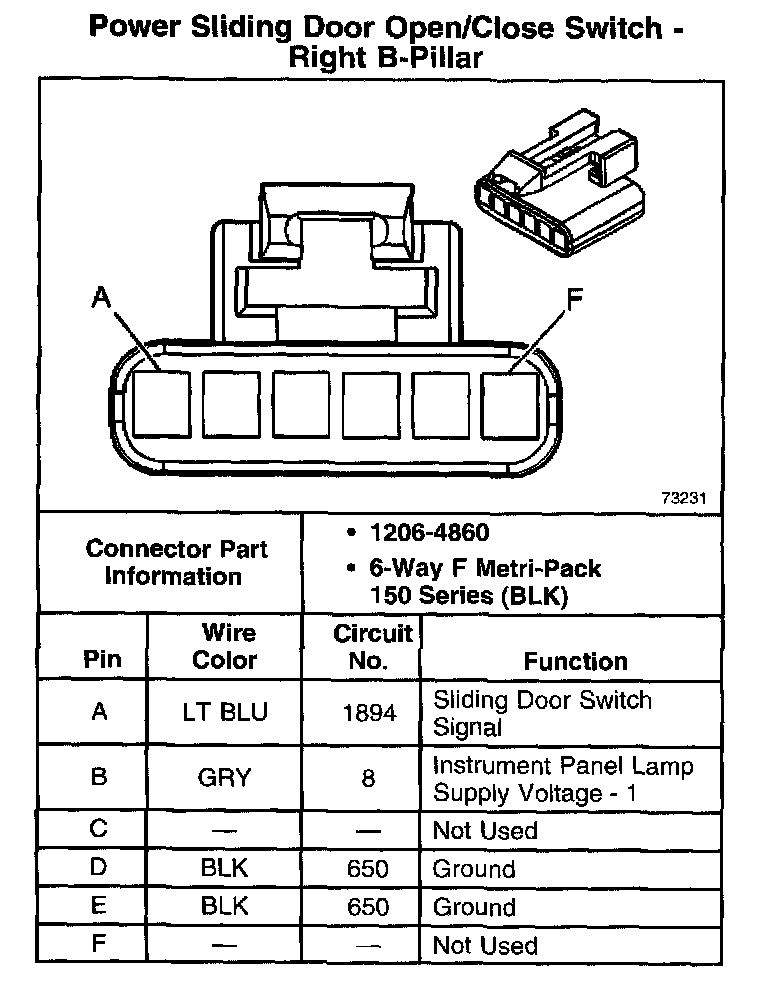

Power Sliding Door Open/Close Switch-Right B-Pillar:
