Power Trunk / Liftgate Lock Actuator
Power Trunk / Liftgate Lock Actuator

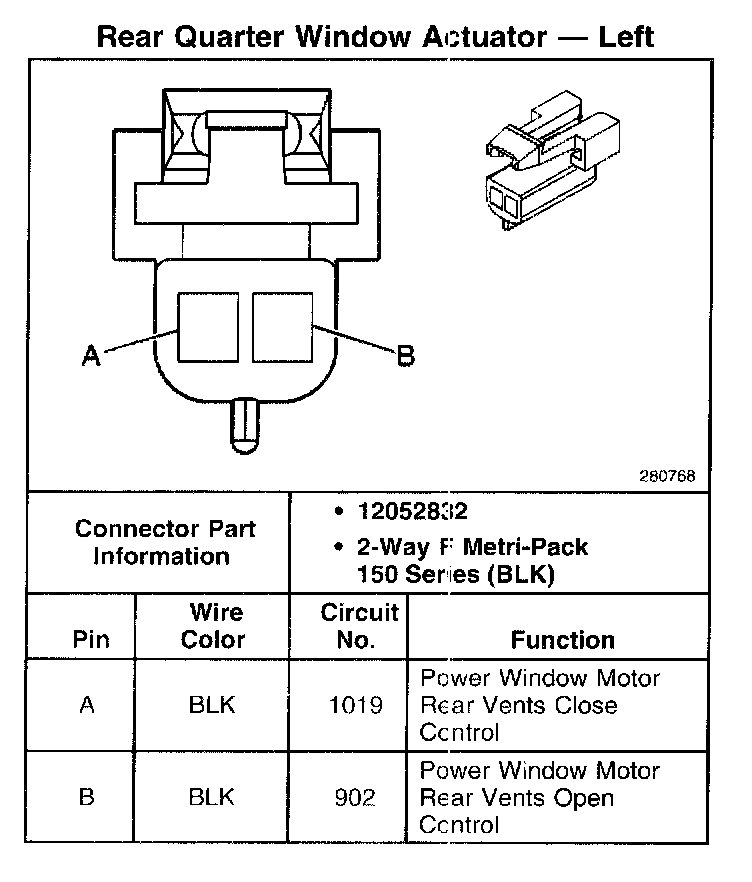

Rear Quarter Window Aituator-Left:

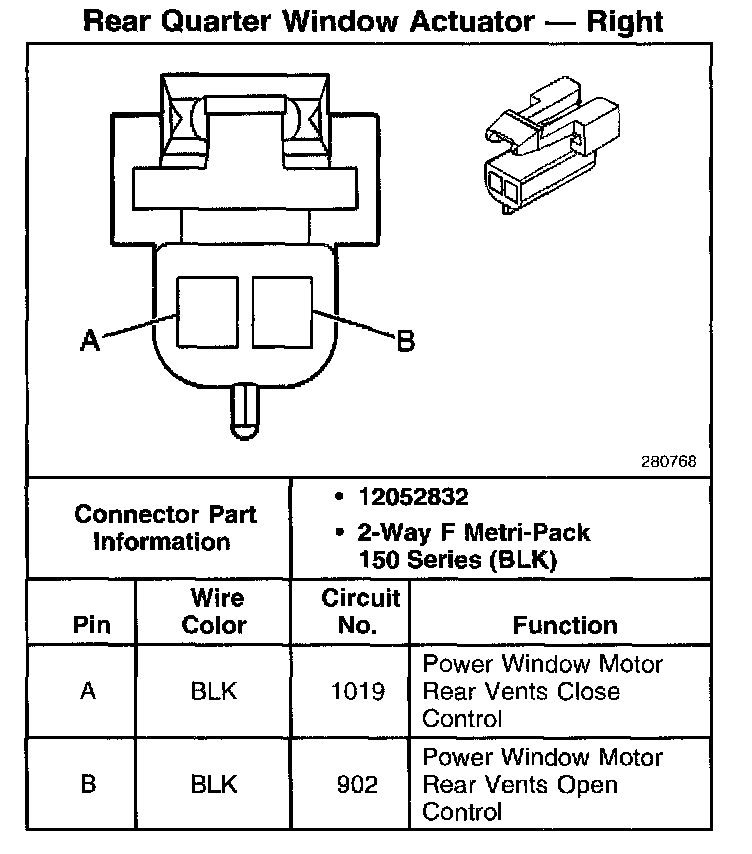

Rear Quarter Window Actuator-Right:
Liftgate Door Lock Connector C2-Actuator:
