Fuse Block - Underhood

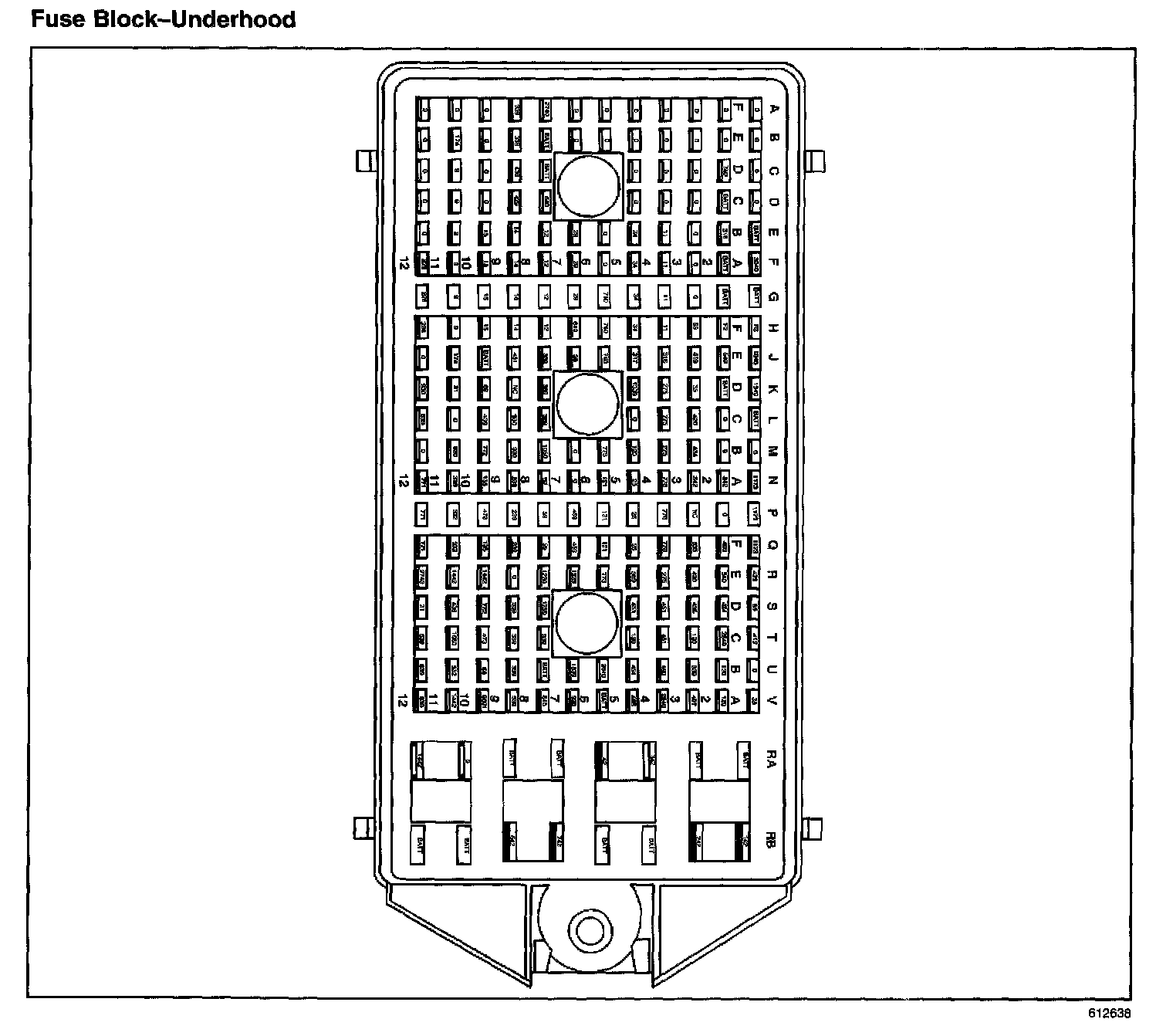

Fuse Block - Underhood:

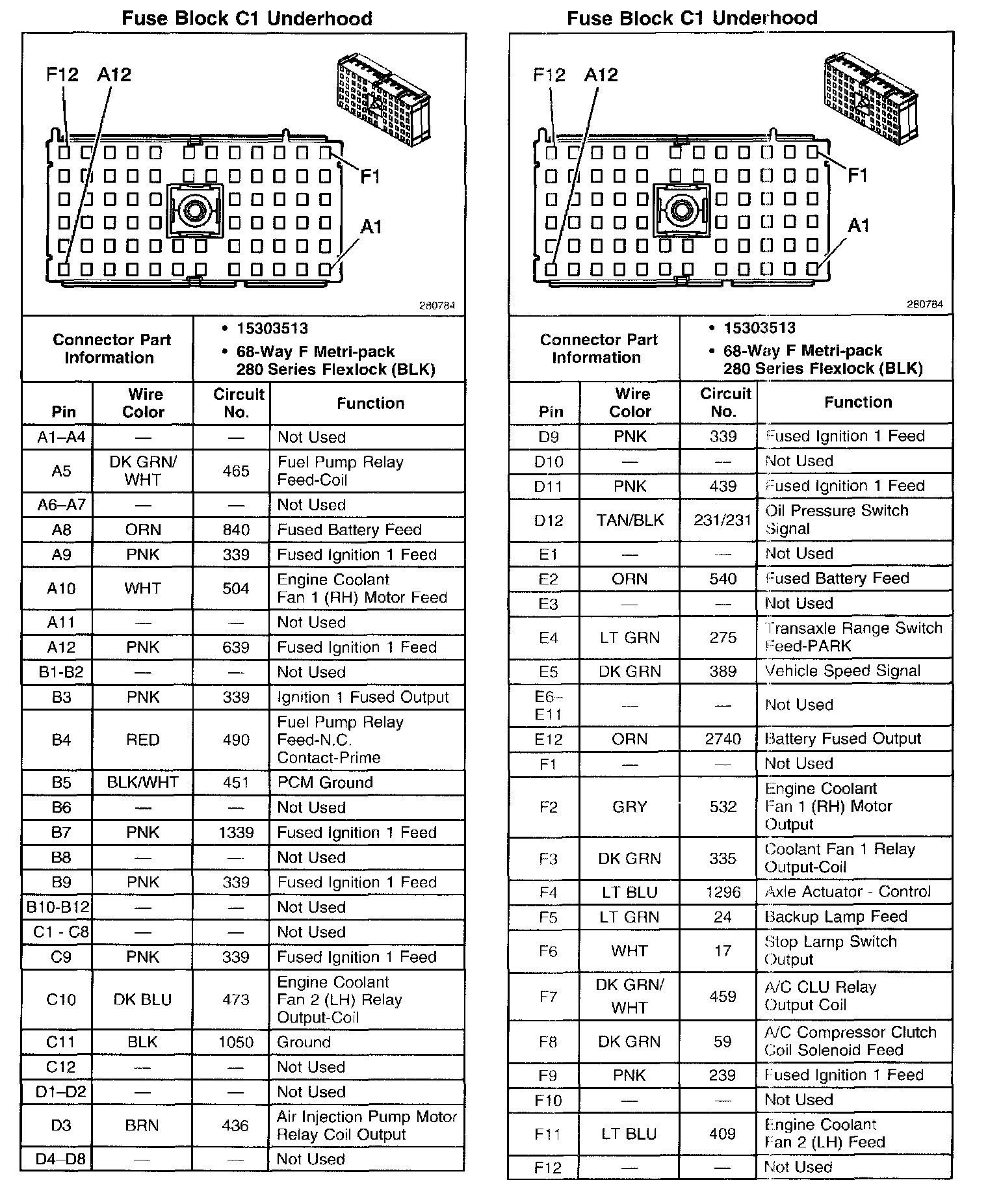

Fuse Block C1 Underhood:

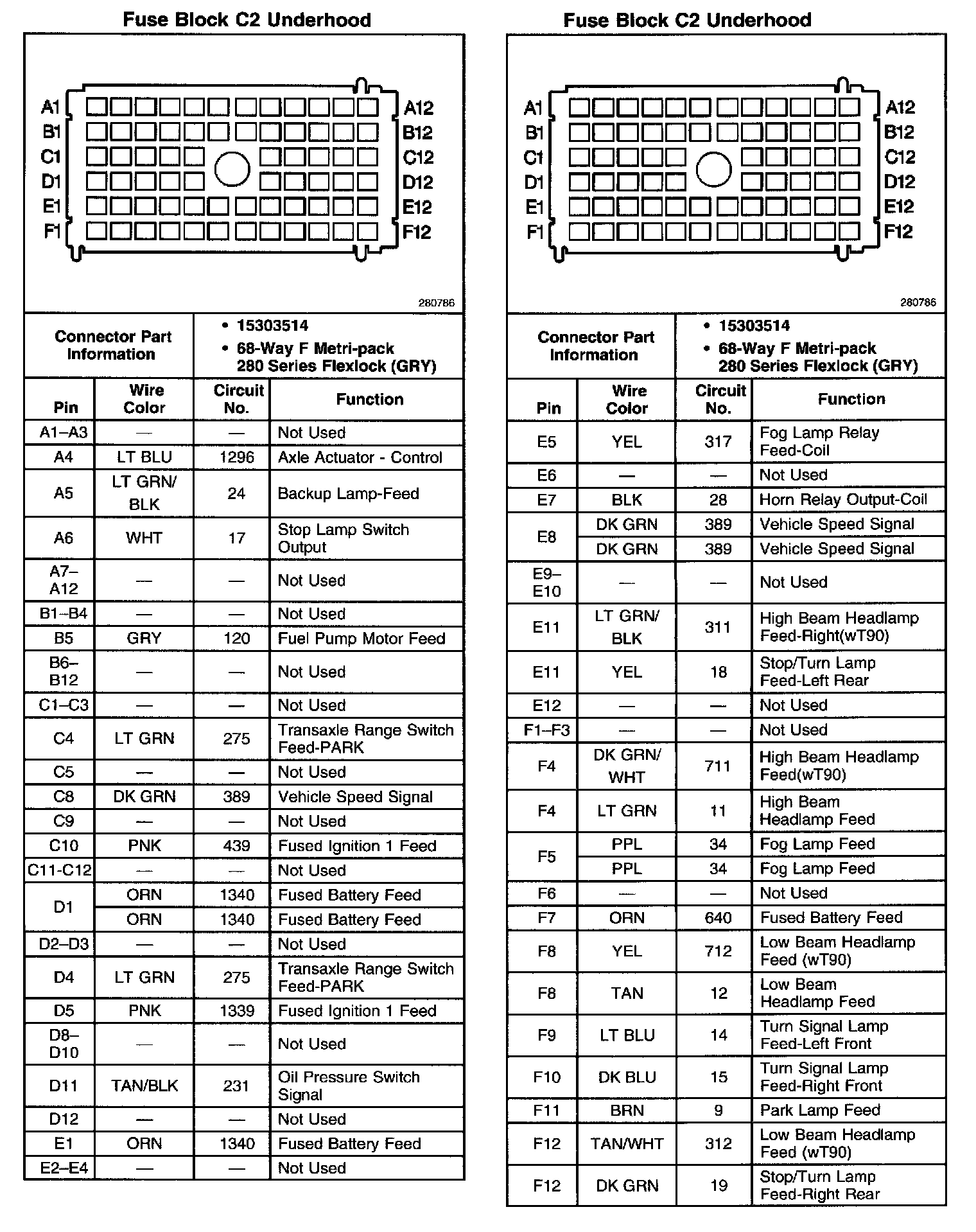

Fuse Block C2 Underhood:

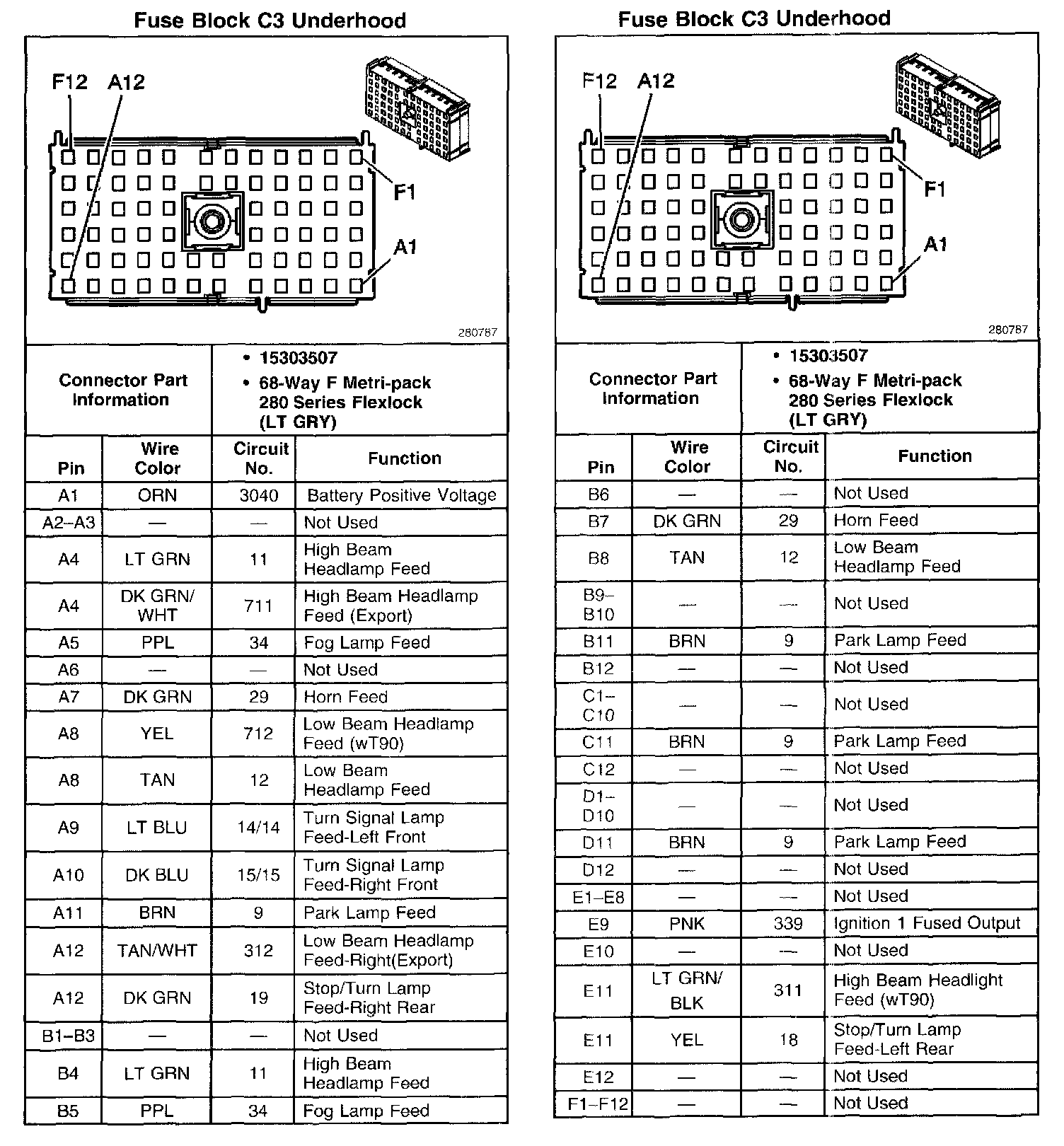

Fuse Block C3 Underhood:

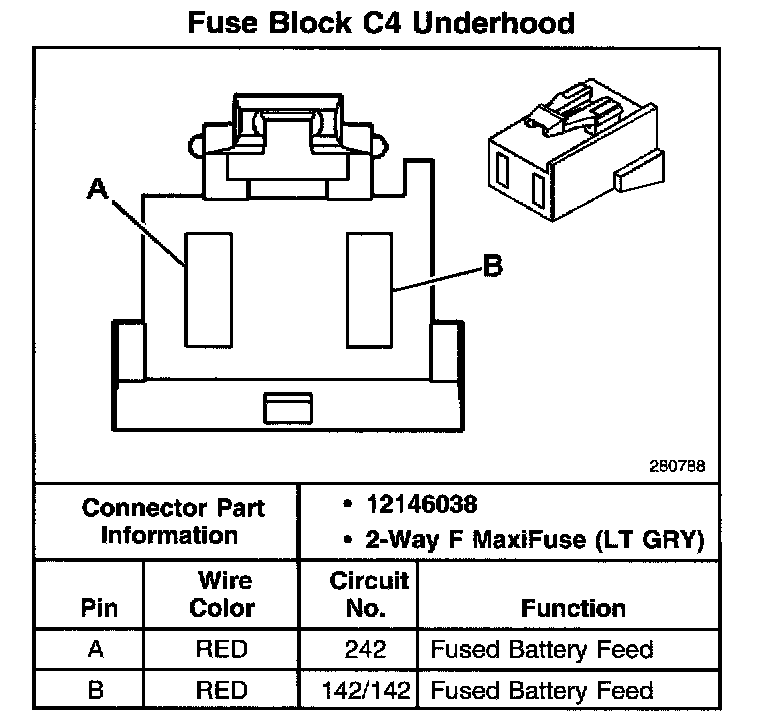

Fuse Block C4 Underhood:




Fuse Block C5 Underhood:

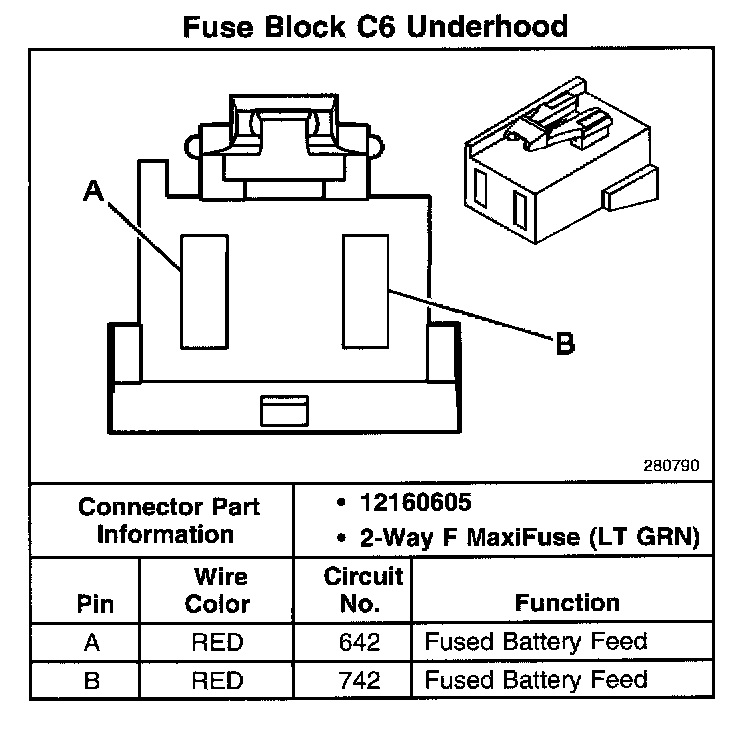

Fuse Block C6 Underhood:
