Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2002
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Switch
Wiper Switch

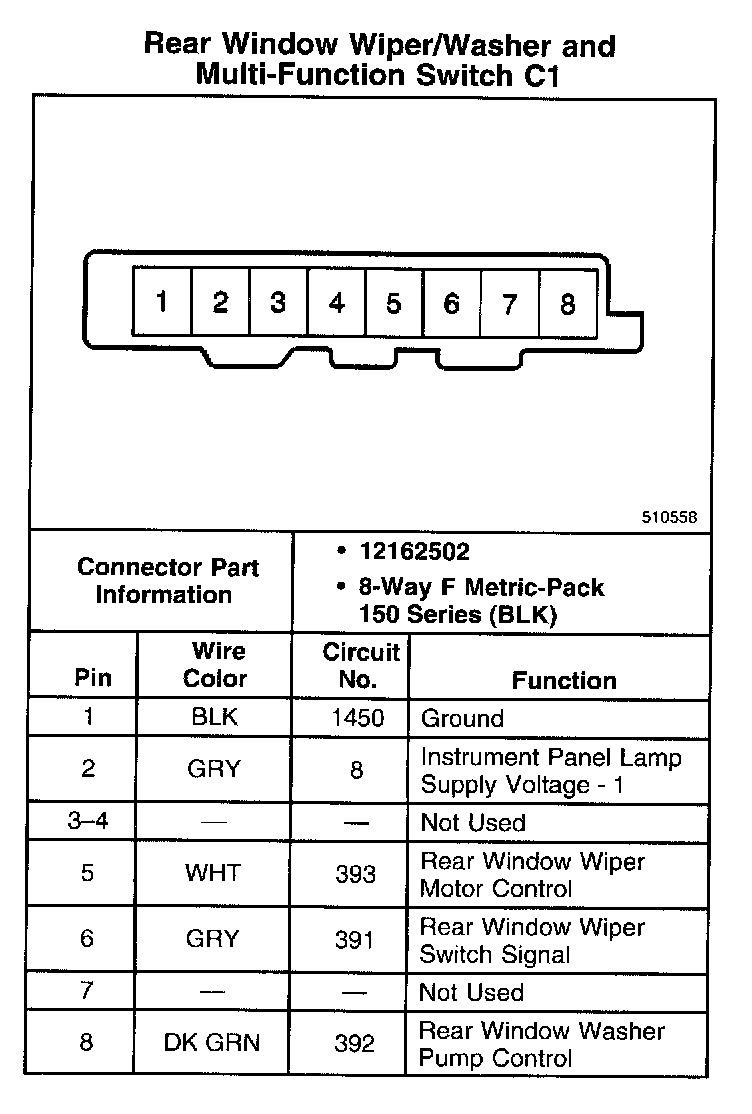

Rear Window Wiper/Washer And Multi-Function Switch C1:
