Antitheft and Alarm Systems
Antitheft and Alarm Systems

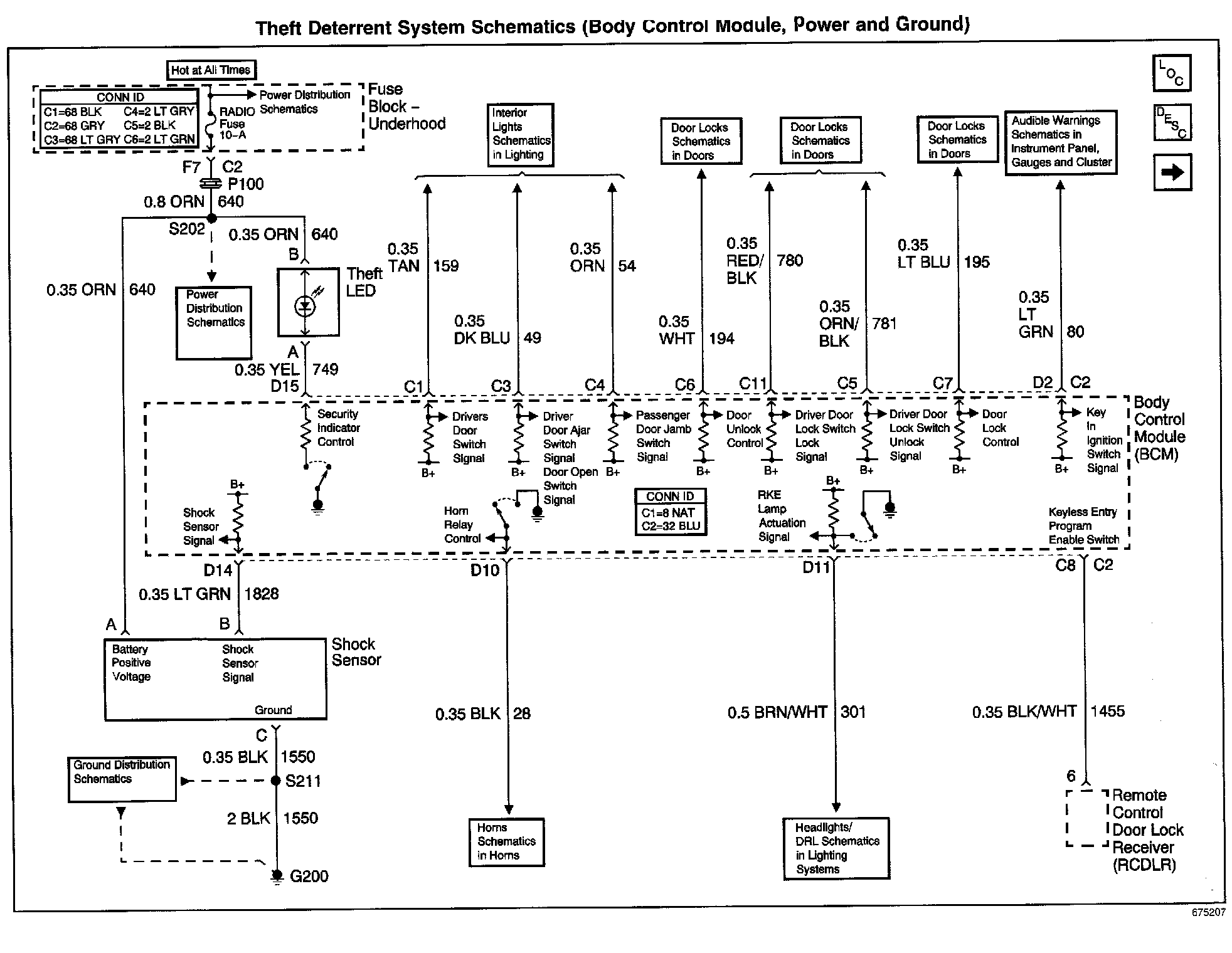

Theft Deterrent System Schematics: Body Control Module, Power And Ground:

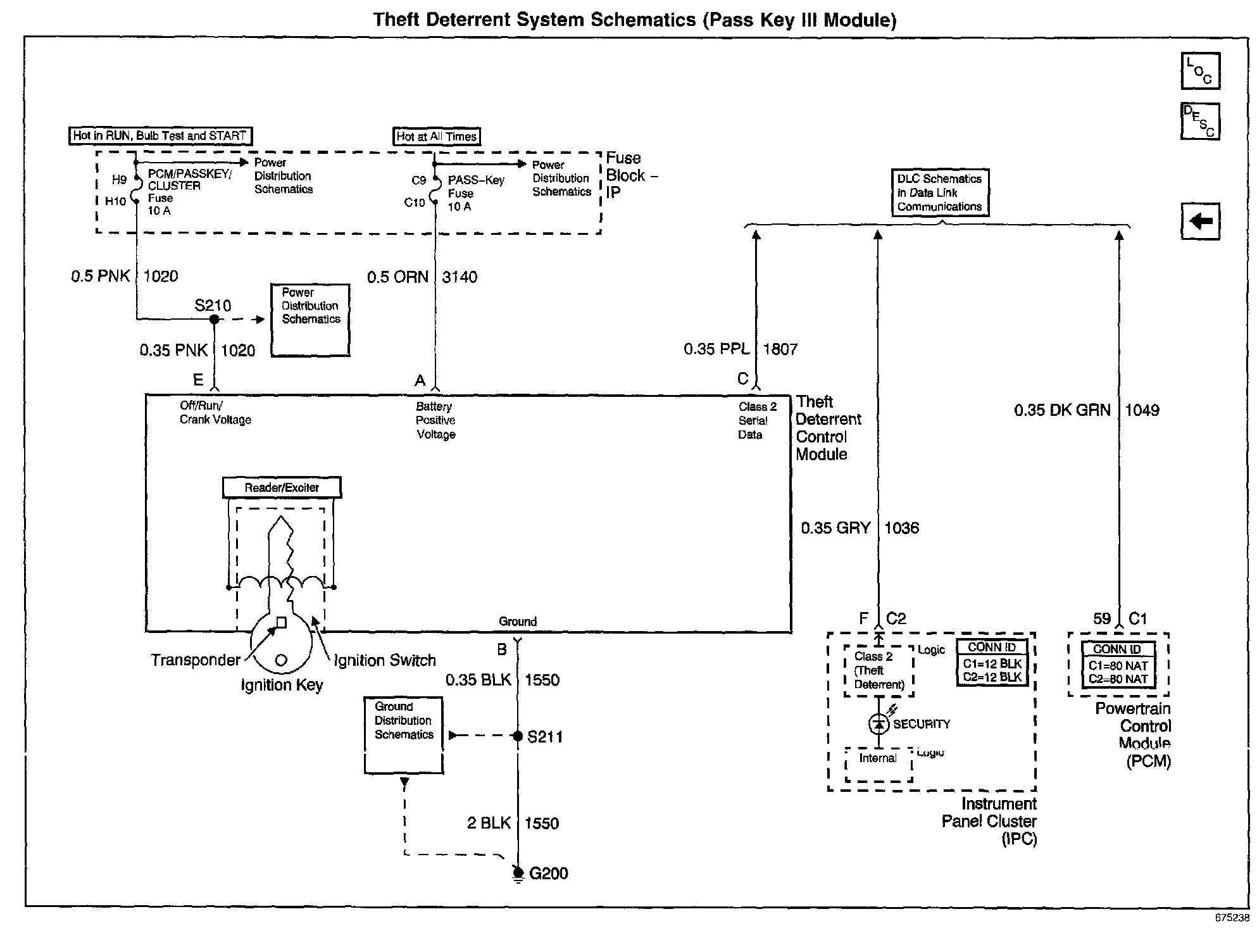

Theft Deterrent System Schematics: Pass Key III Module:
