Body Control Systems

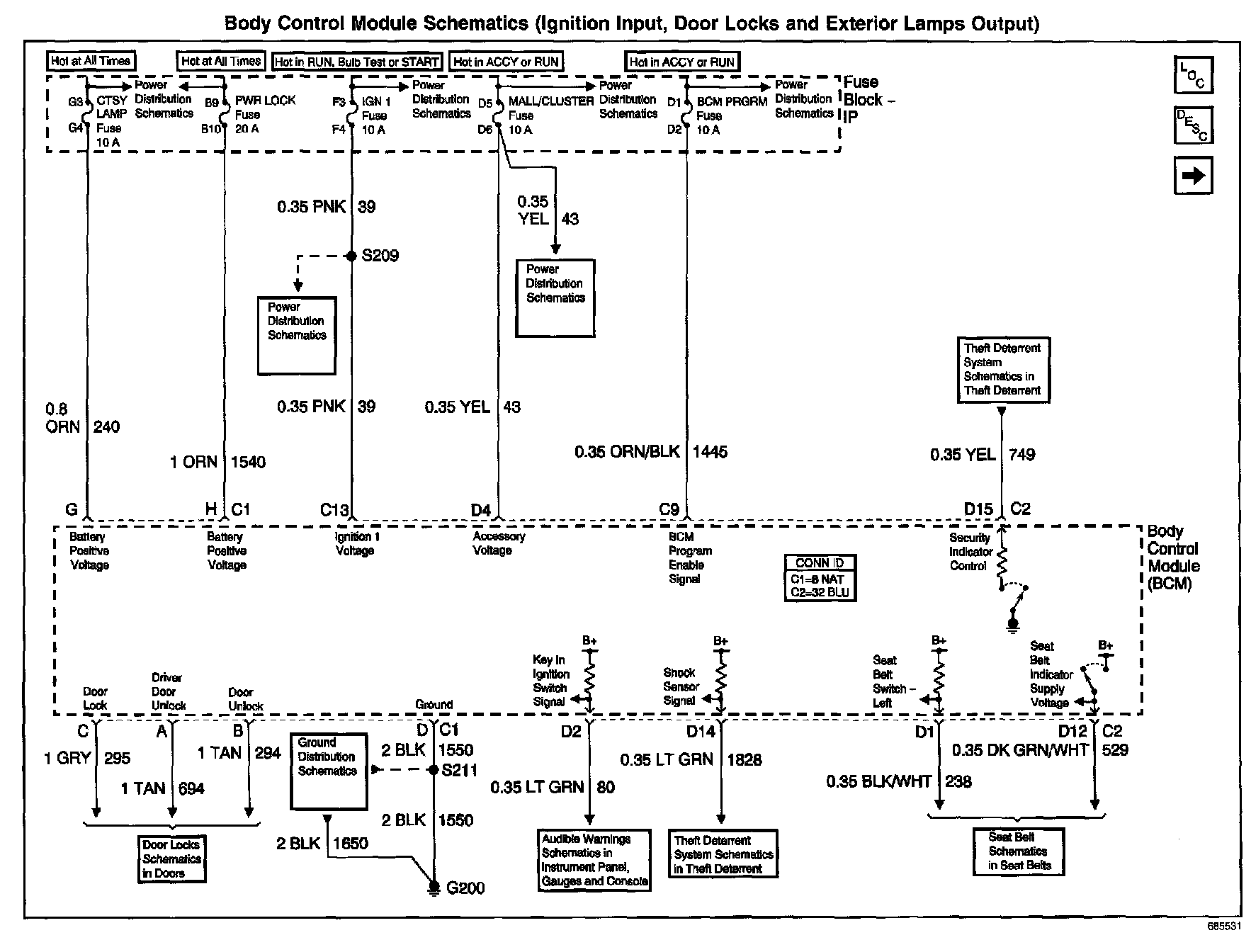

Body Control Module Schematics: Ignition Input, Door Locks And Exterior Lamps Output:

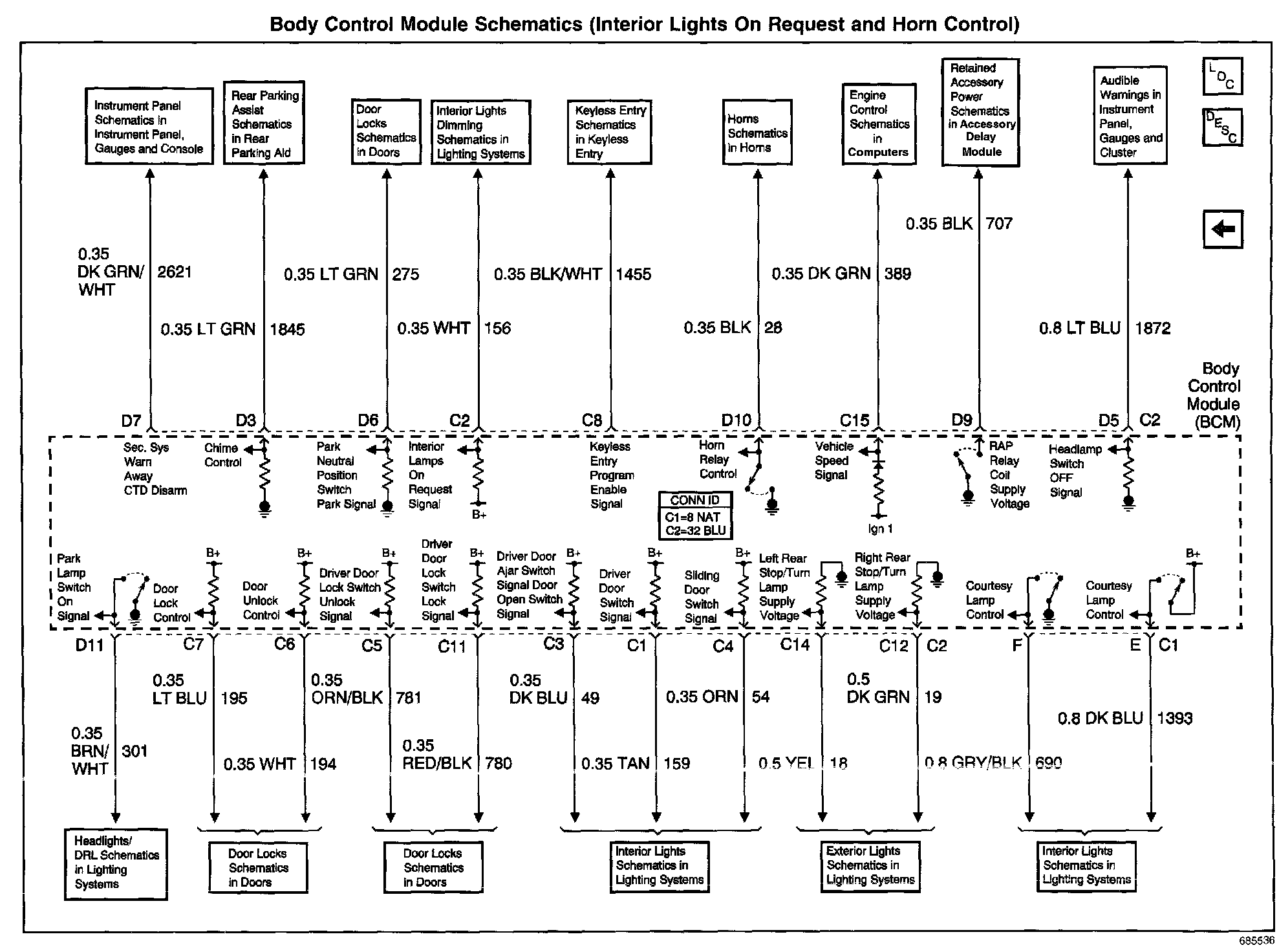

Body Control Module Schematics: Interior Lights On Request And Horn Control:
