Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2002
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Memory Positioning Systems
>>
Ground, Memory Seat Switch, and Memory Seat Module (MSM)
Ground, Memory Seat Switch, and Memory Seat Module (MSM)

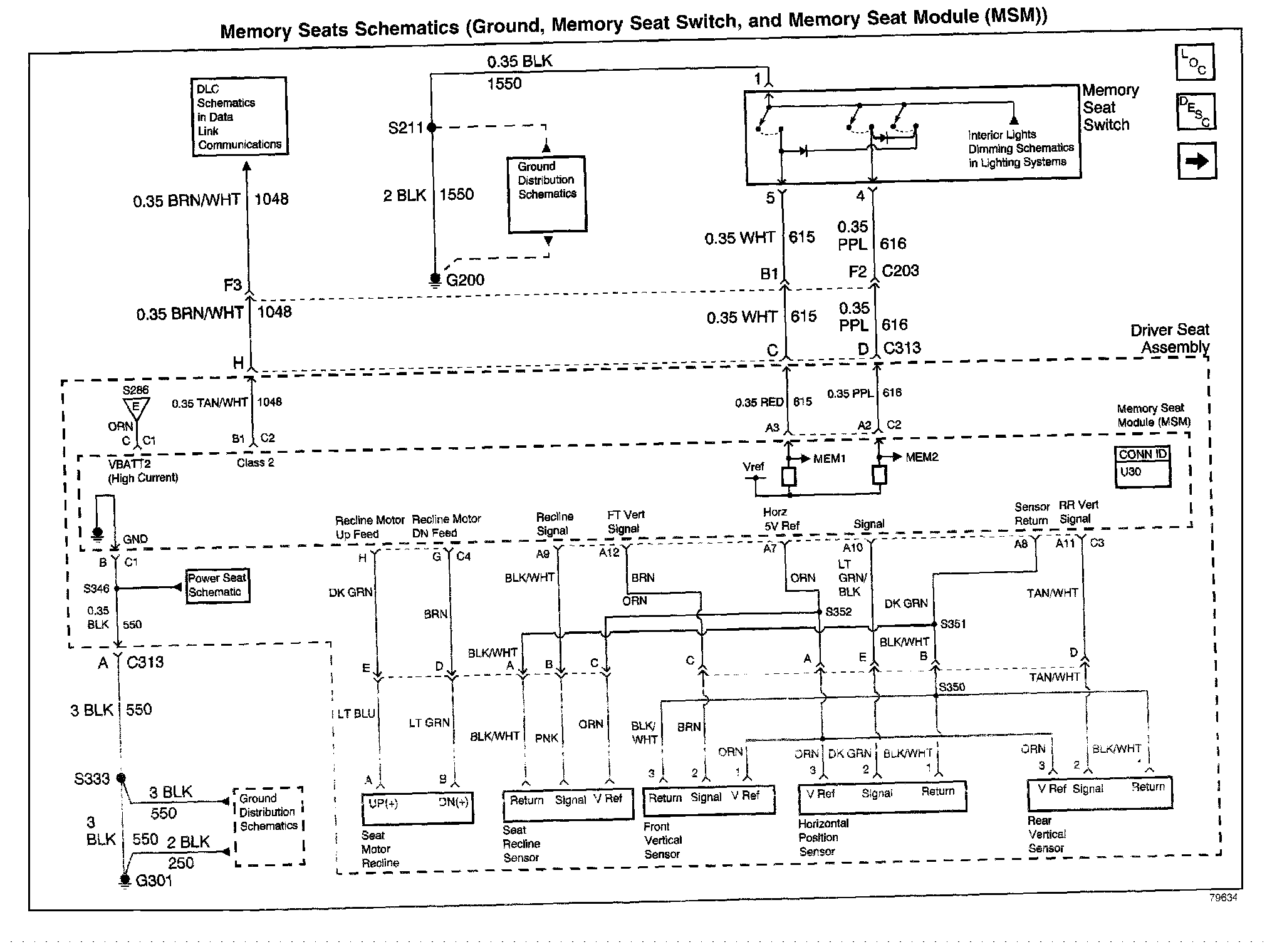

Memory Seats Schematics: Ground, Memory Seat Switch, And Memory Seat Module (MSM):
