Home
>>
Chevrolet
>>
2002
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Memory Positioning Systems
>>
Memory Seat Module (MSM) and Seat Horizontal Motor
Memory Seat Module (MSM) and Seat Horizontal Motor

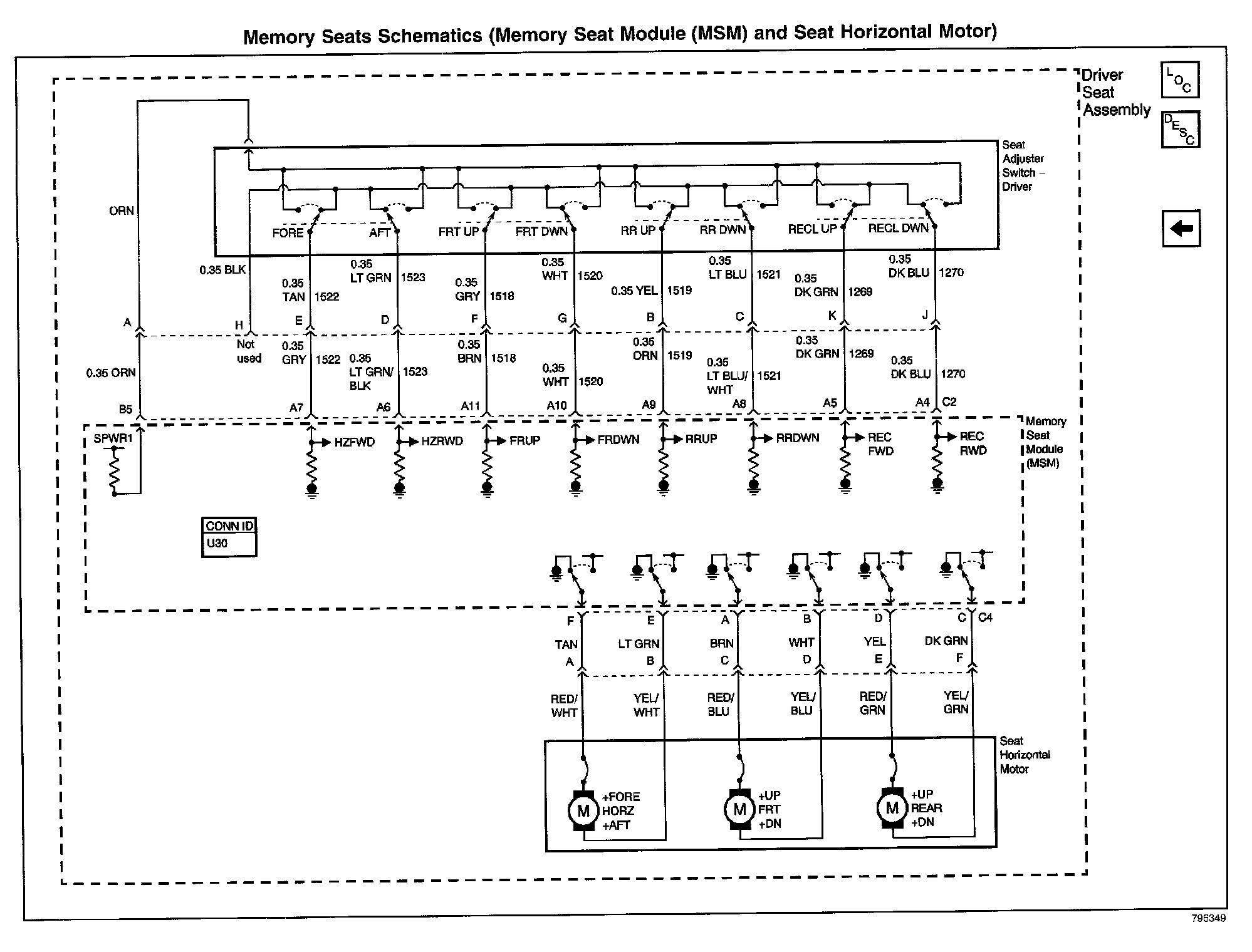

Memory Seats Schematics: Memory Seat Module (MSM) And Seat Horizontal Motor:
