Axle Shaft Assembly
>>

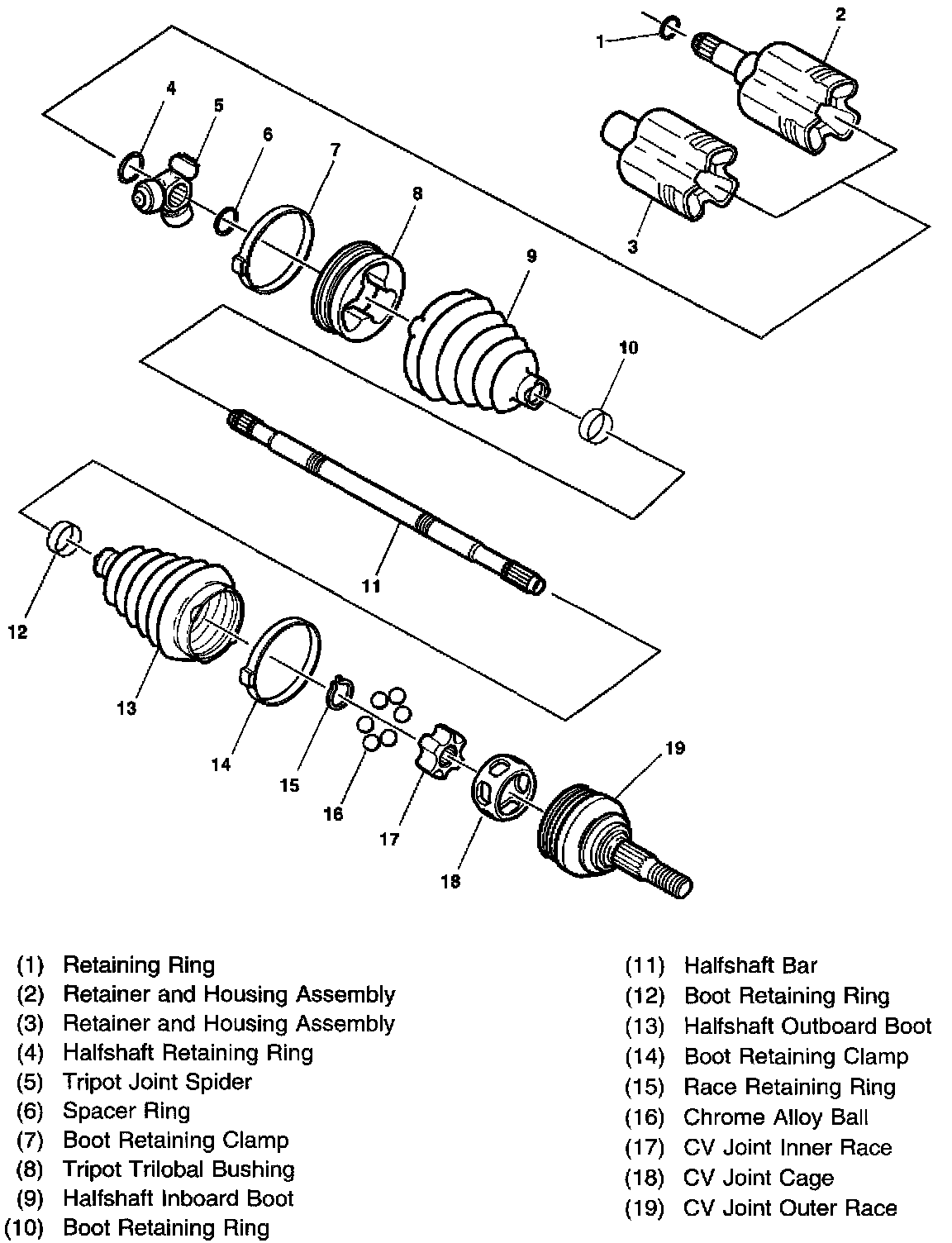

Wheel Drive Shafts Disassembled Views (Front)
Wheel Drive Shafts Disassembled Views (Front)
Wheel Drive Shafts Disassembled Views (Front)
Tripot Design-Halfshaft
