Recirculation Door Replacement

REMOVAL PROCEDURE




1. Remove the upper IP.
2. Remove the IP compartment.
3. Remove the HVAC passenger compartment air filters.
4. Disconnect the recirculation actuator electrical connector.

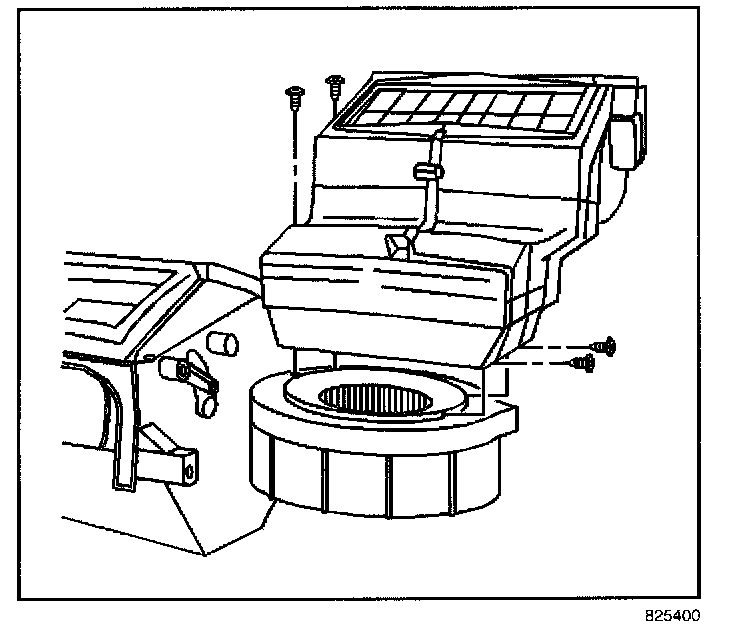

5. Remove the top air inlet housing retaining screws.
6. Remove the side air inlet housing retaining screws.
7. Remove the air inlet housing from the HVAC module assembly.

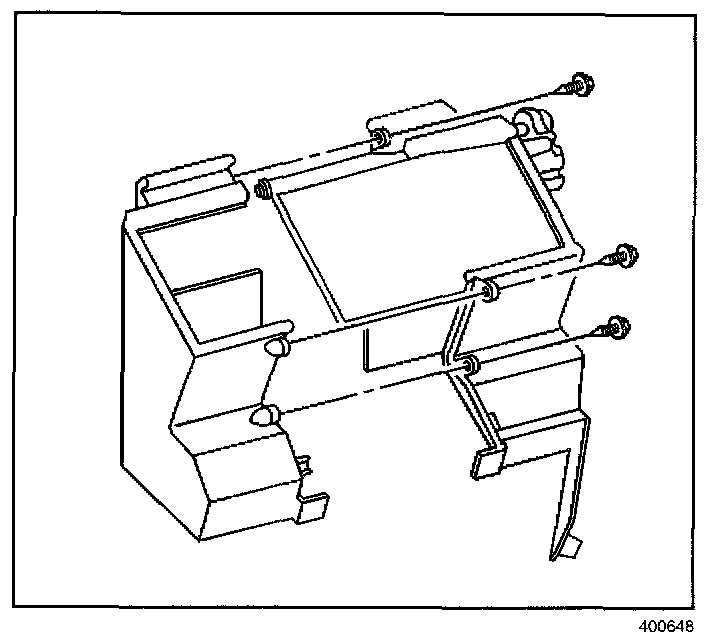

8. Remove the screws retaining the air inlet housing halves.




9. Separate the air inlet housing halves.

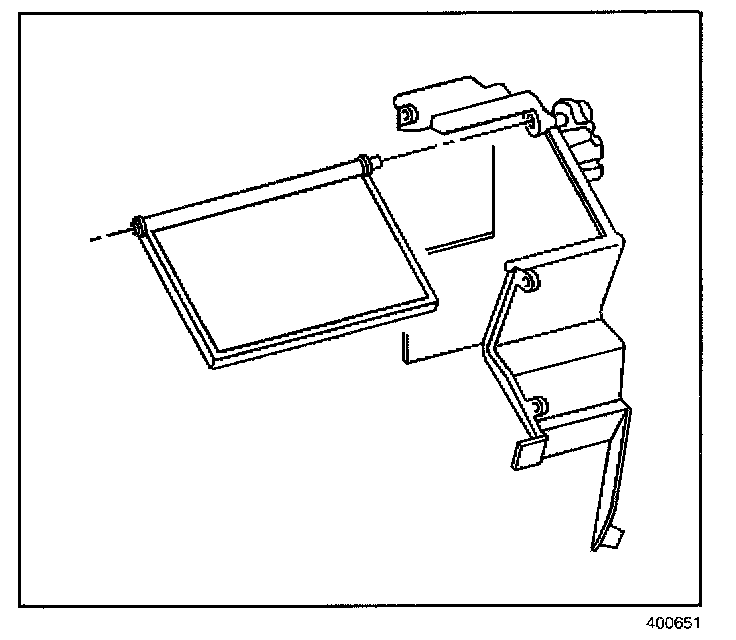

10. Remove the recirculation door from the air inlet housing.

INSTALLATION PROCEDURE

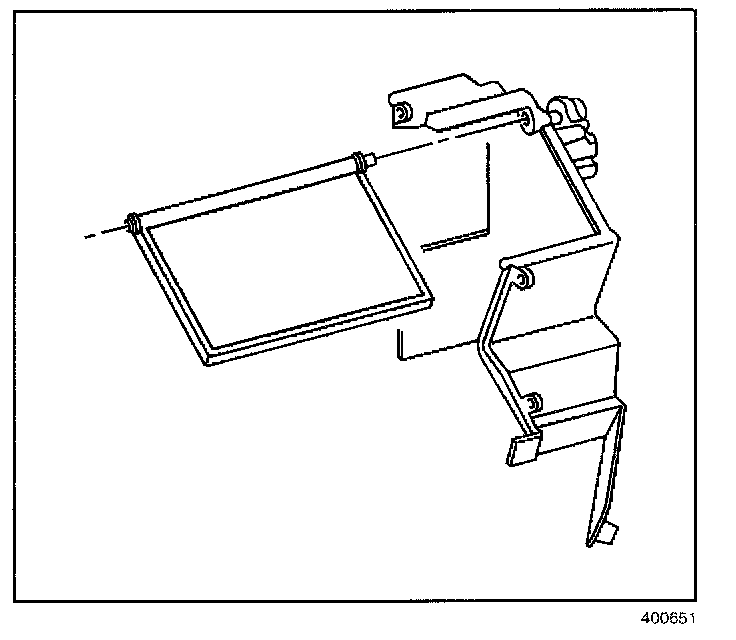

1. Install the recirculation door to the air inlet housing.




2. Align the recirculation door with the other half of the air inlet housing.
3. Connect the air inlet housing halves.

NOTE: Refer to Fastener Notice in Service Precautions.

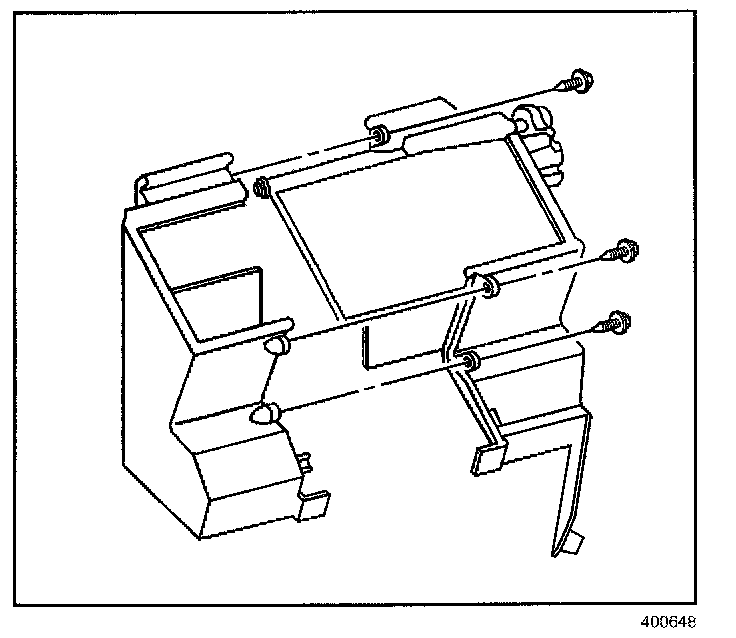

4. Install the screws retaining the air inlet housing halves.

Tighten
Tighten the screws to 0.9 N.m (8 lb in).




5. Install the air inlet housing to the HVAC module assembly.
6. Install the air inlet housing screws.

Tighten
Tighten the screws to 0.9 N.m (8 lb in).

7. Connect the recirculation actuator electrical connector.
8. Install the HVAC passenger compartment air filters.
9. Install the IP compartment.
10. Install the upper IP.
