Receiver Dryer: Service and Repair

RECEIVER DEHYDRATOR REPLACEMENT

TOOLS REQUIRED
J 39400-A Halogen Leak Detector

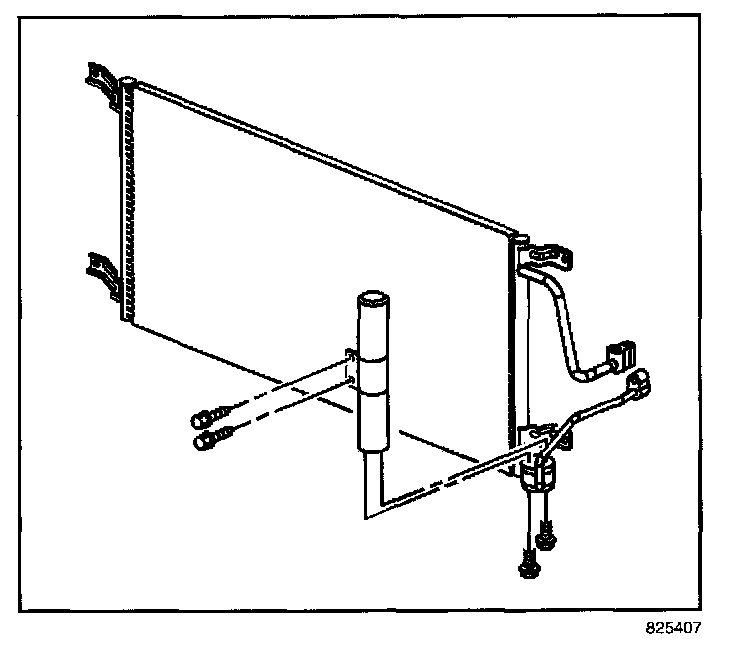

REMOVAL PROCEDURE




1. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging.
2. Remove the condenser.
3. Remove the receiver dehydrator upper mounting bolts.
4. Remove the receiver dehydrator lower mounting bolts.
5. Remove the receiver dehydrator.
6. Remove and discard the sealing washers.

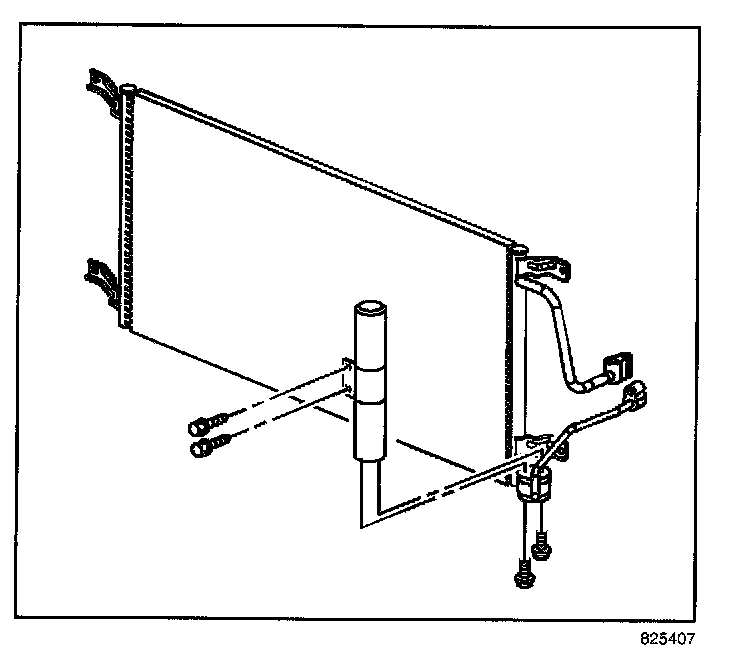

INSTALLATION PROCEDURE




1. If replacing the receiver dehydrator add the specified amount of PAG oil directly to the receiver dehydrator. Refer to Refrigerant System Capacities.
2. Using a lint-free clean, dry cloth, carefully clean the sealing surfaces of the A/C refrigerant line and the A/C refrigerant component.

IMPORTANT: Flat washer type seals do not require lubrication.

3. Install new sealing washers for the receiver dehydrator.
4. Install the receiver dehydrator to the condenser.

NOTE: Refer to Fastener Notice in Service Precautions.

5. Install the receiver dehydrator lower mounting bolts.

Tighten
Tighten the nuts to 6 N.m (53 lb in).

6. Install the receiver dehydrator upper mounting bolts.

Tighten
Tighten the bolts to 6 N.m (53 lb in).

7. Install the condenser.
8. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
9. Leak test the fittings of the component using J 39400-A.
