Master Connector List
C101 (20 Cavities) - C210 (2 Cavities):

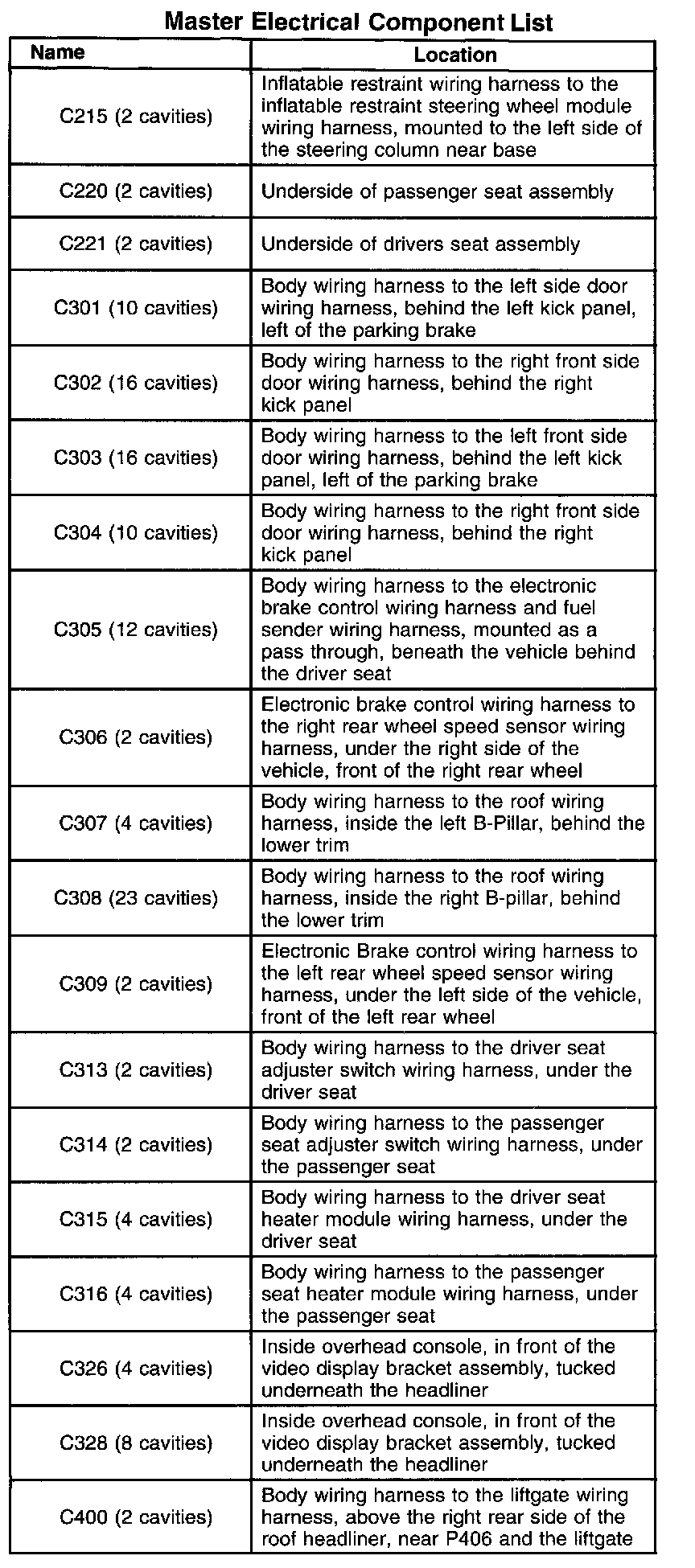

C215 (2 Cavities) - C400 (2 Cavities):

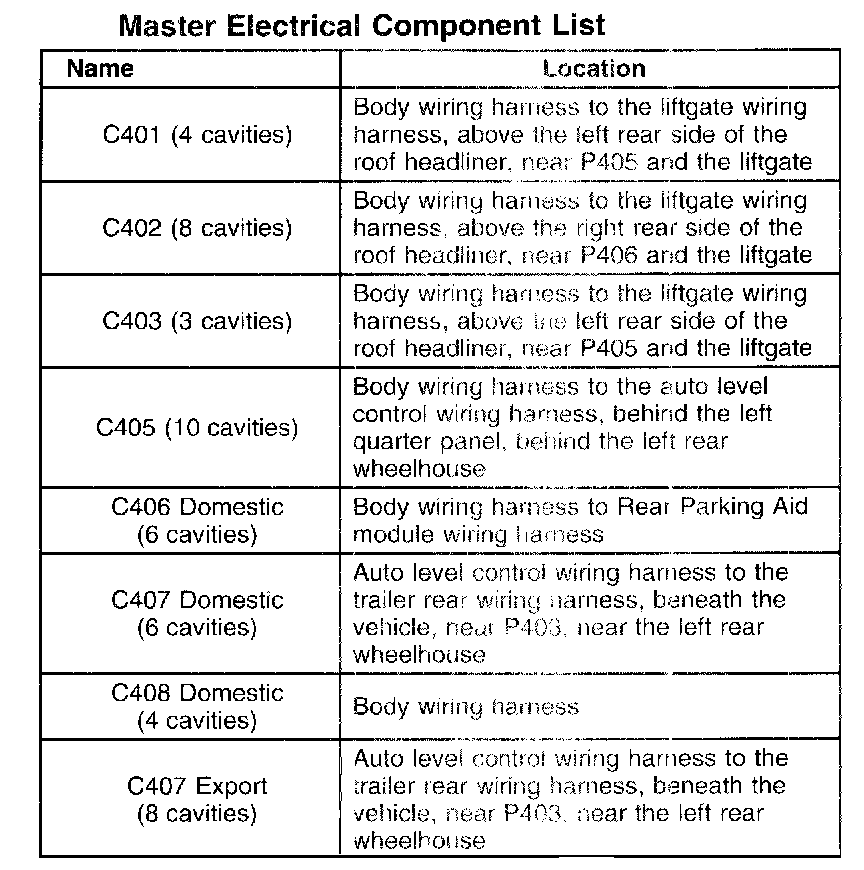

C401 (4 Cavities) - C407 Export (8 Cavities):
