Power and Ground Distribution
>>
Application and ID
>>
I/P
I/P

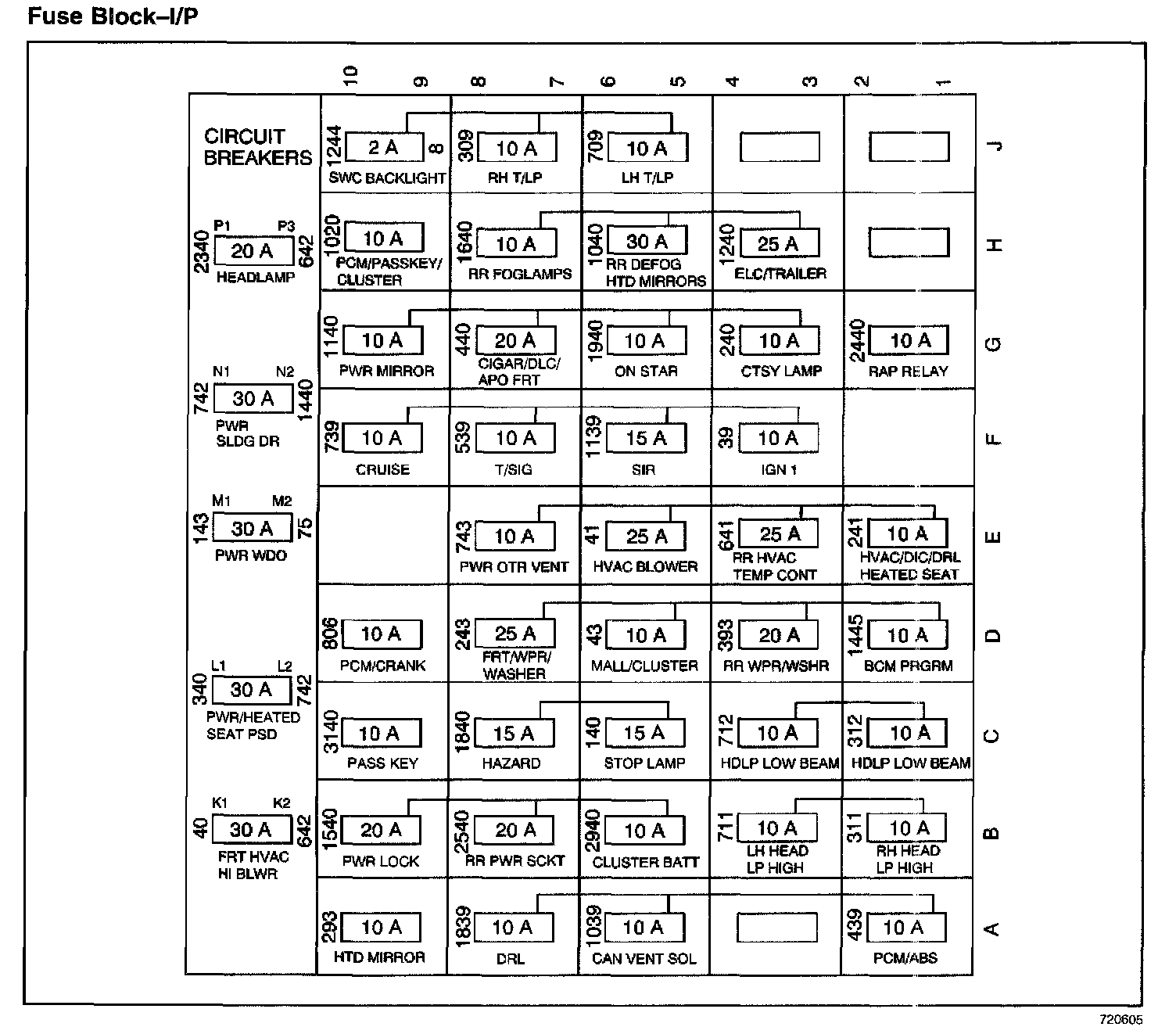

Fuse Block - I/P:
Fuse Block - I/P Application Table Part 1:
Fuse Block - I/P Application Table Part 2:
