Home >> Chevrolet >> 2002 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

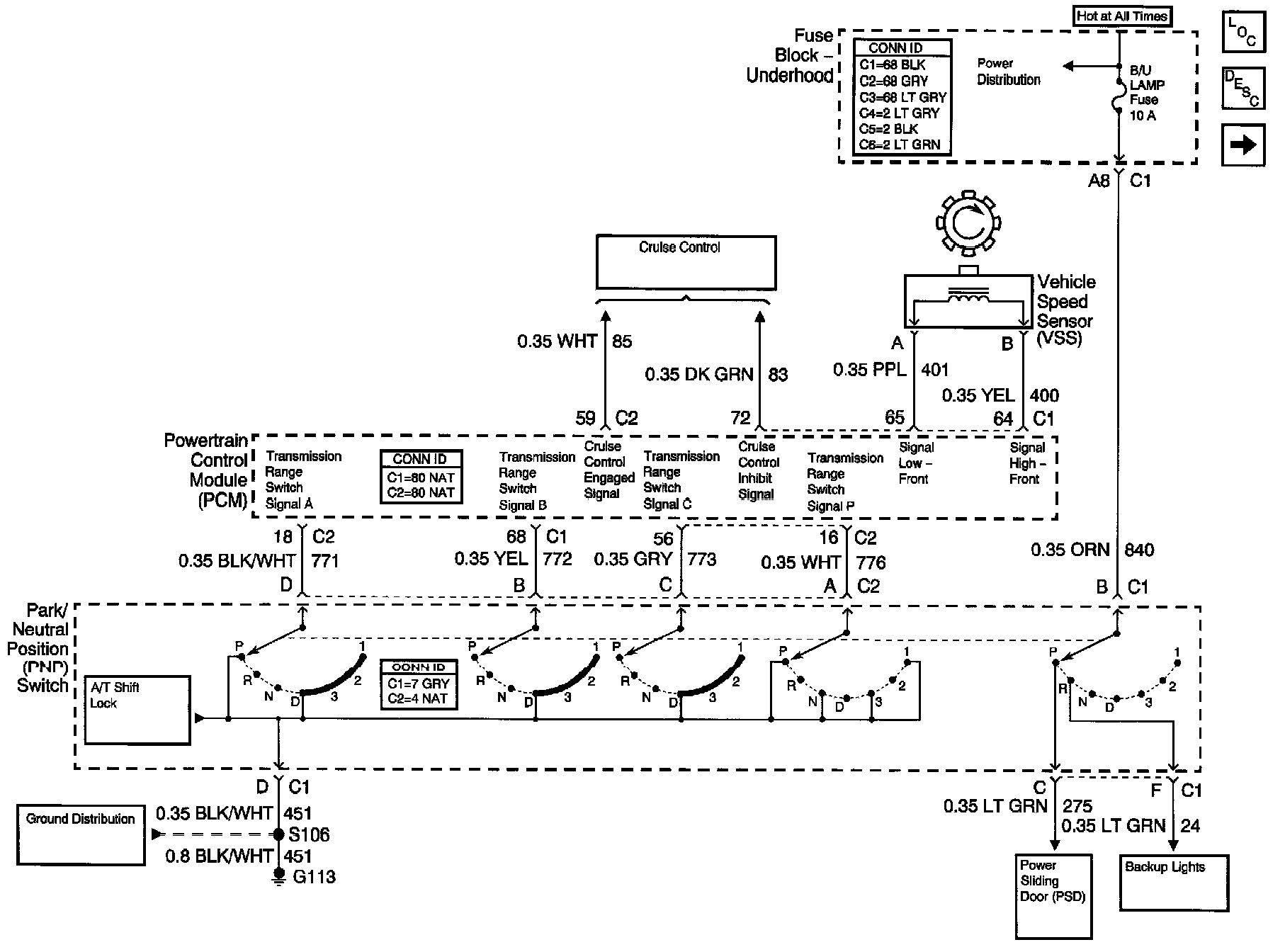

PCM Power, Ground, VSS and Transmission Range Switch:

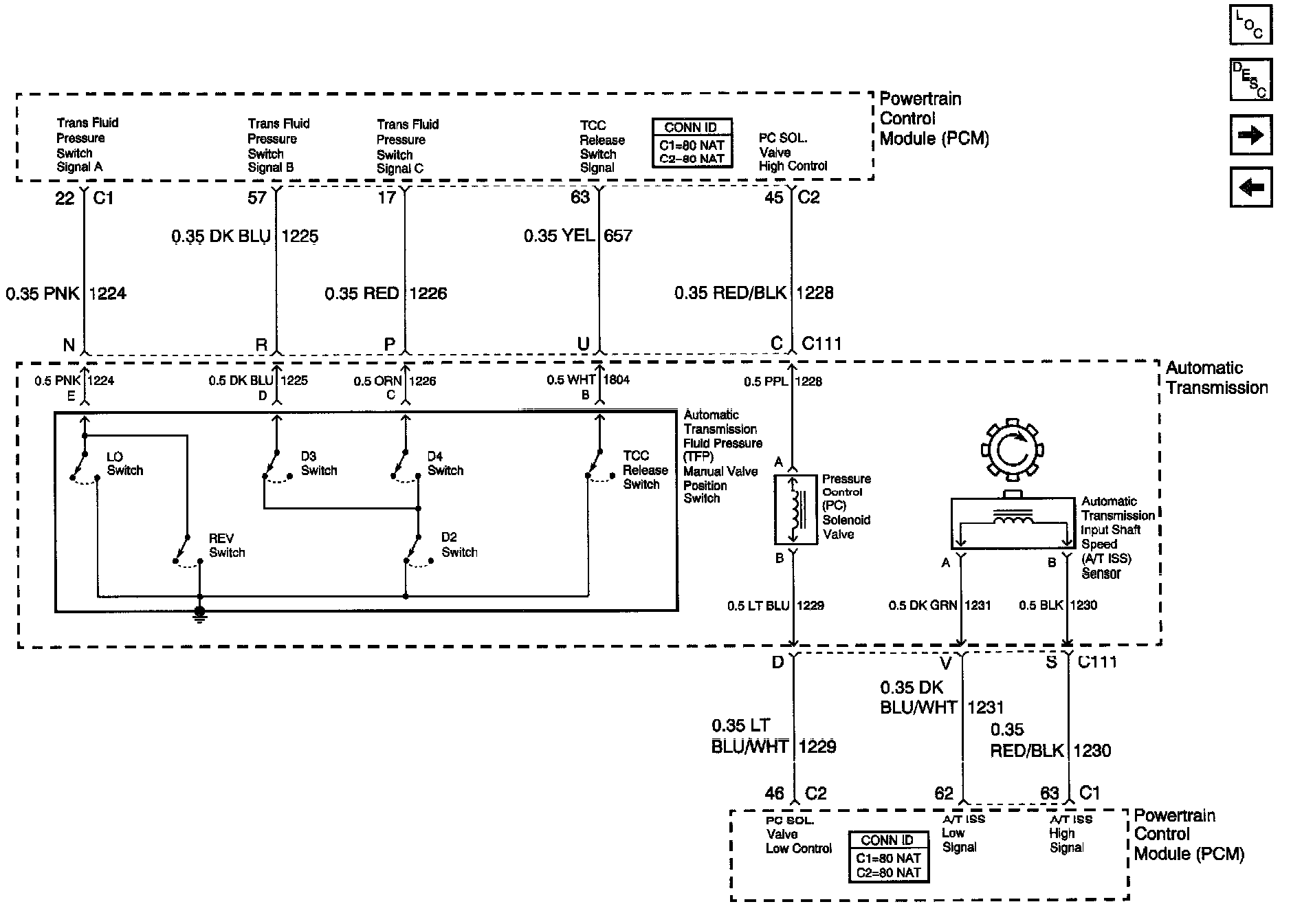

Automatic Transmission:

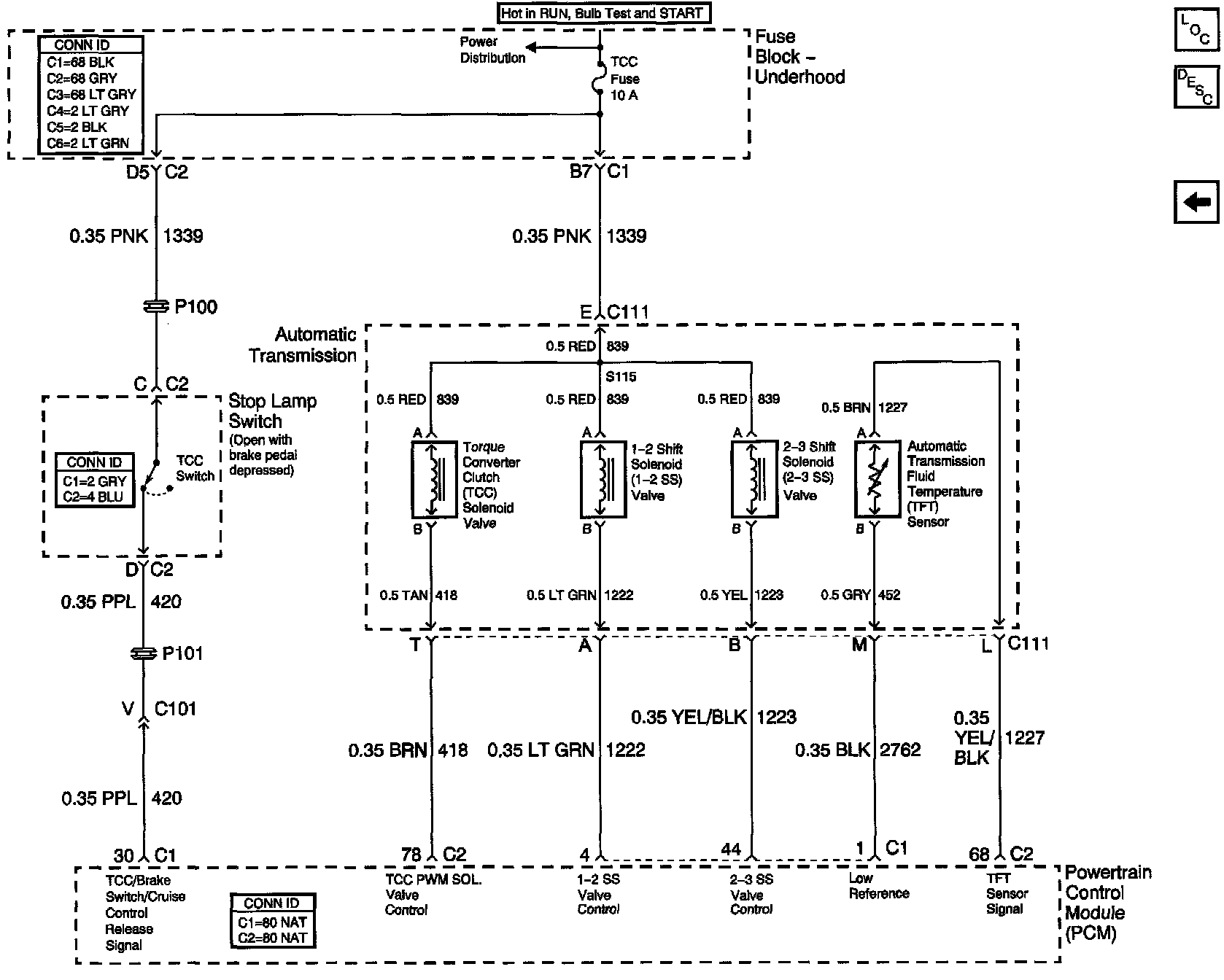

Automatic Transmission TCC Switch:
