On-Vehicle

Automatic Transaxle - 4T65-E

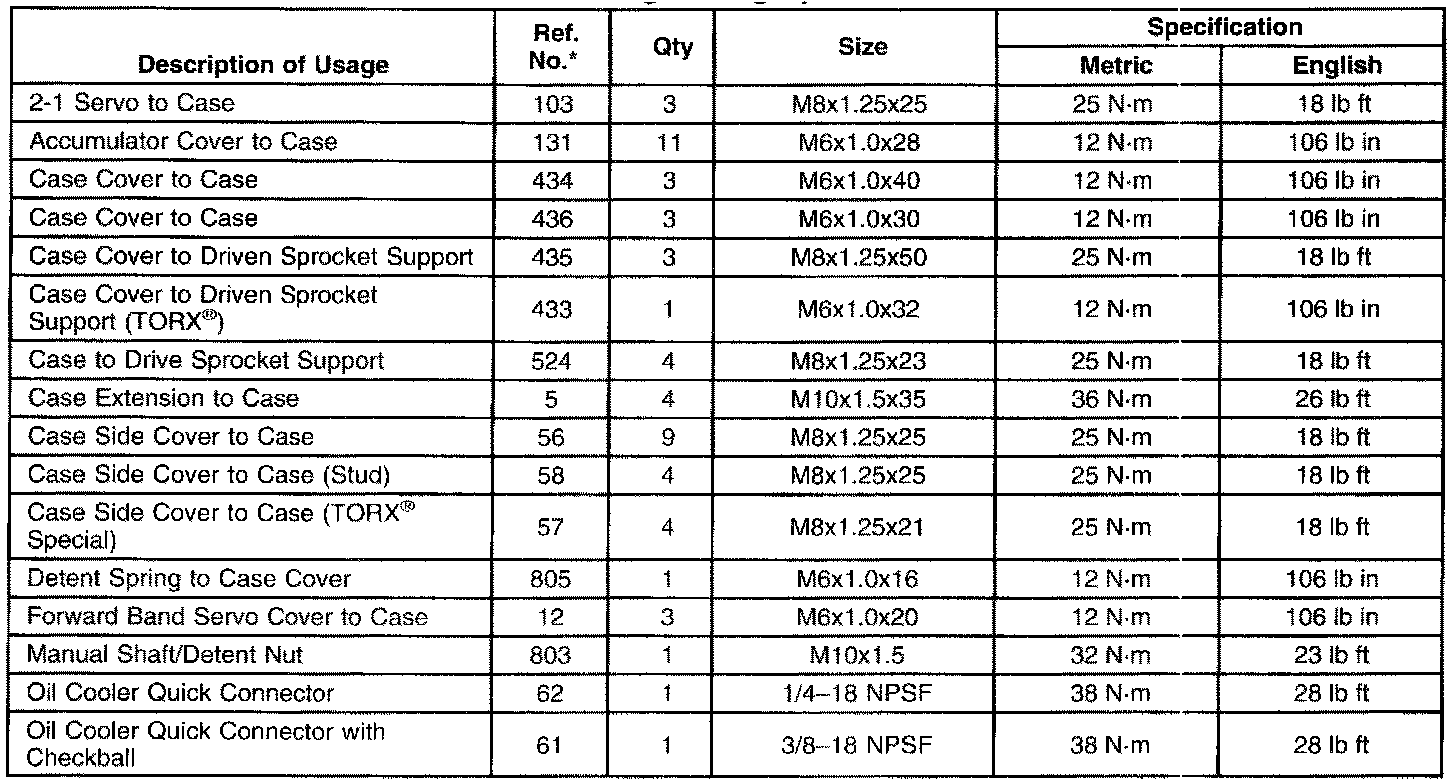

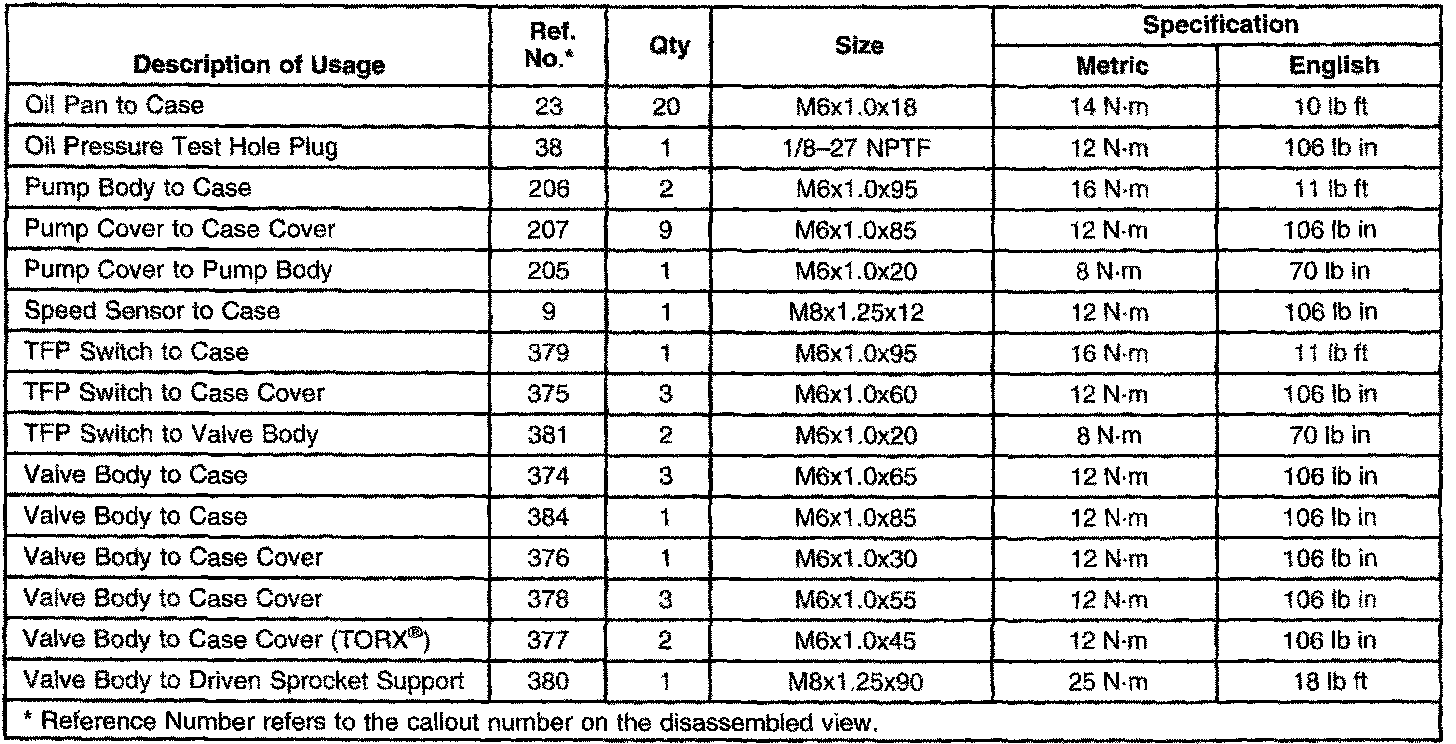

Fastener Tightening Specifications

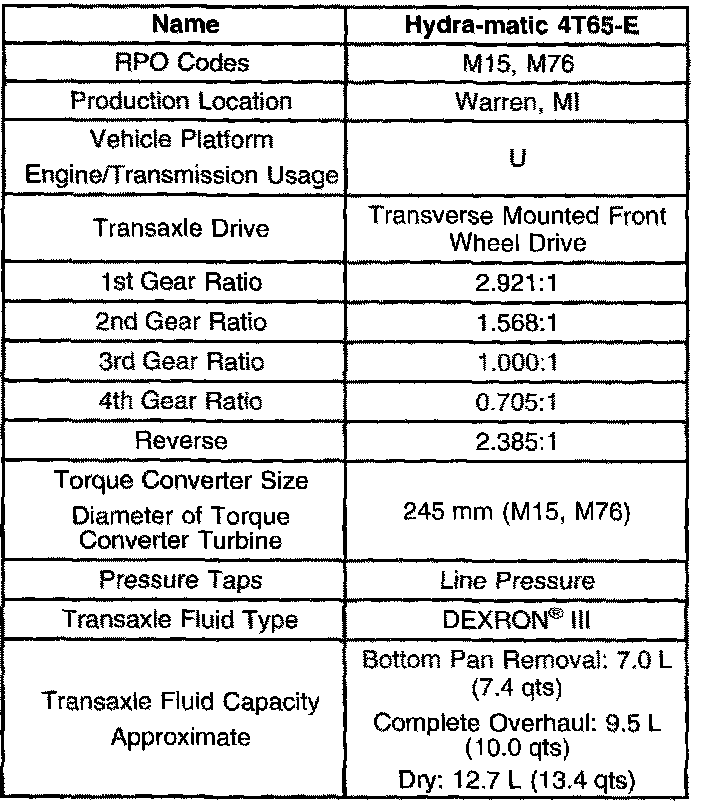

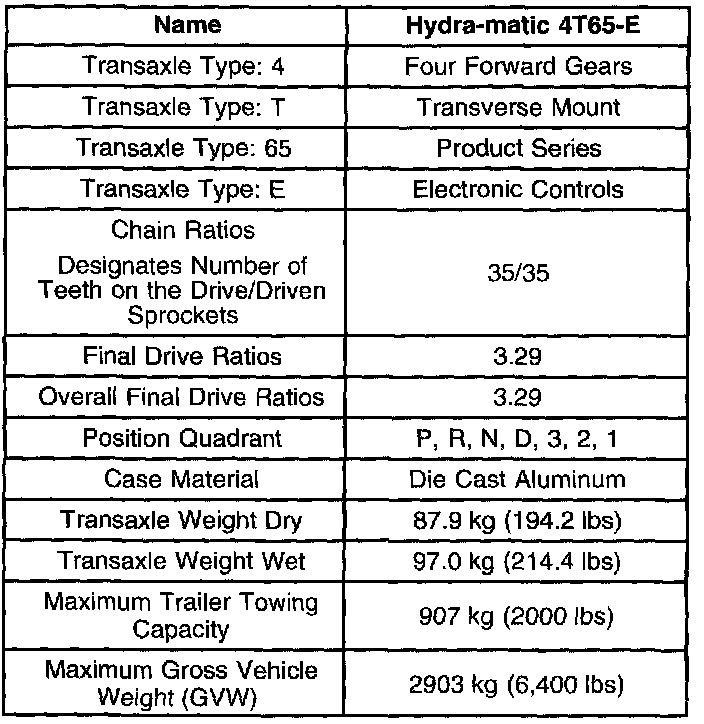

Transmission General Specifications

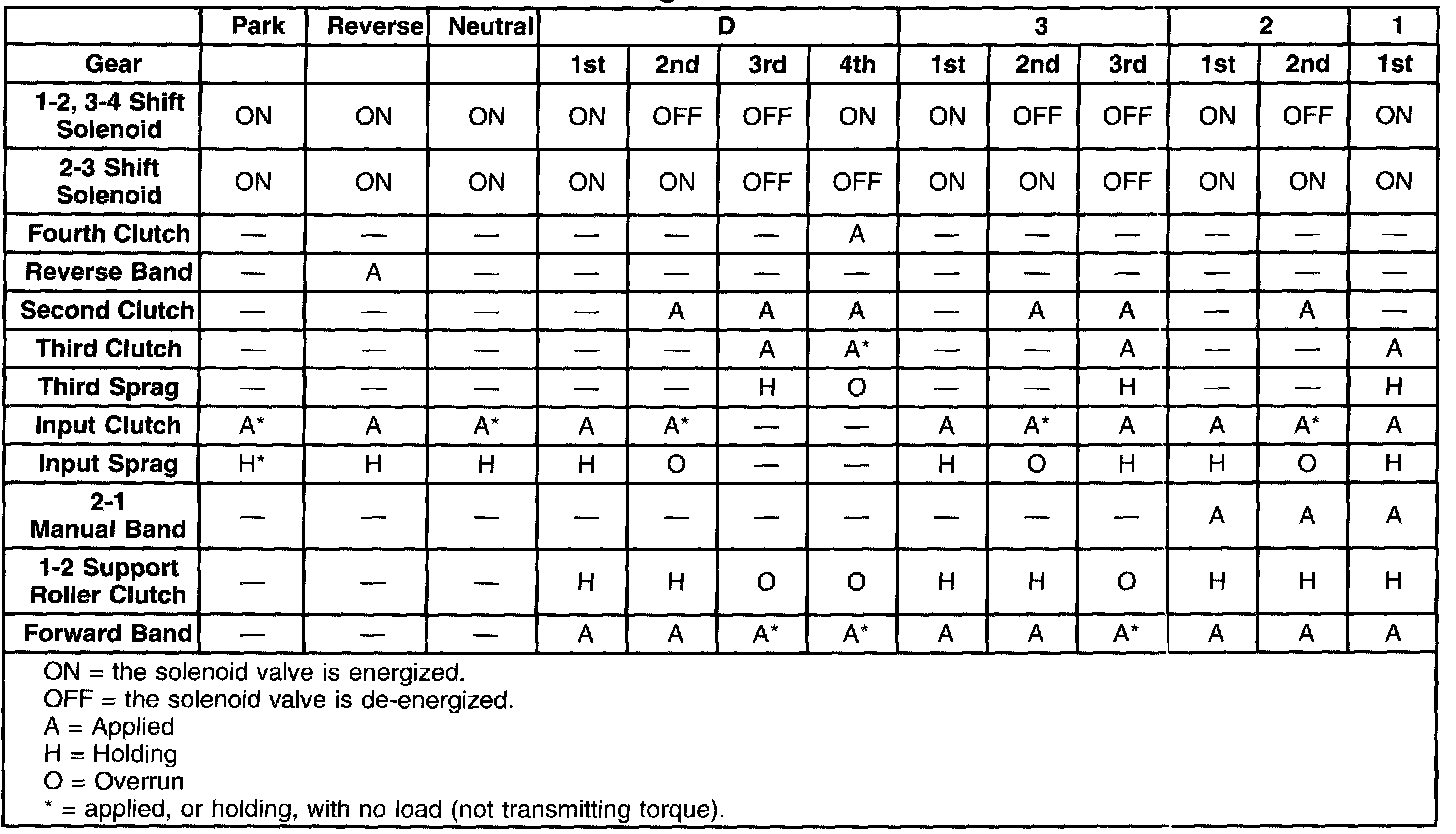

Range Reference

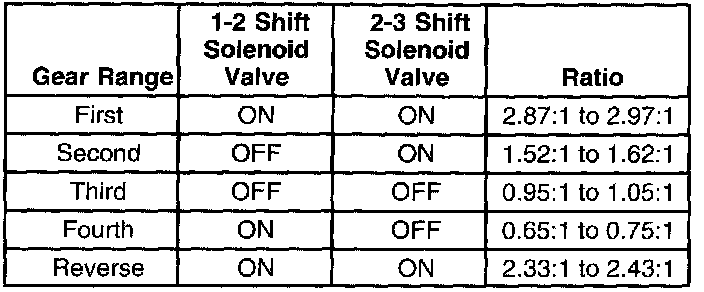

Shift Solenoid Valve State and Gear Ratio

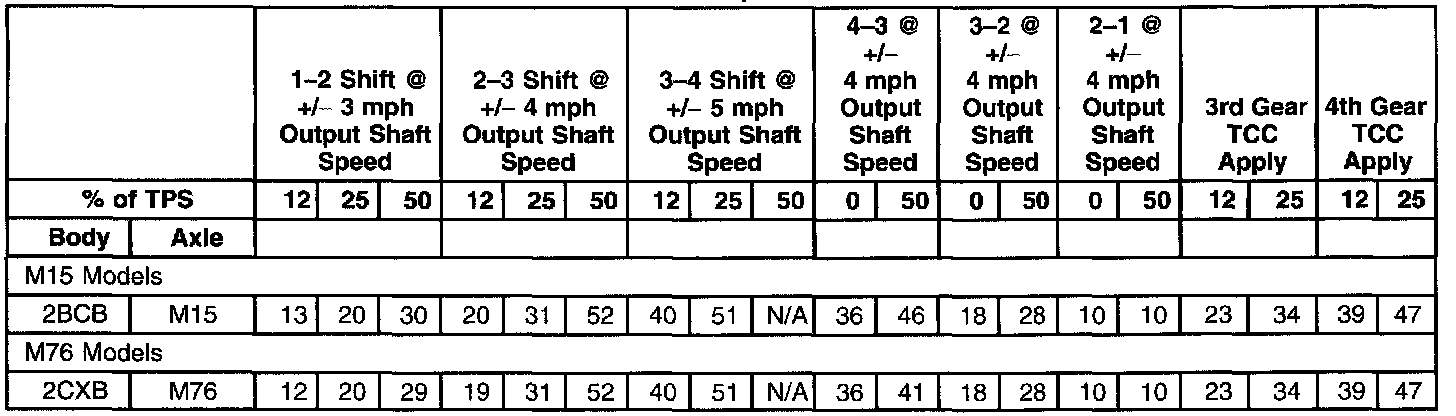

Shift Speed
