Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2002
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
Differential Assembly
Rear Drive Axle

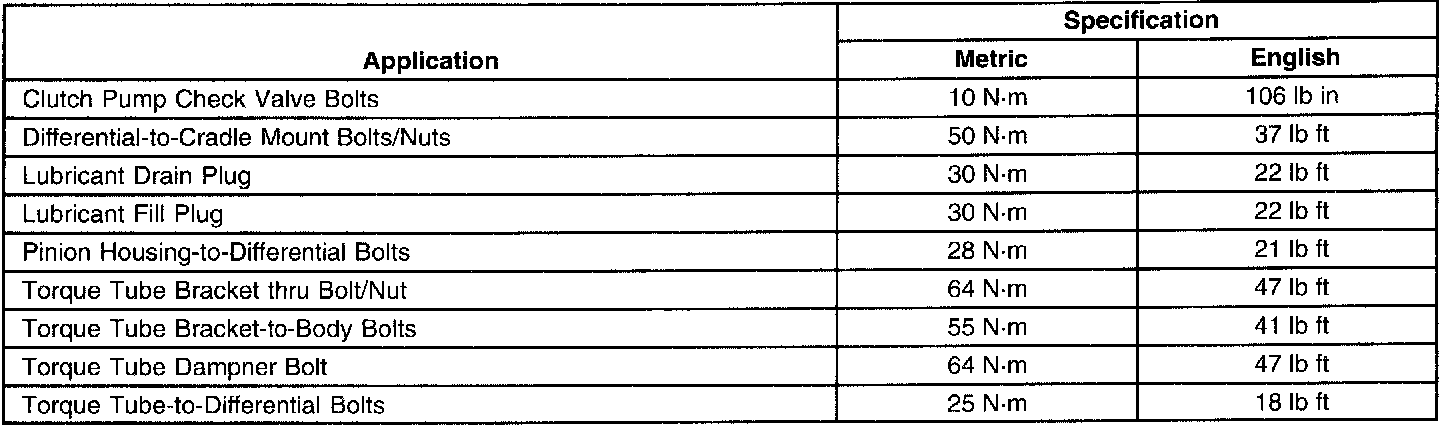

Fastener Tightening Specifications

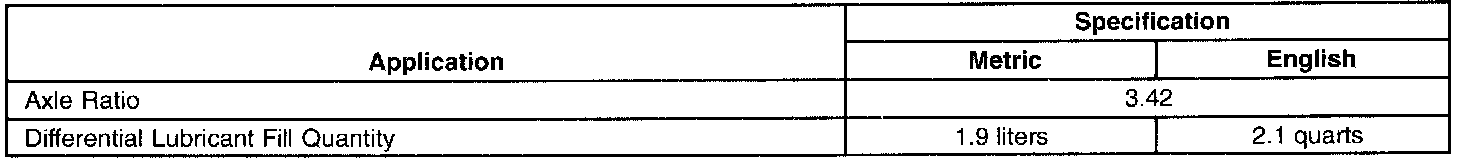

Differential Carrier Assembly Specifications
