Home >> Chevrolet >> 2002 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Mounted Controls Transmitter >> Testing and Inspection

Steering Mounted Controls Transmitter: Testing and Inspection

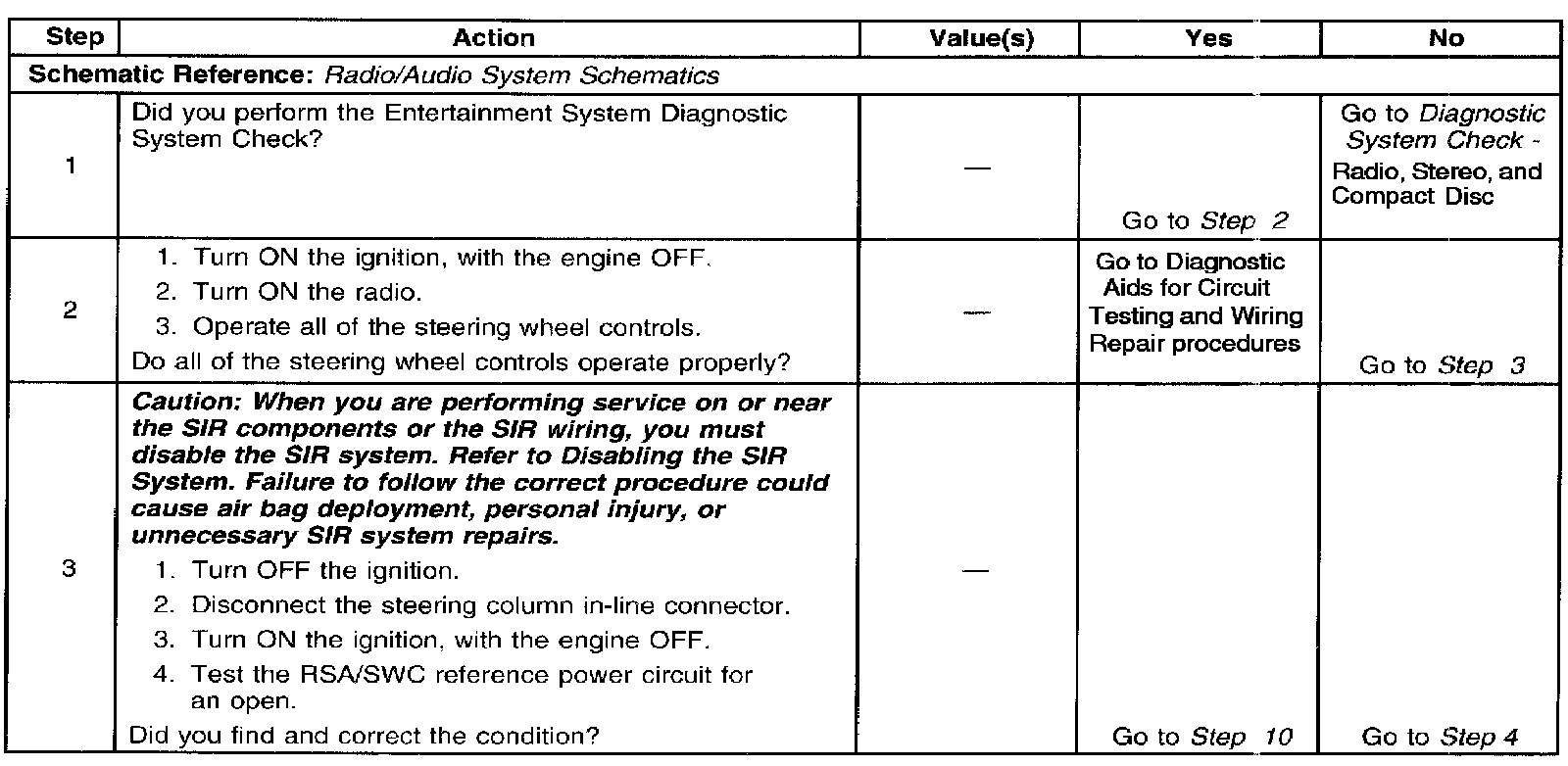

Steering Wheel Controls Inoperative - Steps 1-3:

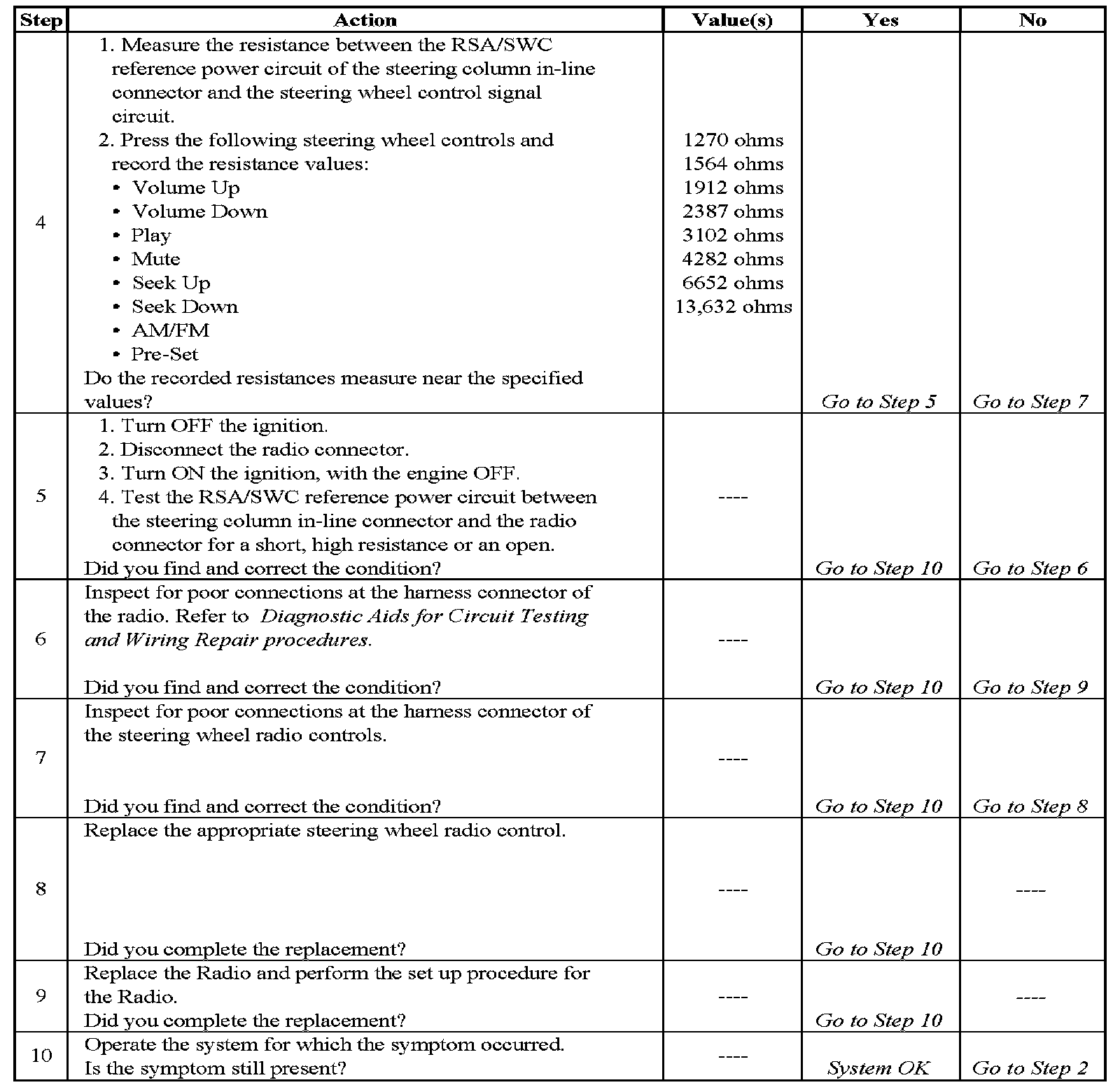

Steering Wheel Controls Inoperative - Steps 4-10:
