Campaign - ABS Electronic Control Module Replacement
File In Section: Product RecallsBulletin No.: 01070
Date: November, 2001
CUSTOMER SATISFACTION RECALL
SUBJECT:
01070 - AWD ABS SOFTWARE ERROR
MODELS:
2002 Chevrolet Venture, Pontiac Montana, and Oldsmobile Silhouette
THIS RECALL IS IN EFFECT THROUGH NOVEMBER 6, 2002.
Customers who have recently purchased vehicles from your new vehicle inventory are to be immediately contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. This could be done by telephone or mailing to such customers, a copy of the customer letter is not shown in this bulletin.
CONDITION
General Motors has decided that certain 2002 Chevrolet Venture, Pontiac Montana, and Oldsmobile Silhouette U-Van model vehicles with All Wheel Drive (AWD) have an ABS software error. Under some driving maneuvers with the compact spare tire installed, the software error can result in the AWD Rear Drive Module (RDM) clutches not disengaging resulting in excessive slip of the clutches. The driver would notice odor and noise and premature wear to the clutch could result. If the vehicle continues to be driven, the clutch would lose ability to transfer power.
CORRECTION
Dealers are to replace the ABS module Electronic Control Unit (ECU) with an ECU with updated software.
VEHICLES INVOLVED

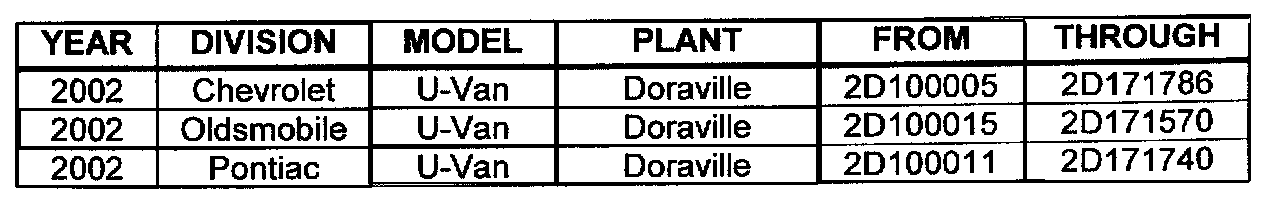

Involved are certain 2002 Chevrolet Venture, Pontiac Montana, and Oldsmobile Silhouette U-Van model vehicles equipped with AWD RPO and built within the VIN breakpoints shown.
IMPORTANT:
Dealers should confirm vehicle eligibility through GMVIS (GM Vehicle Inquiry System) or GM Access Screen (Canada only) or DCS Screen 445 (IPC only) prior to beginning recall repairs. [Not all vehicles within the above breakpoints may be involved.]
Involved vehicles have been identified by Vehicle Identification Number. Computer listings containing the complete Vehicle Identification Number, customer name and address data have been prepared, and are being furnished to involved dealers with the recall bulletin. The customer name and address data furnished will enable dealers to follow up with customers involved in this recall. Any dealer not receiving a computer listing with the recall bulletin has no involved vehicles currently assigned.
These dealer listings may contain customer names and addresses obtained from Motor Vehicle Registration Records. The use of such motor vehicle registration data for any other purpose is a violation of law in several states/provinces/countries. Accordingly, you are urged to limit the use of this listing to the follow-up necessary to complete this recall.
PARTS INFORMATION
Important:
A 100% supply of parts required to complete this recall will be pre-shipped to involved dealers of record. This pre-shipment is scheduled to begin the week of November 5, 2001. Parts received for a recently transferred vehicle should be forwarded by the original dealer (with a phone call) to the dealer that received the transferred vehicle. Pre-shipped parts will be charged to dealer's open parts account.
Additional parts, if required, are to be obtained from General Motors Service Parts Operations (GMSPO). Please refer to your "involved vehicles listing" before ordering parts. Normal orders should be placed on a DRO = Daily Replenishment Order. In an emergency situation, parts should be ordered on a CSO = Customer Special Order.
Important:
Due to the 100% pre-ship parts availability, dealers should not order recall parts for use as shelf stock.
SERVICE PROCEDURE
IMPORTANT:
The service procedure contained in this recall is different from the service procedure found in the appropriate service manual(s). Please be advised that the labor time allowance listed in the labor time guide is not affected by this new service procedure.
1. Make sure the vehicle ignition switch is in the off position.
Note:
Failure to have the ignition switch in the off position may result in damage to the EBCM/EBTCM when disconnecting or connecting the wiring harness connector from the EBCM/EBTCM.
2. Raise hood and remove any dirt debris that may have accumulated on the EBCM.
3. Disconnect the EBCM wiring harness connector.
4. Remove the four screws securing the EBCM to the BPMV and discard screws.
Important:
Do not pry the EBCM from the BPMV using any type of tool. Be careful not to damage the BPMV mounting face. Care must be taken not to damage the solenoid valves when the EBCM is removed from the BPMV.
5. While carefully displacing brake pipes upward, separate the EBCM from the BPMV by gently pulling apart until separated.
6. Discard removed EBCM.
7. Clean the BPMV surface with alcohol using a clean rag.
8. Position new EBCM onto BPMV and hand start the new screws provided with the EBCM.
9. Tighten the four EBCM to BPMV screws to 2.9 Nm (26 lb in) in an X pattern.
10. Connect the EBCM wiring harness connector.
11. Turn vehicle ignition switch to the run position, do not start engine.
12. Perform the Diagnostic System Check - ABS.
13. Install the GM Recall identification Label.
RECALL IDENTIFICATION LABEL - For US and IPC
Place a Recall Identification Label on each vehicle corrected in accordance with the instructions outlined in this Product Recall Bulletin. Each label provides a space to include the recall number and the five (5) digit dealer code of the dealer performing the recall service This information may be inserted with a typewriter or a ball point pen.
Put the Recall Identification Label on a clean and dry surface of the radiator core support in an area that will be visible to people servicing the vehicle. When installing the Recall Identification Label, be sure to pull the tab to allow adhesion of the clear protective covering. Additional Recall Identification Labels for US dealers can be obtained from Dealer Support Materials by calling 1-866-700-0001 (Monday-Friday, 8:00 a.m. to 5:00 p.m. EST). Ask for Item Number 5-1015 when ordering.
Additional Recall Identification Labels for IPC dealers can be obtained from your Regional Marketing Office
RECALL IDENTIFICATION LABEL - For CANADA
Place a Recall Identification Label on each vehicle corrected in accordance with the instructions outlined in this Product Recall Bulletin. Each label provides a space to include the recall number and the five (5) digit dealer code of the dealer performing the recall service. This information may be inserted with a typewriter or a ball point pen.
Put the Recall Identification Label on a clean and dry surface of the radiator core support in an area that will be visible to people servicing the vehicle. Additional Recall Identification Labels for Canadian dealers can be obtained from DGN by calling 1-800-668-5539 (Monday-Friday, 8:00 a.m. to 5:00 p.m. EST). Ask for Item Number GMP 91 when ordering.
CLAIM INFORMATION

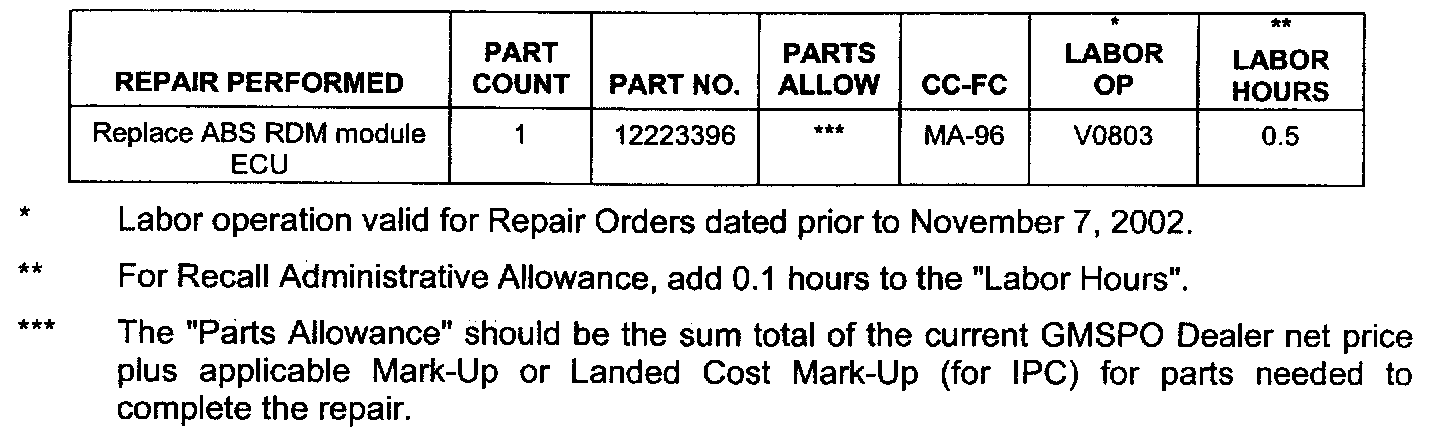

Submit a Product Recall Claim with the information shown.
Refer to the General Motors WINS Claims Processing Manual for details on Product Recall Claim Submission.
CUSTOMER NOTIFICATION - For US and CANADA
Customers will be notified of this recall on their vehicles by General Motors (Copy of customer letter is not shown in this bulletin).
CUSTOMER NOTIFICATION - For IPC
Letters will be sent to known owners of record located within areas covered by the US National Traffic and Motor Vehicle Safety Act. For owners outside these areas, dealers should notify customers using the letter (not shown).
DEALER RECALL RESPONSIBILITY - ALL
All unsold new vehicles in dealers, possession and subject to this recall must be held and inspected/repaired per the service procedure of this recall bulletin before customers take possession of these vehicles.
Dealers are to service all vehicles subject to this recall at no charge to customers, regardless of mileage, age of vehicle, or ownership, through November 6, 2002.
Customers who have recently purchased vehicles sold from your vehicle inventory, and for which there is no customer information indicated on the dealer listing, are to be contacted by the dealer. Arrangements are to be made to make the required correction according to the instructions contained in this bulletin. This could be done by mailing to such customers, a copy of the customer letter. Recall follow-up cards should not be used for this purpose, since the customer may not as yet have received the notification letter.
In summary, whenever a vehicle subject to this recall enters your vehicle inventory, or is in your dealership for service prior to November 7, 2002, you must take the steps necessary to be sure the recall correction has been made before selling or releasing the vehicle.
