LOCK REPLACEMENT - SLIDING DOORREMOVAL PROCEDURE
1. Remove the trim panel.
2. Remove the water deflector.
3. Remove the upper access cover, if equipped.

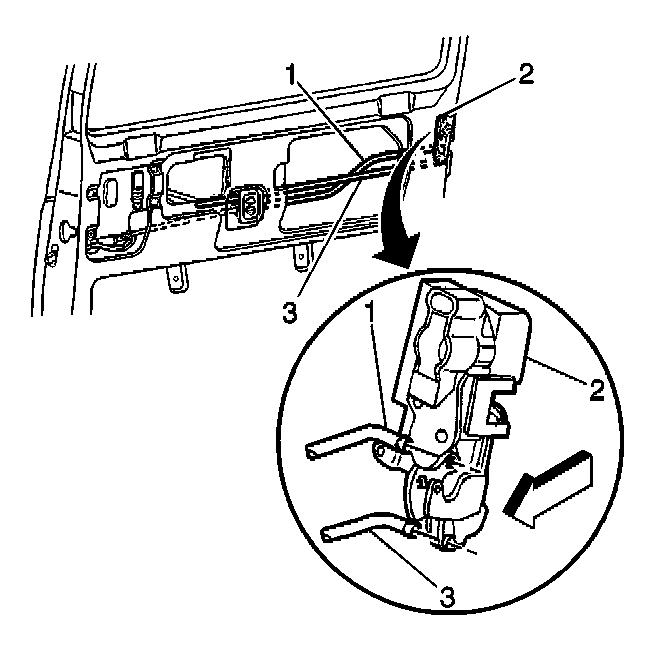

4. Remove the lock rods (1) from the lock assembly (1 and 3).

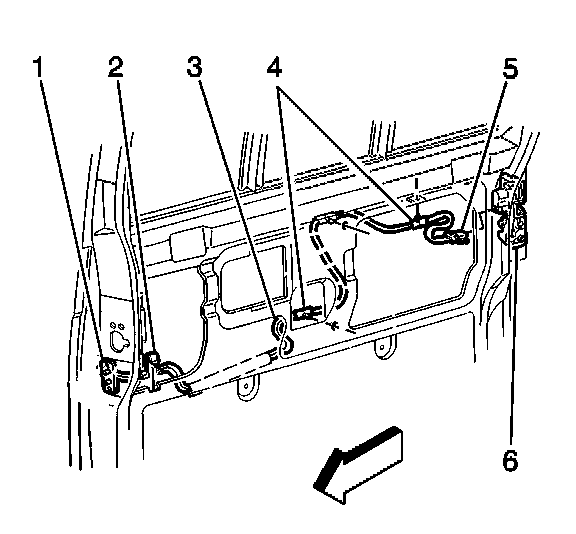

5. Disconnect the electrical connector from the lock (5).

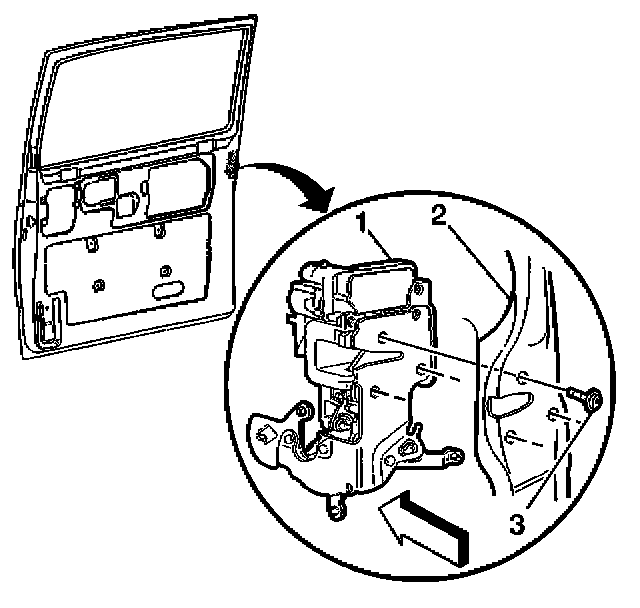

6. Remove the lock bolts (1).
7. Remove the lock from the door (2).
INSTALLATION PROCEDURE

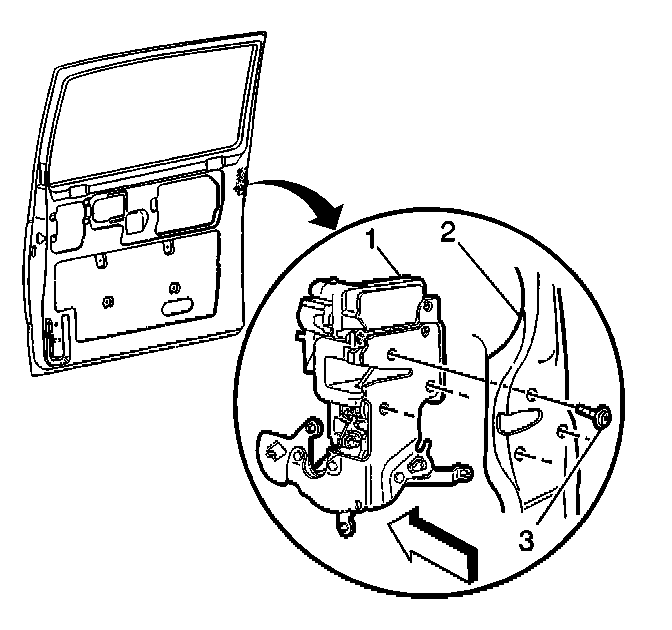

1. Install the lock to the door (2).
2. Install the lock bolts (1).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the lock bolts to 9 N.m (80 lb in).

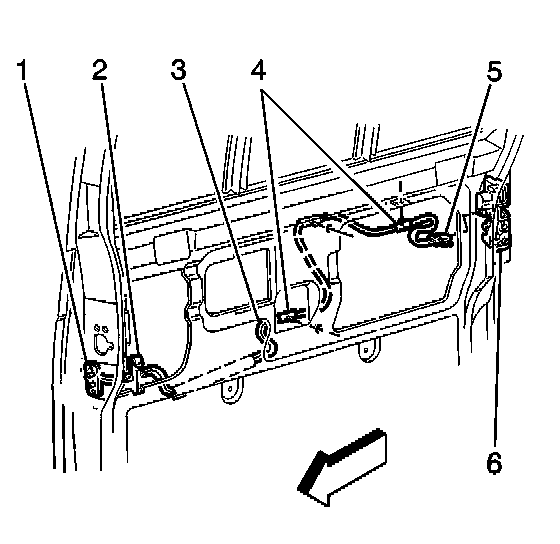

3. Connect the electrical connector (5) to the lock.

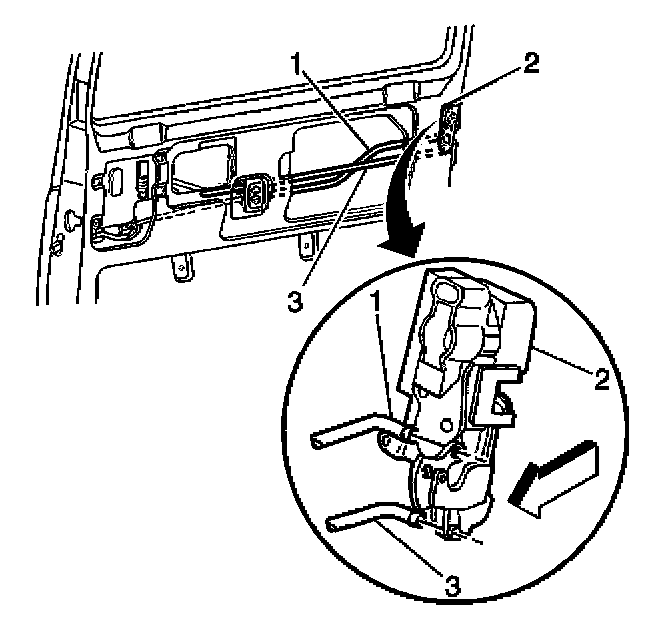

4. Install the lock rods (1 and 3).
5. Install the upper access cover, if equipped.
6. Install the water deflector.
7. Install the trim panel.
