Air Conditioning (A/C) Refrigerant Filter Replacement
AIR CONDITIONING (A/C) REFRIGERANT FILTER REPLACEMENTTOOLS REQUIRED
J 39400-A Halogen Leak Detector
REMOVAL PROCEDURE
1. Recover the refrigerant.
2. Remove the air cleaner.
3. Remove the coolant recovery reservoir.

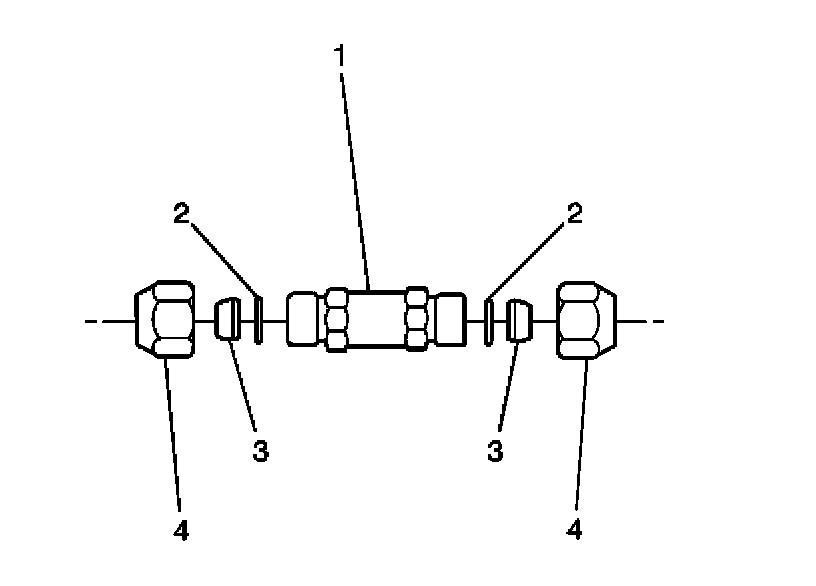

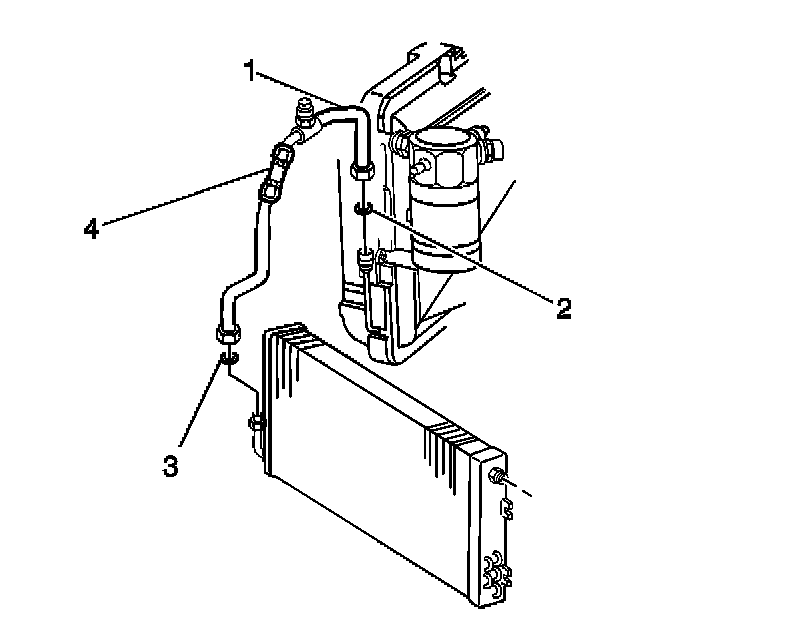

4. Loosen the nuts (4) from the A/C refrigerant filter (1).
IMPORTANT: The nuts (4) and ferrules (3) will remain on the evaporator tube. Do not try to remove.

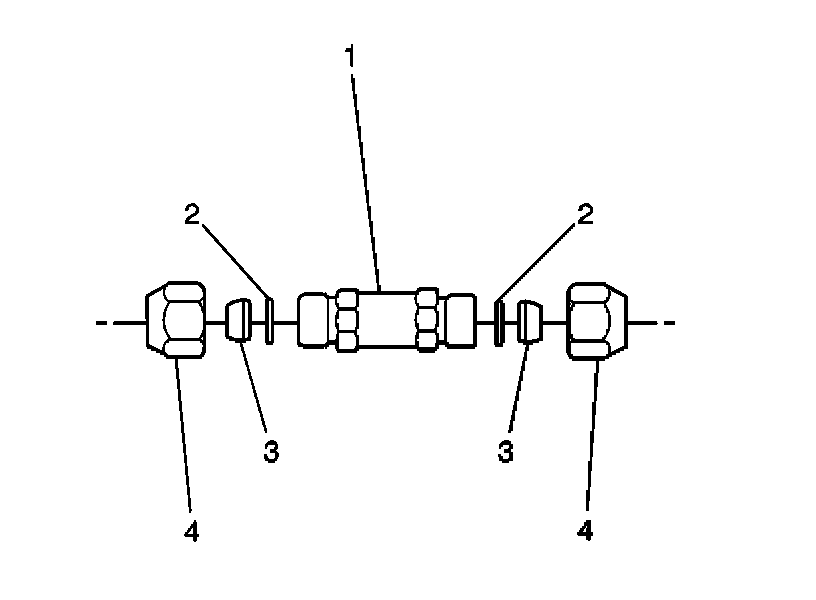

5. Remove the A/C refrigerant filter from the evaporator tube (1).
INSTALLATION PROCEDURE
1. Install the new O-rings (2) to the evaporator tube.

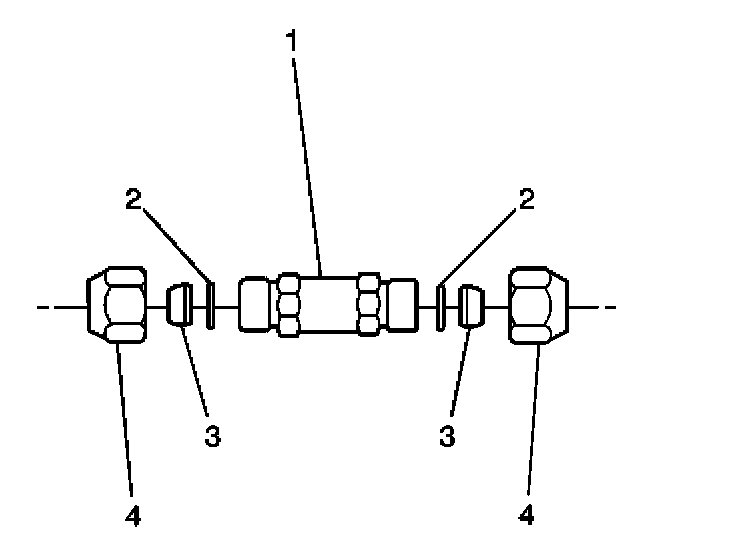

2. Install the A/C refrigerant filter to the evaporator tube (1) with the flow arrow pointing toward the evaporator.
3. Tighten the nuts (4) to the A/C refrigerant filter (1).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the nuts to 15 N.m (11 lb ft).
4. Evacuate and recharge the A/C system.
5. Leak test the fitting(s) of the repaired or reinstalled component using the J 39400-A.
6. Install the coolant recovery reservoir.
7. Install the air cleaner.
