Cowl: Service and Repair

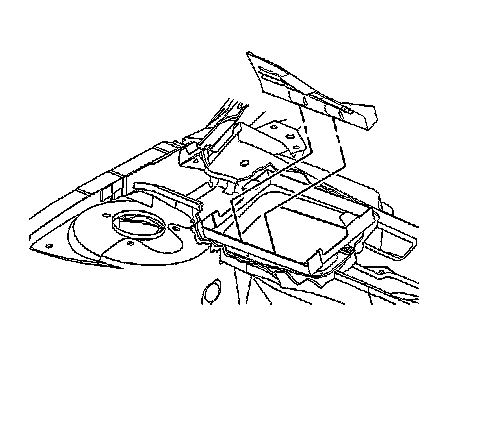

Plenum Chamber Water Deflector ReplacementRemoval Procedure 1.
Open the
hood.
2.
Remove the right side of the air inlet
grille.
3.
Remove the plenum chamber deflector from the pinch-weld flange, by lifting up and out.
Installation Procedure 1.
Install the plenum chamber deflector to the pinch-weld flange.
2.
Install the right side of the air inlet
grille.
3.
Close the
hood.
