Power Door Lock Switch: Service and Repair

POWER DOOR LOCK SWITCH REPLACEMENT

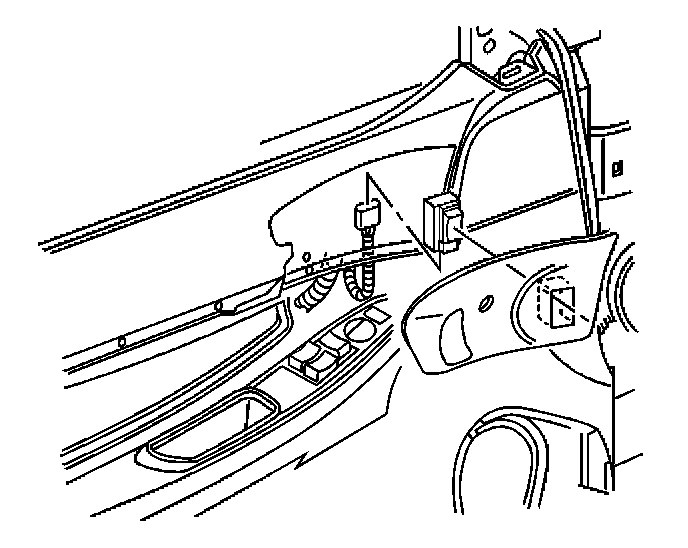

REMOVAL PROCEDURE




1. Remove the inside door handle bezel.




2. Remove the power door lock switch from the inside door handle bezel using a small, flat-bladed tool in order to release the retainers.
3. Disconnect the electrical connector from the power door lock switch.

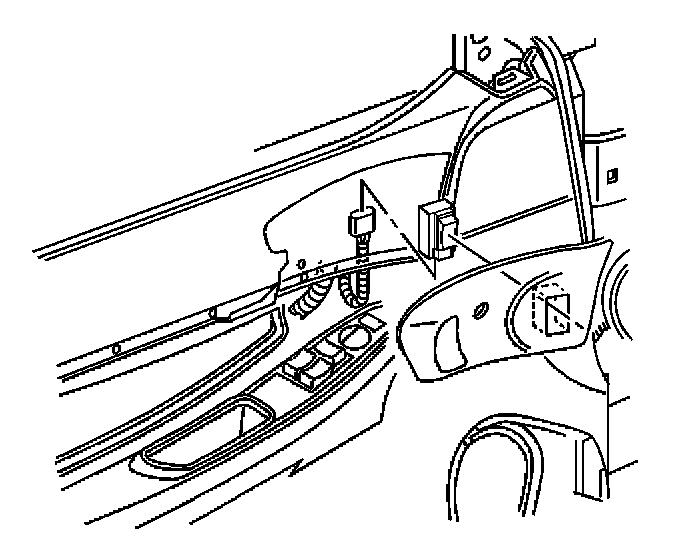

INSTALLATION PROCEDURE




1. Install the power door lock switch to the inside door handle bezel pressing into place until fully seated.
2. Connect the electrical connector to the power door lock switch.




3. Install the inside door handle bezel.
