Locking Rod Replacement - Front Door
LOCKING ROD REPLACEMENT - FRONT DOORREMOVAL PROCEDURE
1. Position the window completely up.
2. Remove the front door trim panel.
3. Remove the front door water deflector.
4. Remove the front door lock rod from the inside door handle.
5. Remove the lock rod from the locking clip.

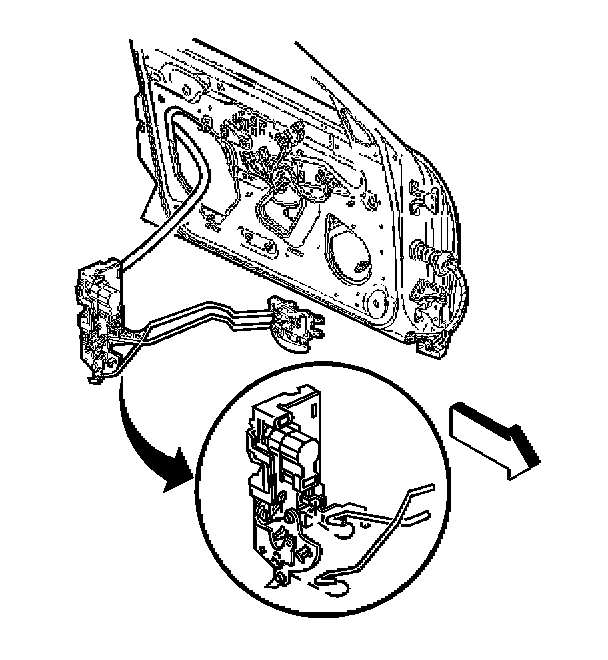

6. Rotate and remove the front door inside locking rod from the front door lock.
7. Remove the front door inside locking rod from the front door.
INSTALLATION PROCEDURE

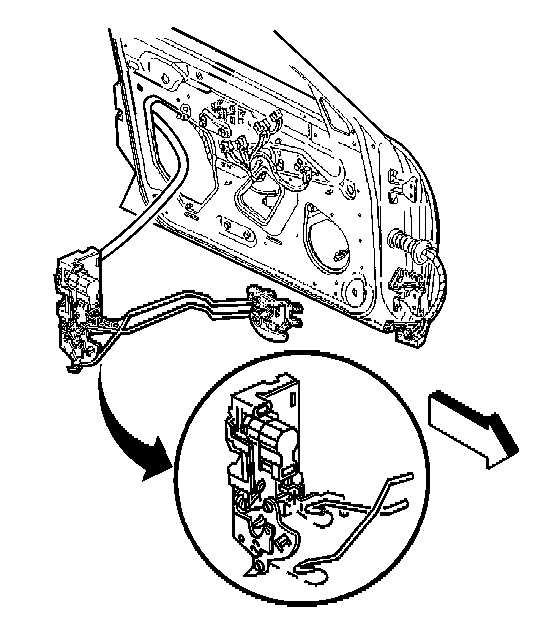

1. Install the front door inside locking rod to the front door lock.
2. Install the lock rod into the locking clip.
3. Install the front door lock rod in the inside door handle.
4. Install the front door water deflector.
5. Install the front door trim panel.
