System Diagram

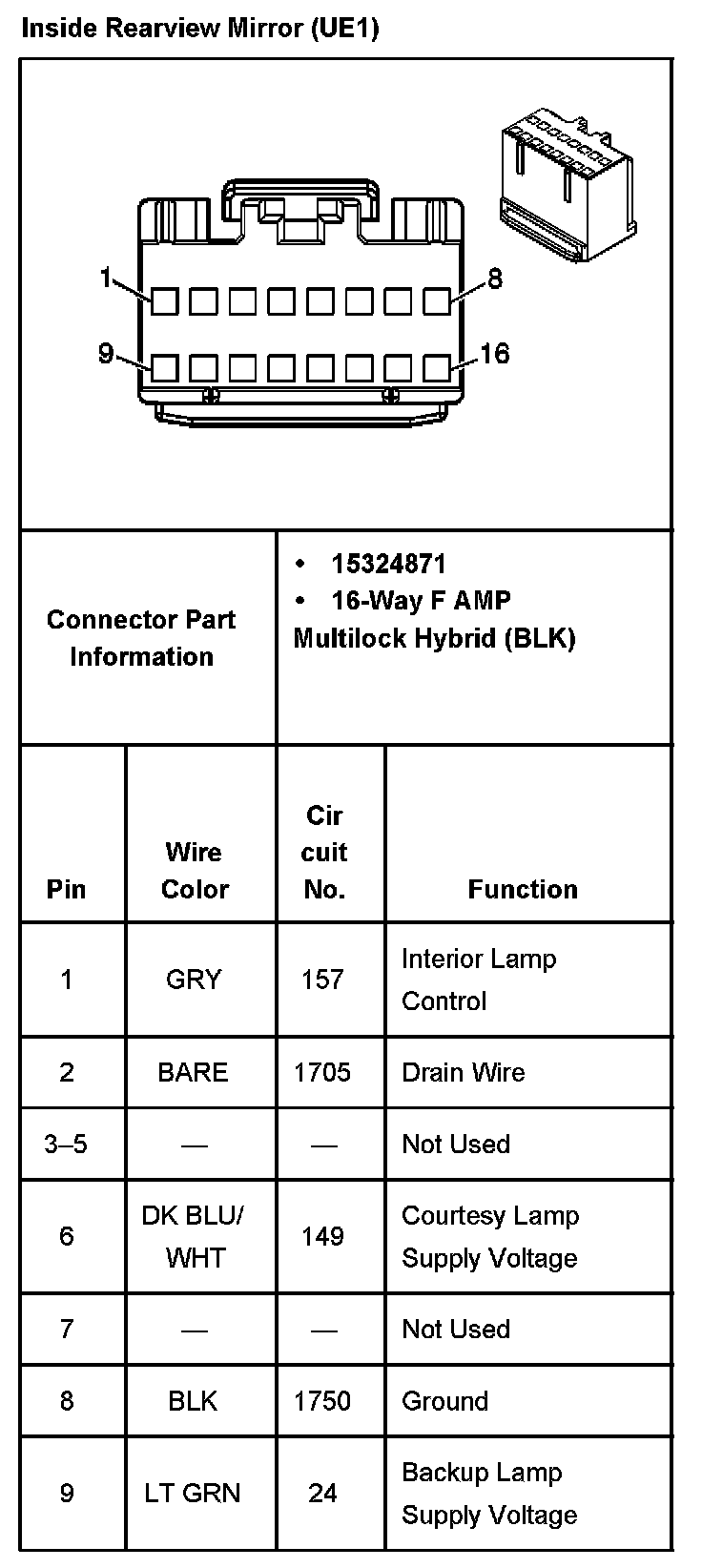

Inside Rearview Mirror (UE1) Part 1:

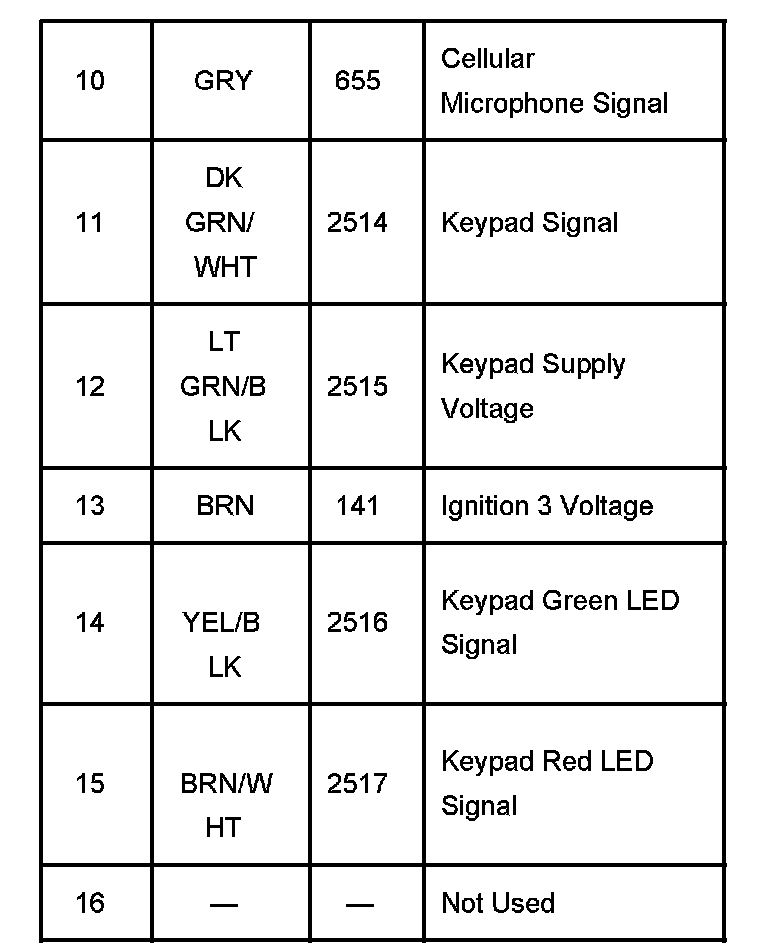

Inside Rearview Mirror (UE1) Part 2:

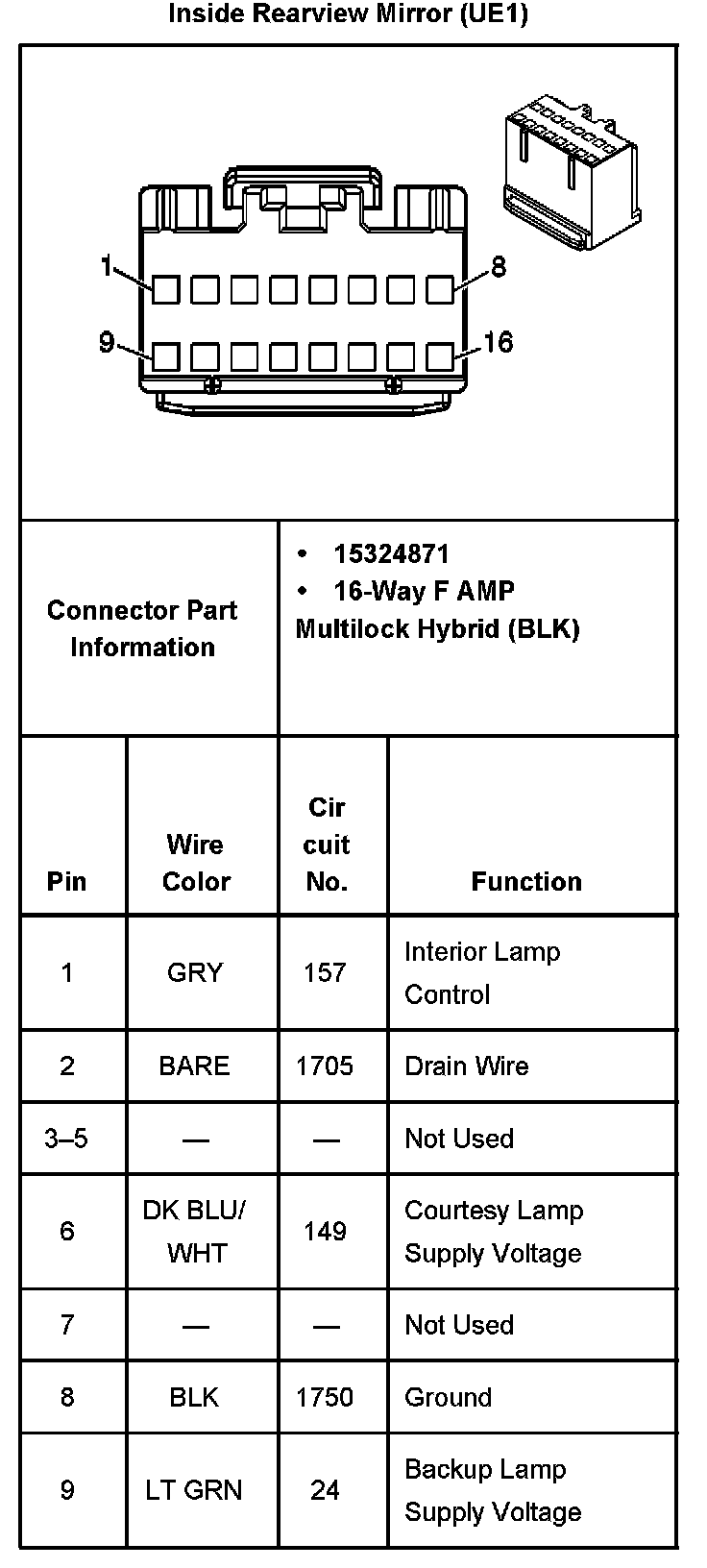

Inside Rearview Mirror With RPO Code UE1 Part 1:

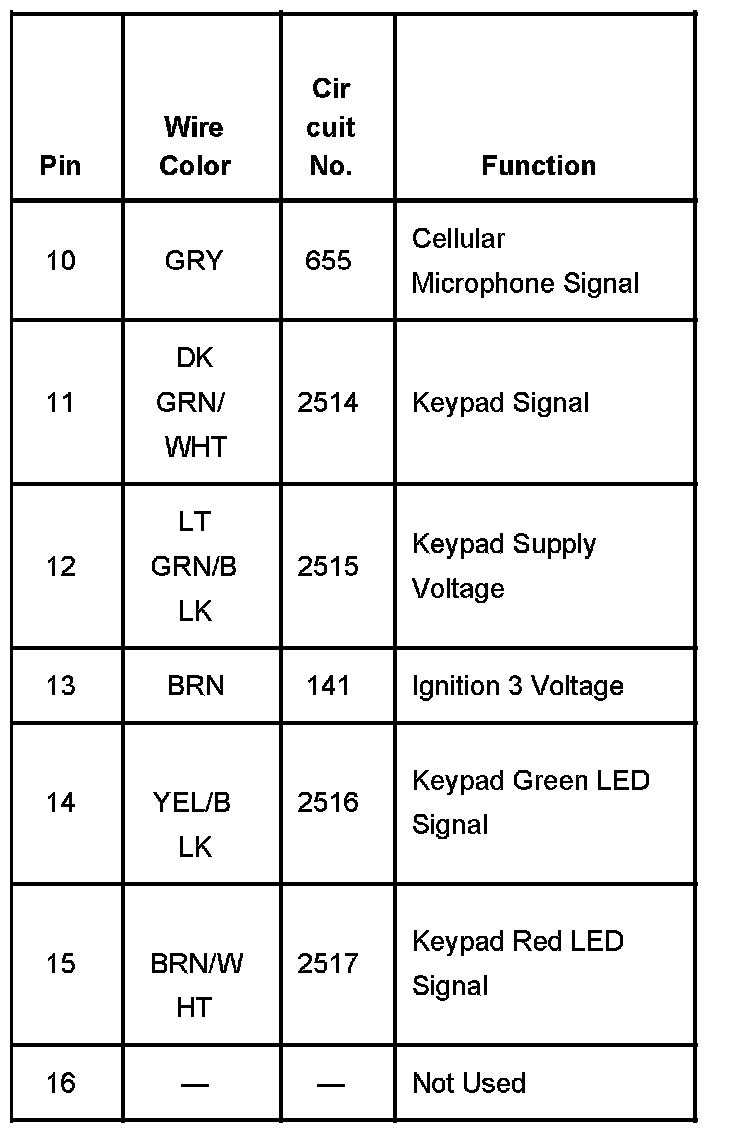

Inside Rearview Mirror With RPO Code UE1 Part 2:

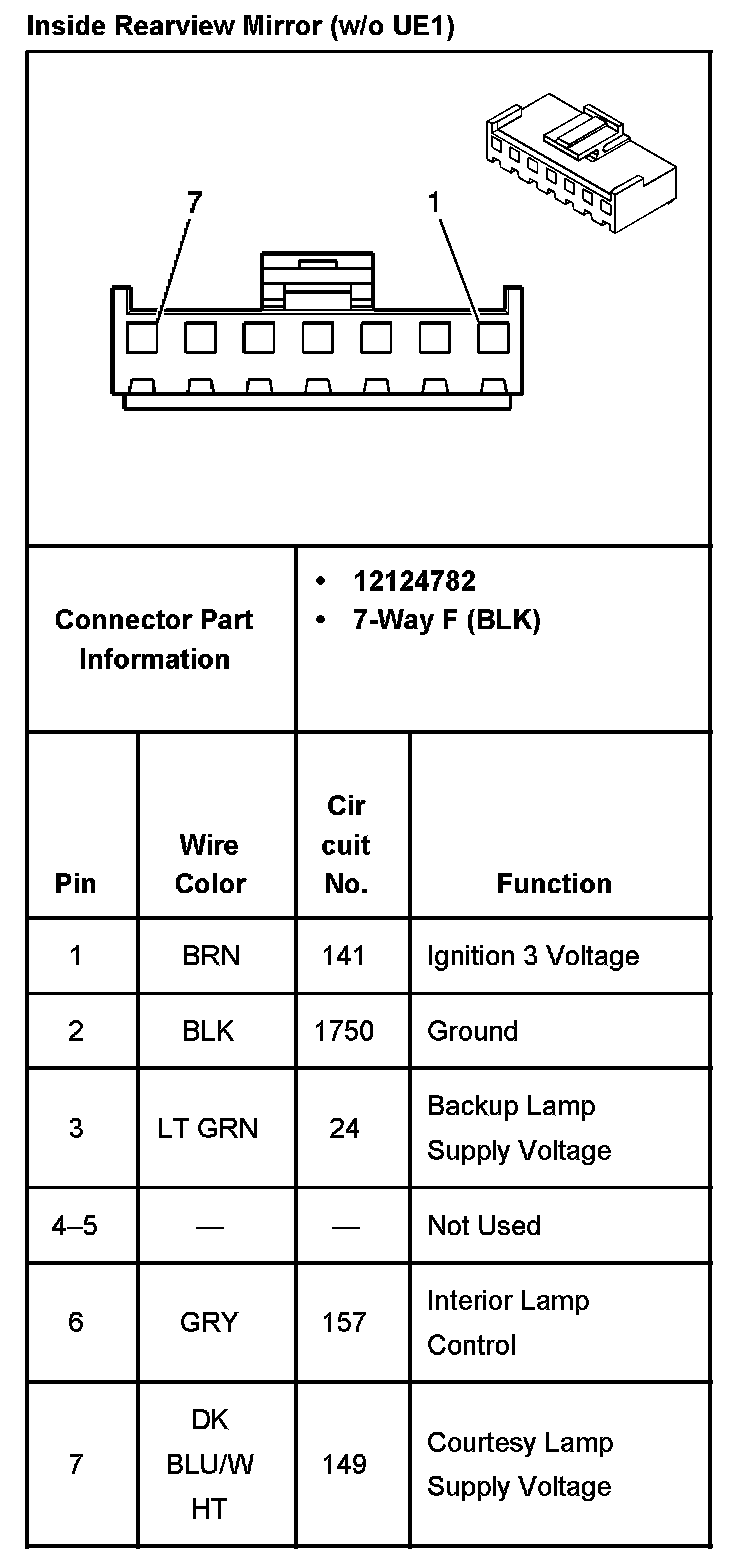

Inside Rearview Mirror Without RPO Code UE1:

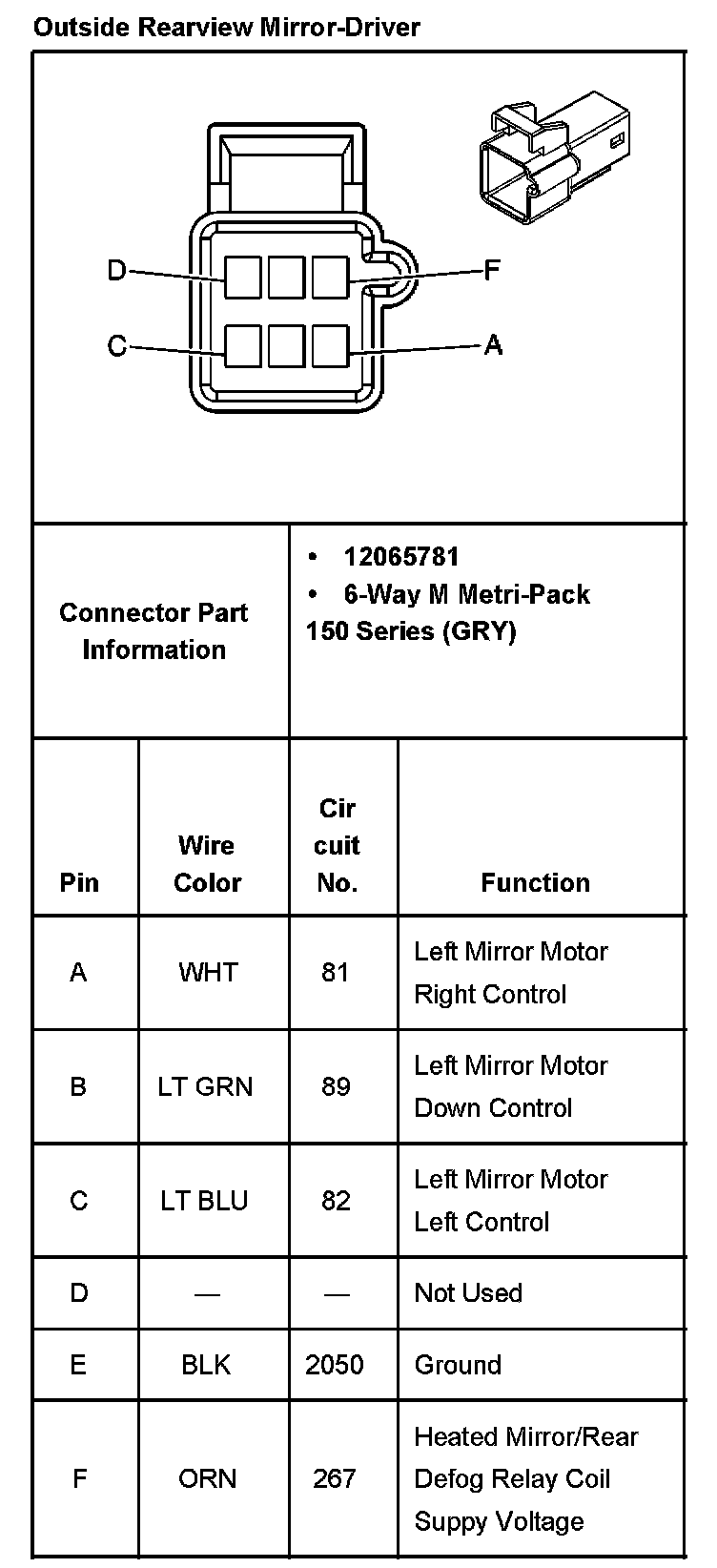

Outside Rearview Mirror-Driver:

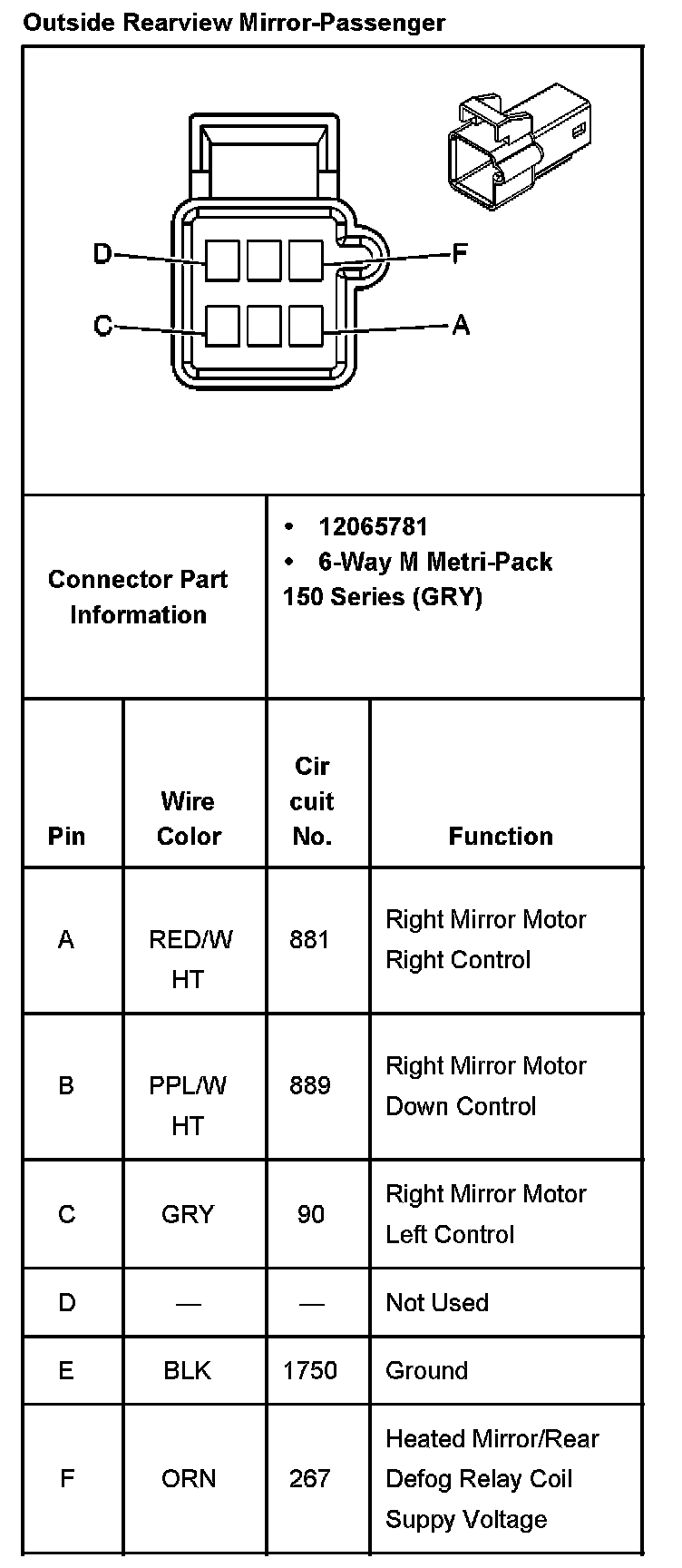

Outside Rearview Mirror-Passenger:
