Positive Crankcase Ventilation: Service and Repair

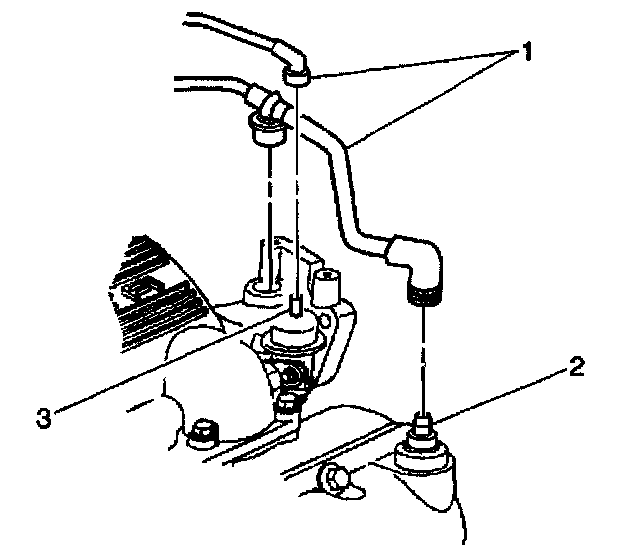

Positive Crankcase Ventilation (PCV) Valve ReplacementRemoval Procedure 1.
Remove the vacuum hoses (1) from the fuel pressure regulator (3) and the
Positive Crankcase Ventilation (PCV) valve (2).
2.
Remove the PCV valve (2).
Installation Procedure 1.
Install the PCV valve (2).
2.
Install the vacuum hoses (1) to the fuel pressure regulator (3) and the PCV valve (2).
