Flex Plate

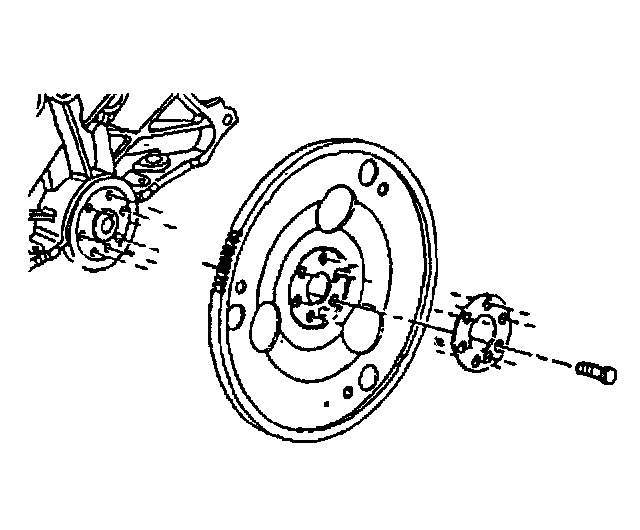

Install the flywheel bolts. Use the J 37096 to prevent flywheel rotation.
^ Tighten the bolts to 71 Nm (52 lb ft).
