Power Steering Return Hose Replacement
POWER STEERING RETURN HOSE REPLACEMENTREMOVAL PROCEDURE
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.

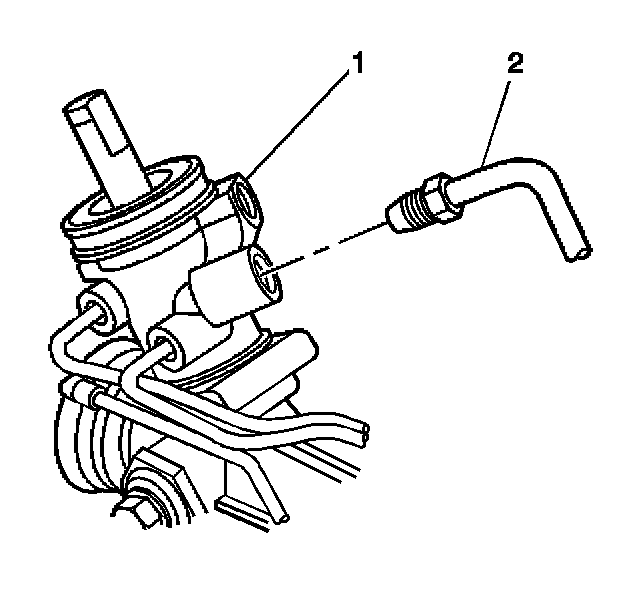

3. Remove the power steering return hose (2) from the power steering gear (1).
4. Remove the return hose (2) from the clips on the power steering gear.
5. Remove the return hose (1) from the power steering pump.

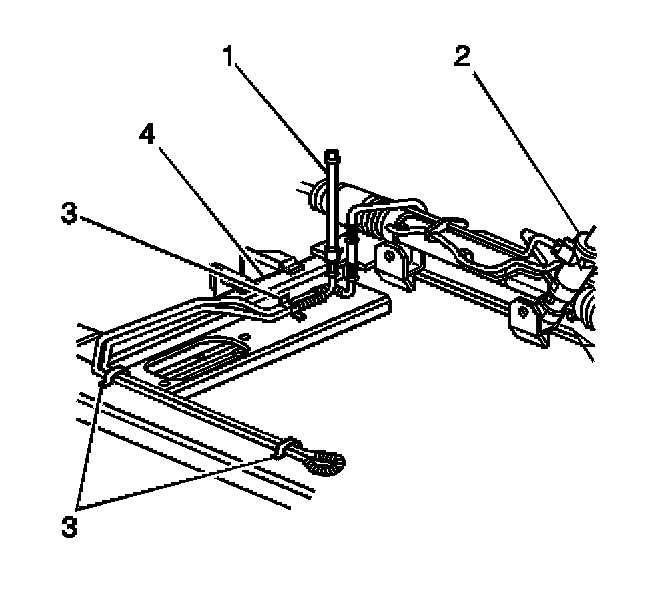

6. Remove the return hose (1) from the hose retainers (3) on the cradle (4).
7. Disconnect the clips and the electrical harnesses from the return hose (1).
8. Remove the return hose (1) from the vehicle.
INSTALLATION PROCEDURE
1. Install the return hose (1) to the vehicle.
2. Connect the clips and the electrical harnesses to the return hose (1).
3. Install the return hose (1) to the hose retainers (3) on the cradle (4).
4. Install the return hose (1) to the power steering pump.
5. Install the return hose (2) to the clips on the power steering gear.
6. Install the return hose (1) to the power steering gear (1).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the fitting to 27 N.m (20 lb ft).
7. Install the tire and wheel assembly.
8. Lower the vehicle.
9. Fill the power steering fluid reservoir. Refer to Checking and Adding Power Steering Fluid.
10. Bleed the power steering system. Refer to Bleeding the Power Steering System.
11. Inspect the power steering system for leaks.
