Rear Window Defogger Relay

Rear DEFOG Relay

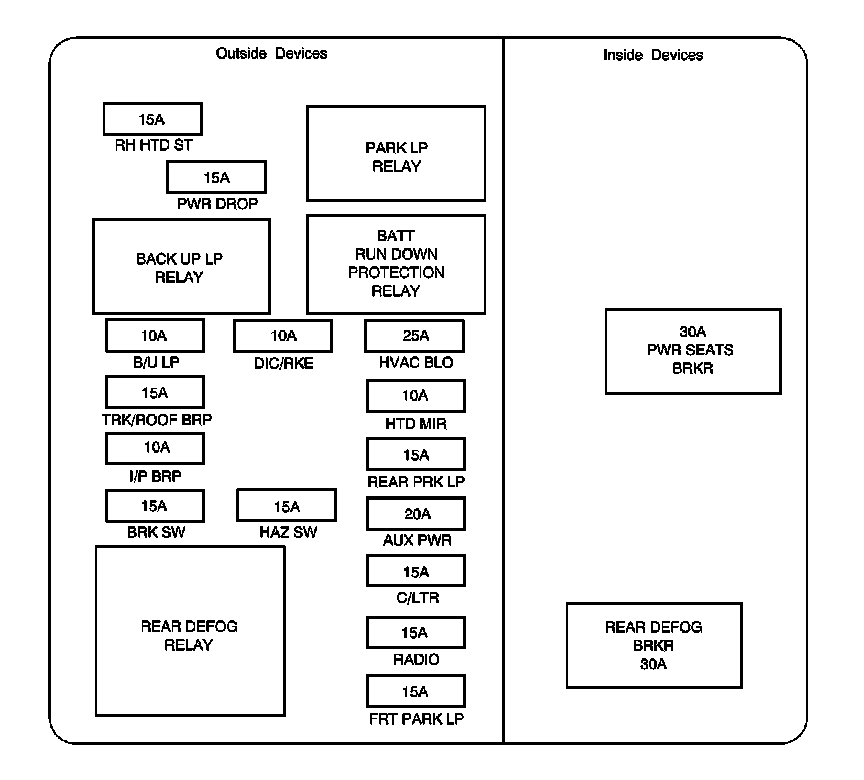

Fuse Panel - RH I/P:

Right Side Of Instrument Panel:

Location View:

The Rear DEFOG Relay is located inside the Junction Block - Right I/P. The Junction Block - Right I/P is located on the right side of the instrument panel, behind an access panel.
