Drum Brake System: Service and Repair

Drum Brake Hardware Replacement

^ Tools Required
^ J 38400 Brake Shoe Spanner and Spring Remover

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.





2. Remove the rear tire and wheel assembly.

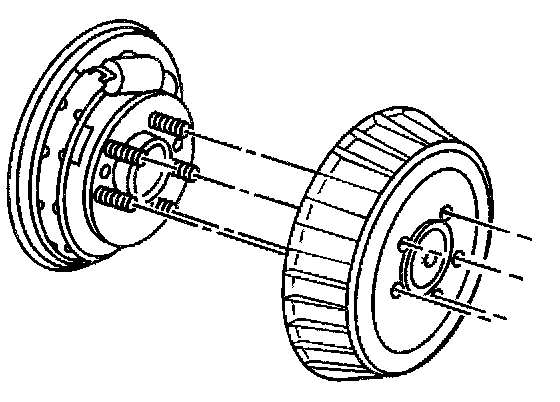

3. Remove the brake drum.
4. Remove the brake shoes.
5. Replace all necessary hardware.

Installation Procedure
1. Install the brake shoes with all the necessary NEW hardware.





2. Adjust the drum brake system.
3. Install the brake drum.
4. Install the rear tire and wheel assembly.
5. Lower the vehicle.
