Malibu V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Oil Pump Assembly
Oil Pump Assembly

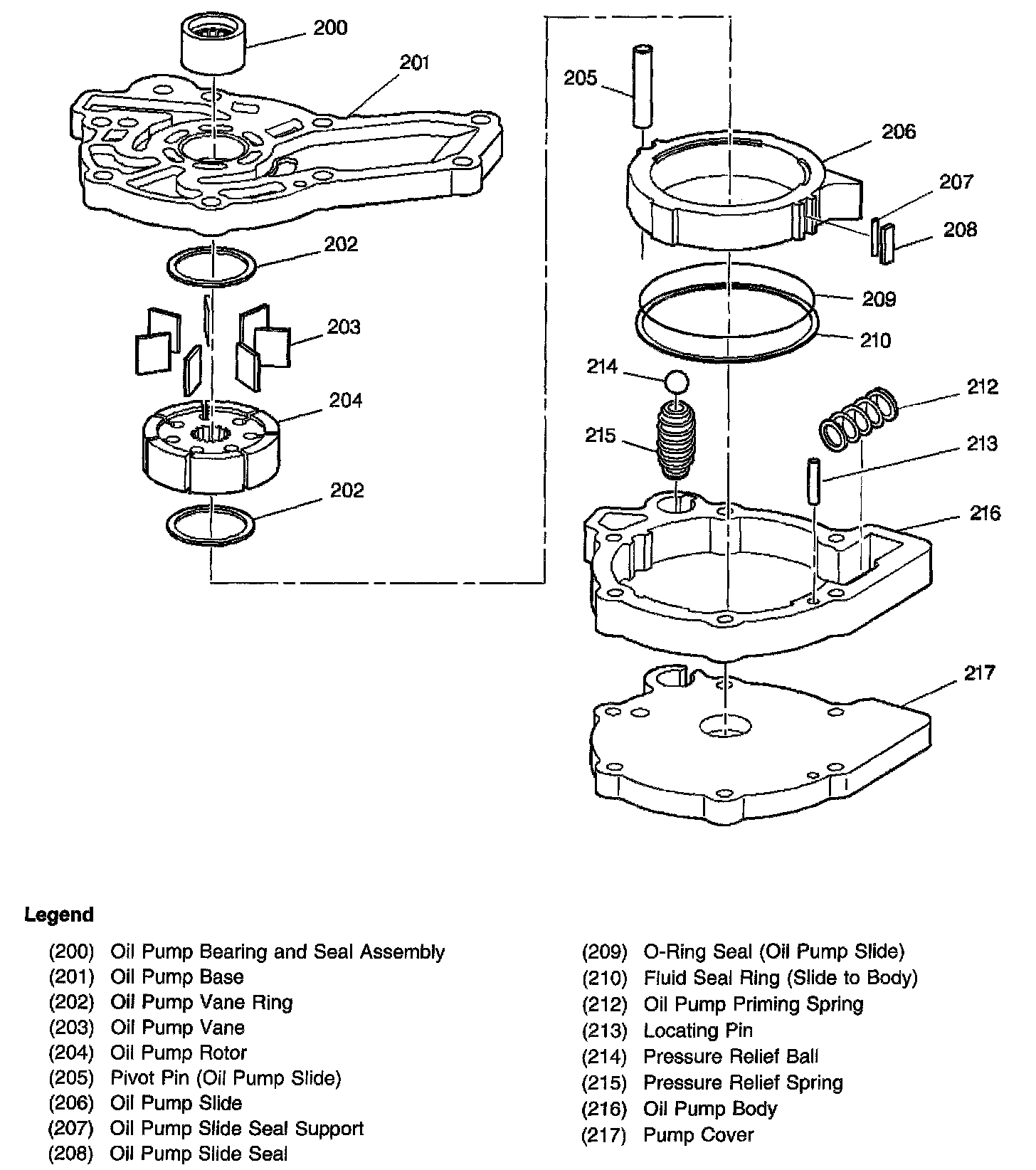

Oil Pump Assembly:
