28. Timing Chain and Sprocket Removal

Timing Chain and Sprockets Removal

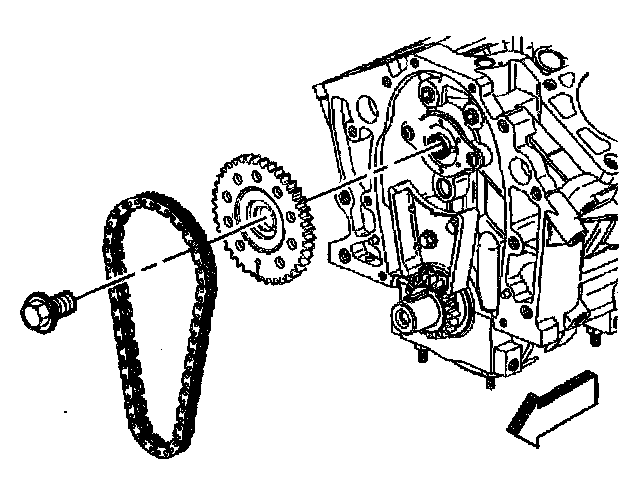

1. Remove the camshaft sprocket bolt.
2. Remove the camshaft sprocket and timing chain.

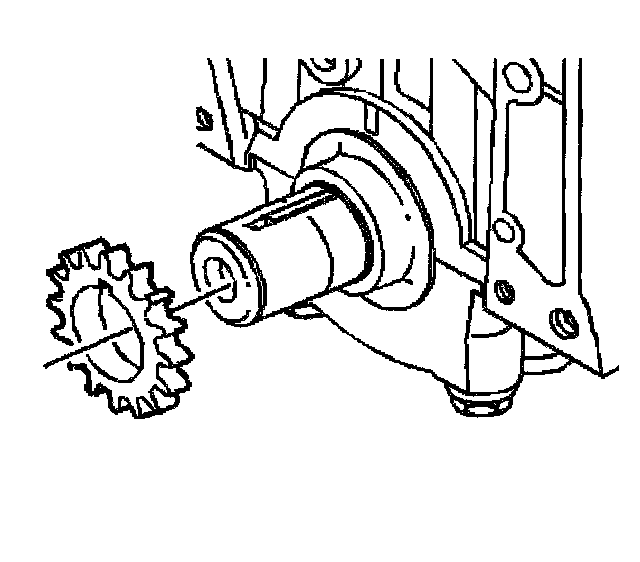

3. Remove the crankshaft sprocket.

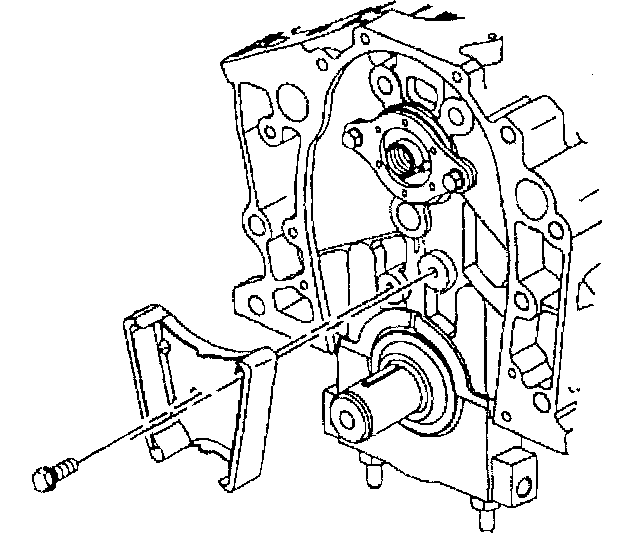

4. Remove the timing chain dampener bolts.
5. Remove the timing chain dampener.
