77. Cylinder Head Installation - Right

Cylinder Head Installation - Right

^ Tools Required
- J 36660-A Torque Angle Meter





1. Install the dowel pins (cylinder head locator) (if necessary).
2. Inspect the dowel pins (cylinder head locator) for proper installation.

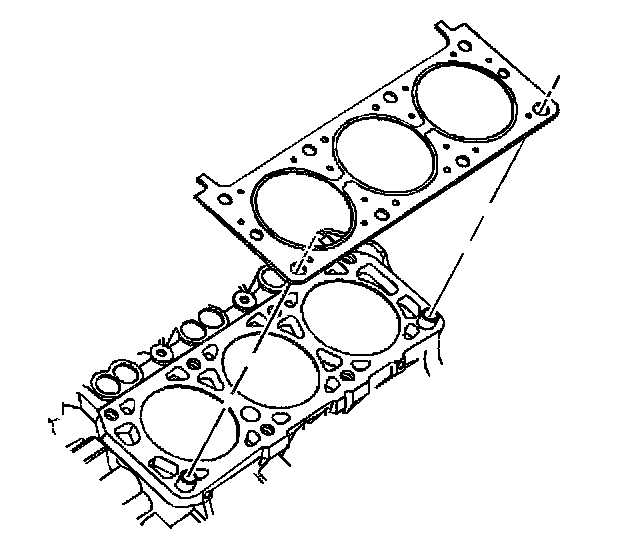

3. Install the cylinder head gasket.

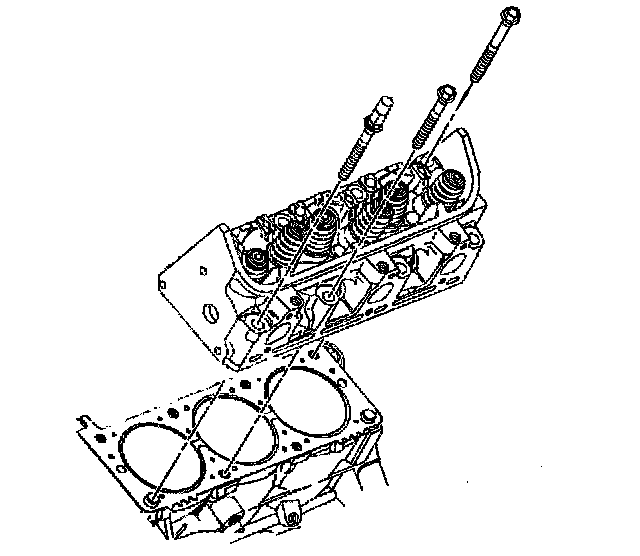

4. Install the cylinder head.

Notice: Refer to Fastener Notice in Service Precautions.





5. Install the cylinder head bolts.
Tighten the cylinder head bolts in sequence to 60 Nm (44 ft. lbs.). Turn the bolts an additional 95 degrees using the J 36660-A.
