A/C System Pressure - Zone Classification

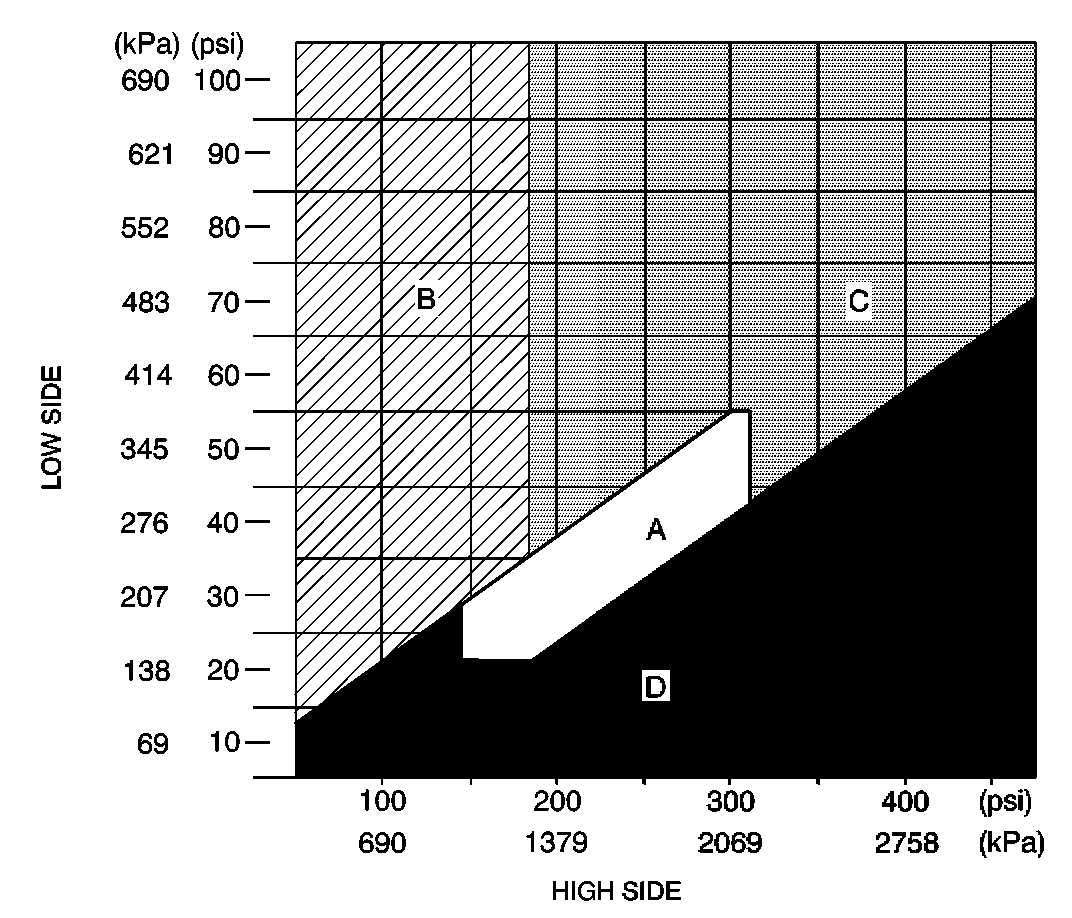

A/C System Pressure - Zone Classification:

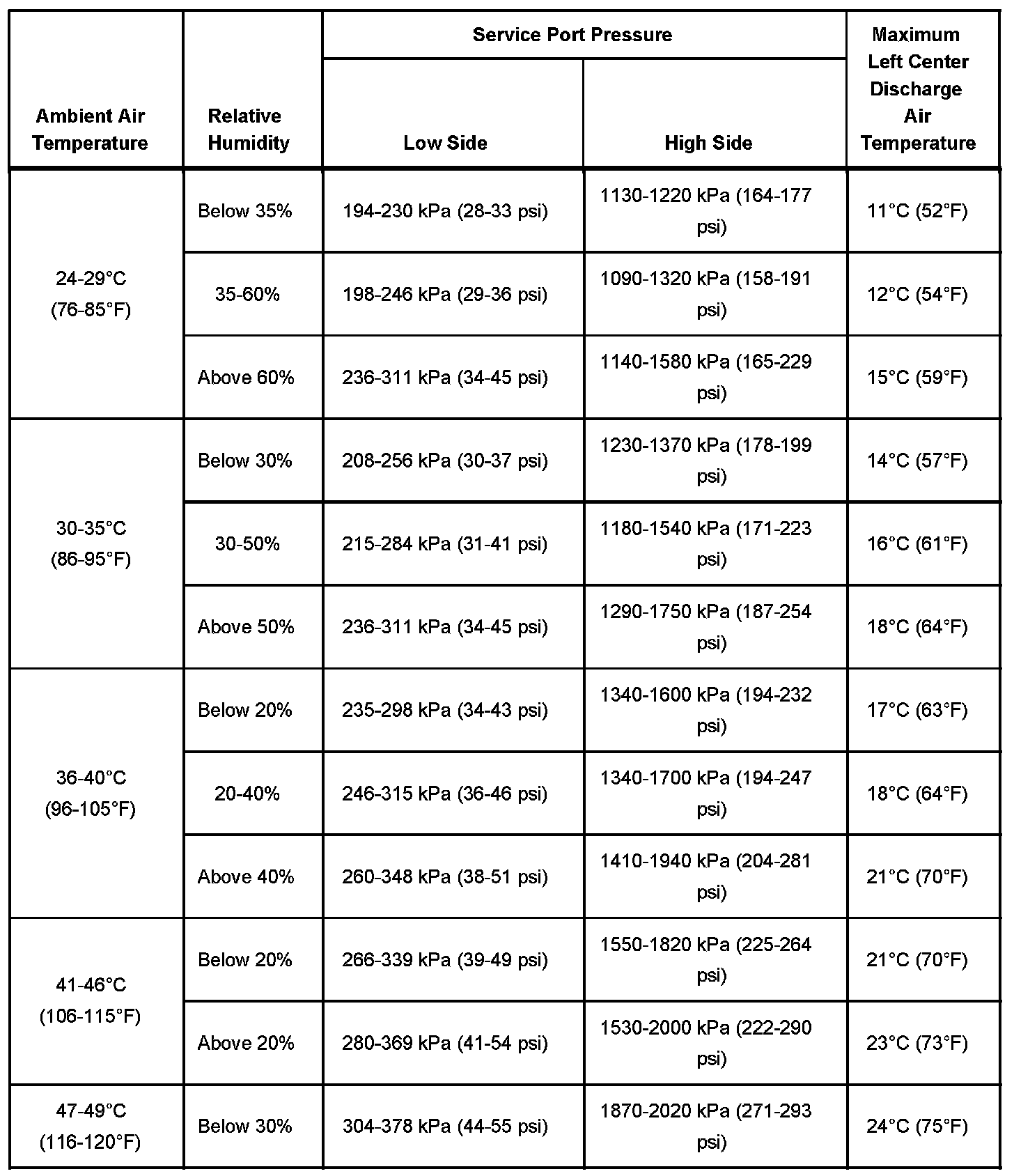

A/C Performance Table Part 1:

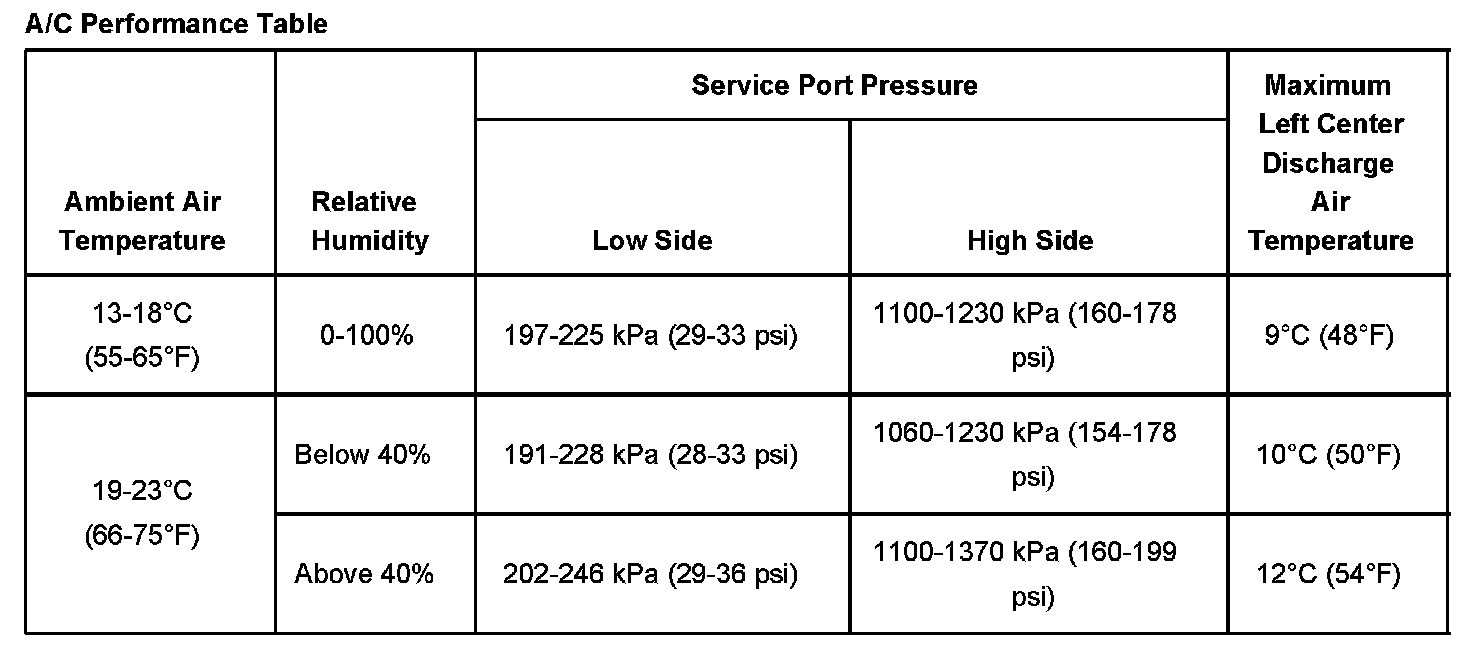

A/C Performance Table Part 2:
