Fuel System Diagnosis

SYSTEM DESCRIPTION
When the ignition is turned ON, the powertrain control module (PCM) turns ON the fuel pump relay, which turns ON the in-tank fuel pump. The in-tank fuel pump remains ON as long as the engine is cranking or running and the PCM is receiving ignition reference pulses. If there are no ignition reference pulses, the PCM turns the in-tank fuel pump OFF 2 seconds after the ignition is turned ON or 2 seconds after the engine stops running.

The in-tank fuel pump is an electric pump attached to the fuel sender assembly. The fuel pump is designed to provide fuel at a pressure above the pressure needed by the fuel injectors. A fuel pressure regulator, attached to the fuel rail, keeps the fuel available to the fuel injectors at a regulated pressure. Unused fuel is returned to the fuel tank by a separate fuel return pipe.

DIAGNOSTIC AIDS
- A hard start or long crank time when the engine is cold can be caused by low fuel pump volume.
- The fuel pressure should build quickly when the fuel pump is commanded ON.
- If you must command the fuel pump on several times for the fuel pressure to build, suspect low fuel pump volume.
- For an intermittent condition, refer to Intermittent Conditions. Intermittent Conditions

TEST DESCRIPTION

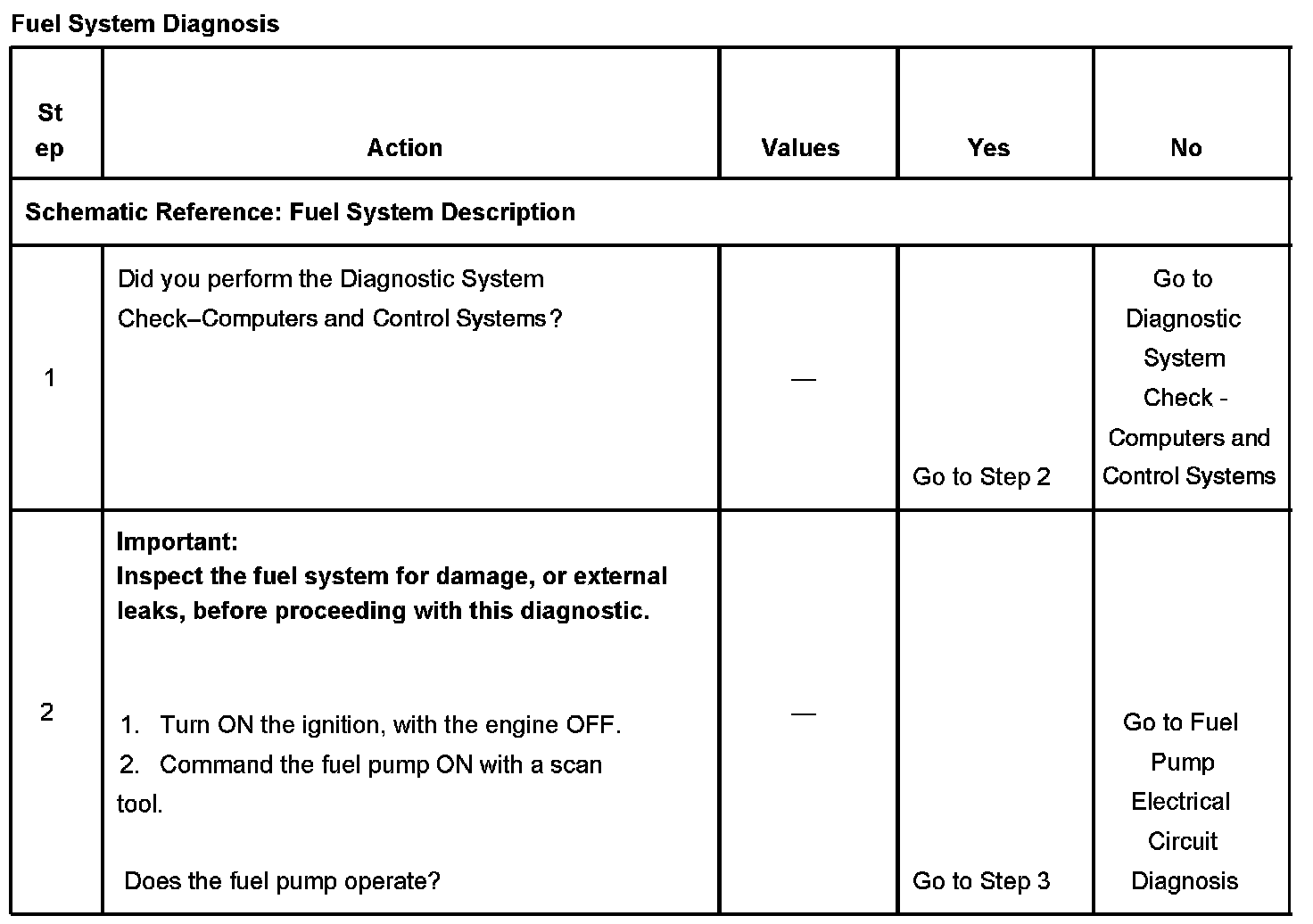

Steps 1-2:

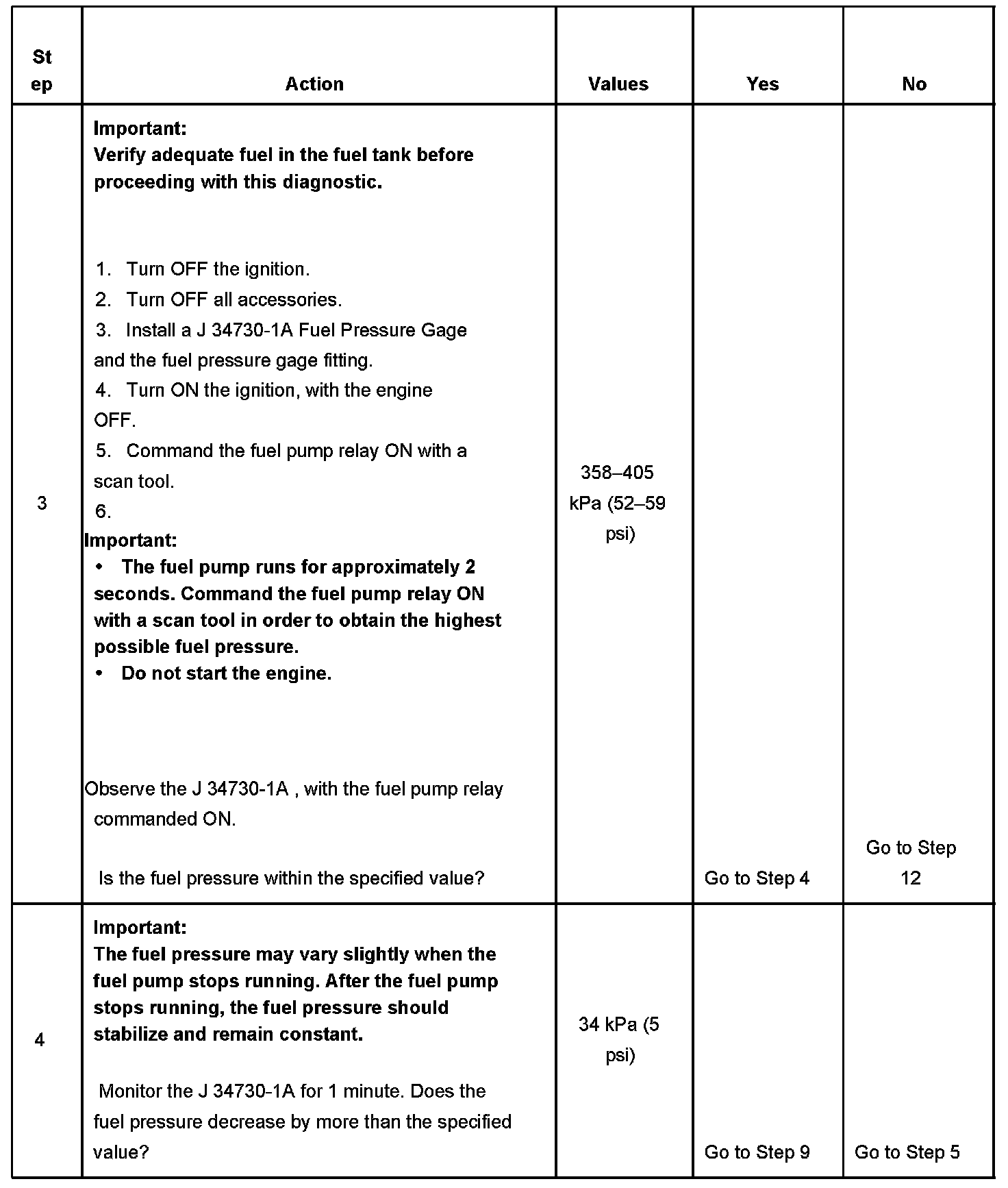

Steps 3-4:

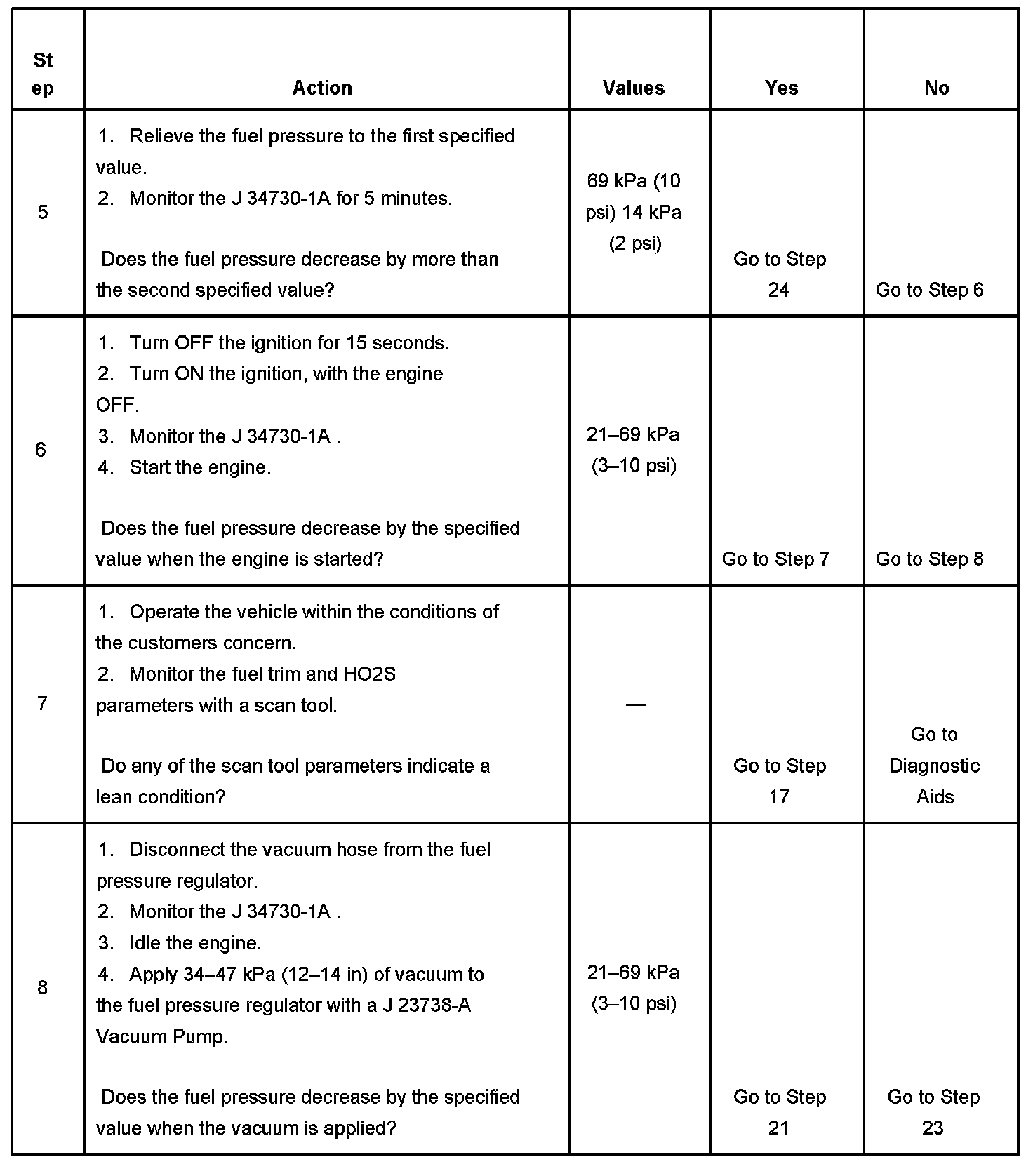

Steps 5-8:

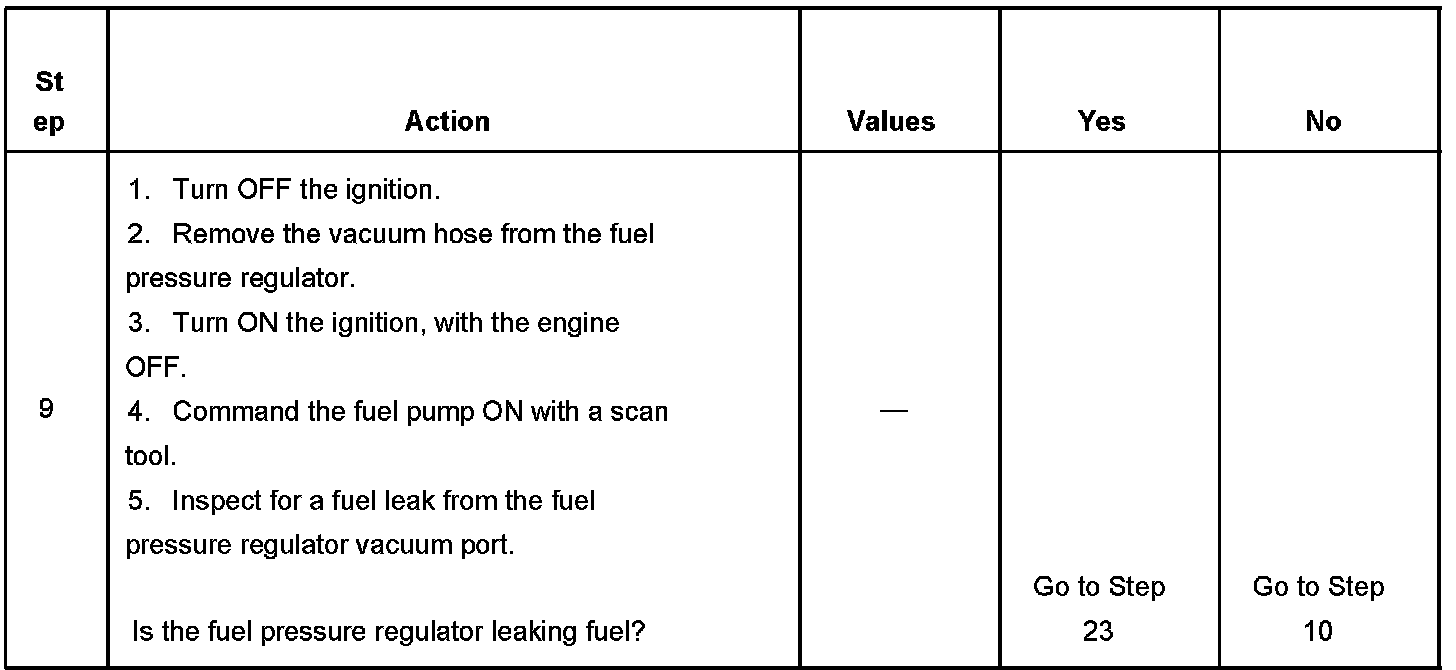

Step 9:

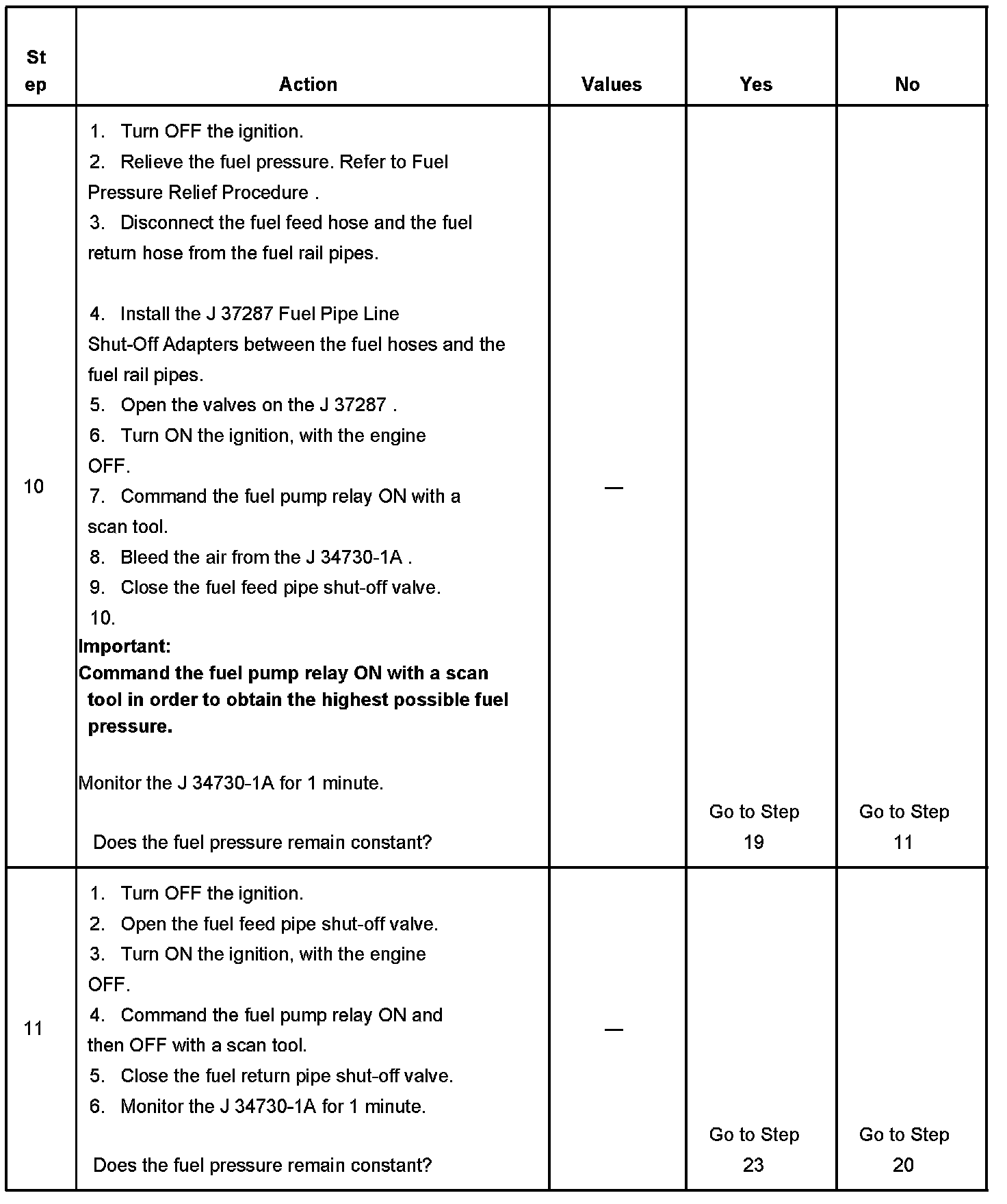

Steps 10-11:

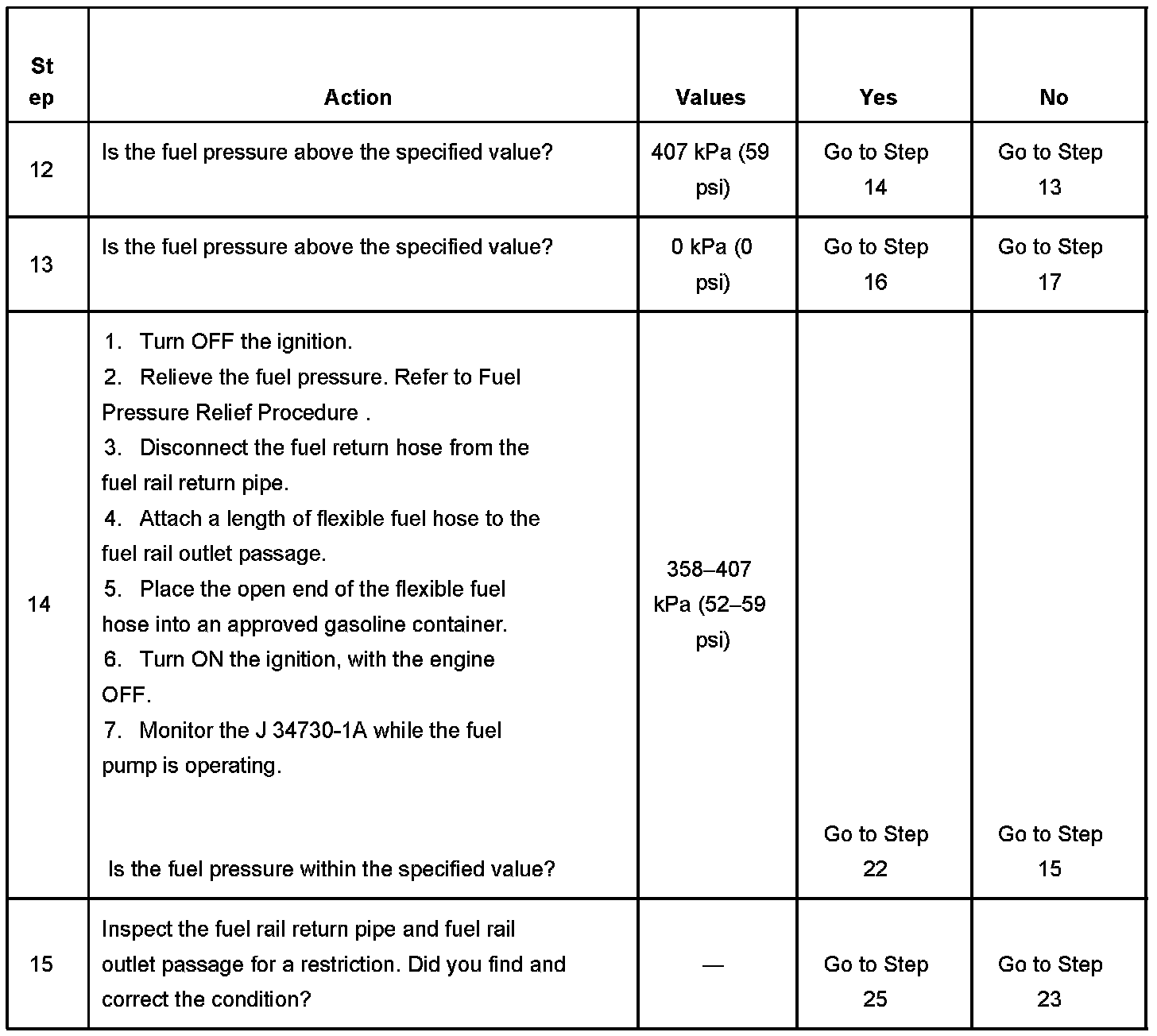

Steps 12-15:

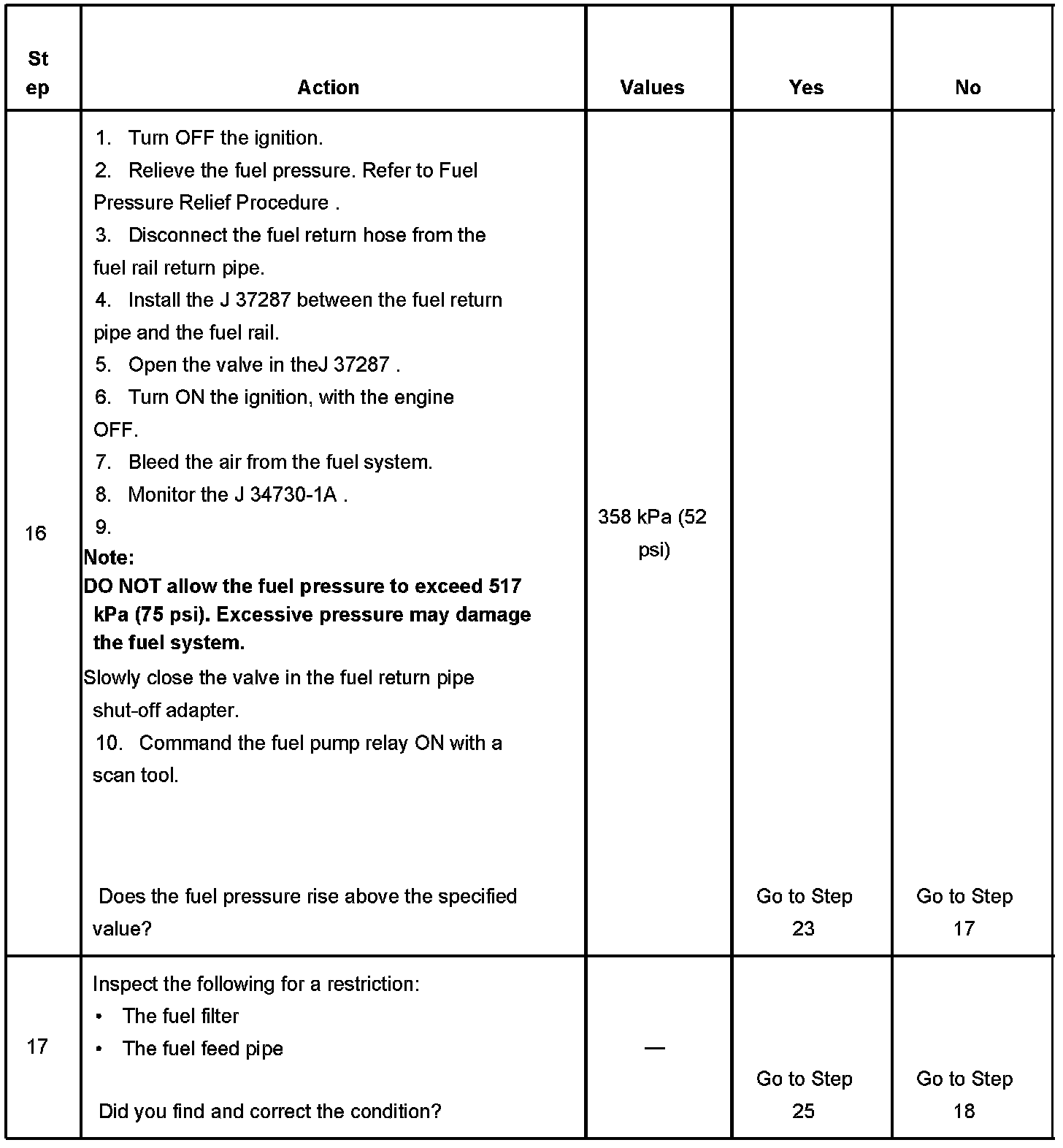

Steps 16-17:

Steps 18-22:

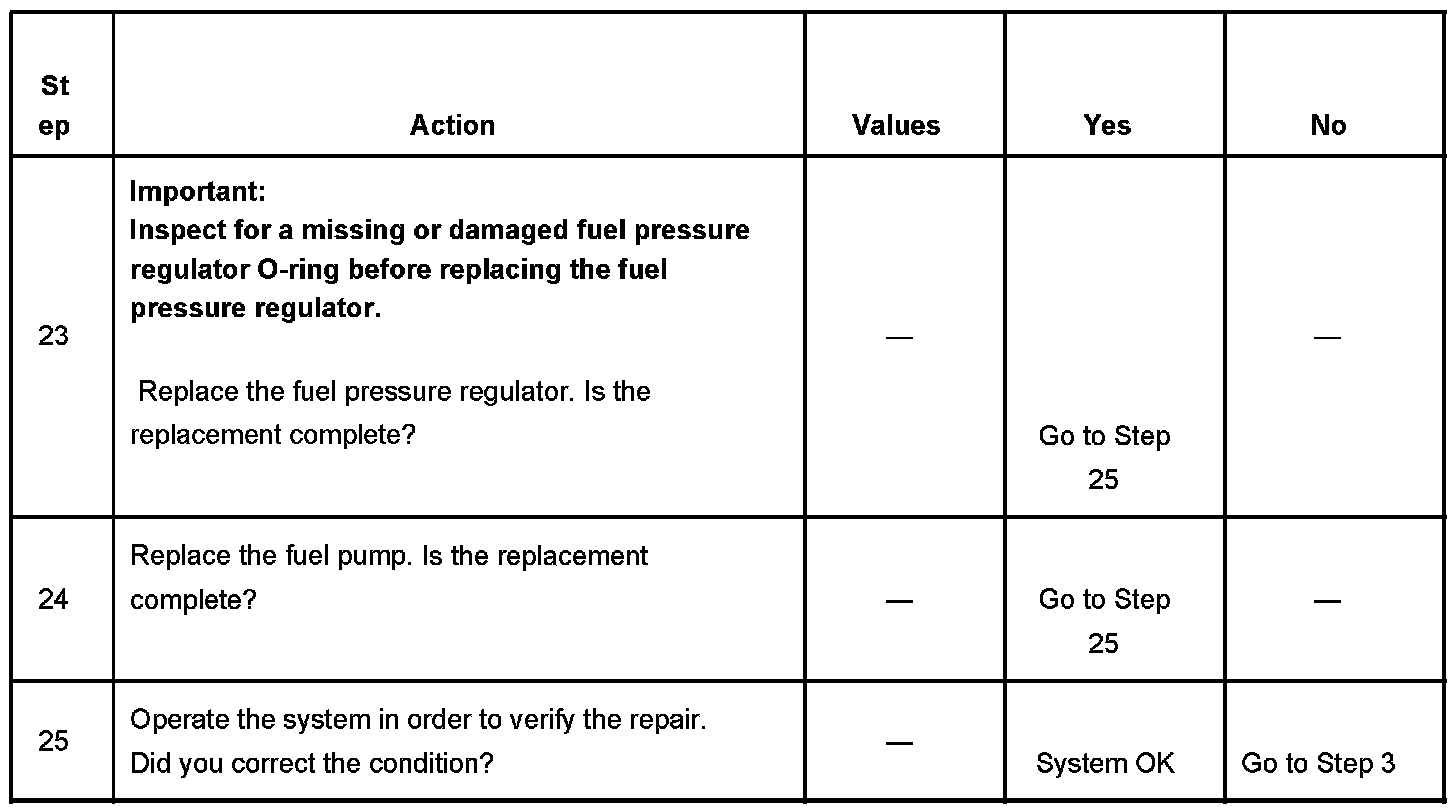

Steps 23-25:

The numbers below refer to the step numbers on the diagnostic table.
2. This step verifies that the fuel pump is operating.
4. This step tests for an internal fuel leak. If the fuel pressure drops during this test, then an internal loss of pressure is indicated.
6. This step tests the fuel pressure regulator. The fuel pressure regulator is controlled by engine vacuum. With engine vacuum applied, the pressure should drop the specified value.
9. This step inspects the fuel pressure regulator for a fuel leak from the vacuum port. If fuel leaks from the fuel pressure regulator while the fuel pump is commanded ON, replace the fuel pressure regulator.
10. This step tests for a loss of fuel pressure between the fuel feed pipe shut-off adapter and the fuel pump.
11. This step tests for a leaking fuel injector, or fuel pressure regulator. If the fuel pressure remains constant during this test, the fuel injectors are not leaking fuel.
14. This step tests for a restricted fuel return pipe. If the fuel pressure is within the specified values, a restriction in the fuel return pipe is indicated.
16. This step determines if the fuel pressure regulator, or the fuel pump, is the cause of the low fuel pressure. If the pressure rises above the specified value, the fuel pump is OK.
