Shift Linkage: Service and Repair

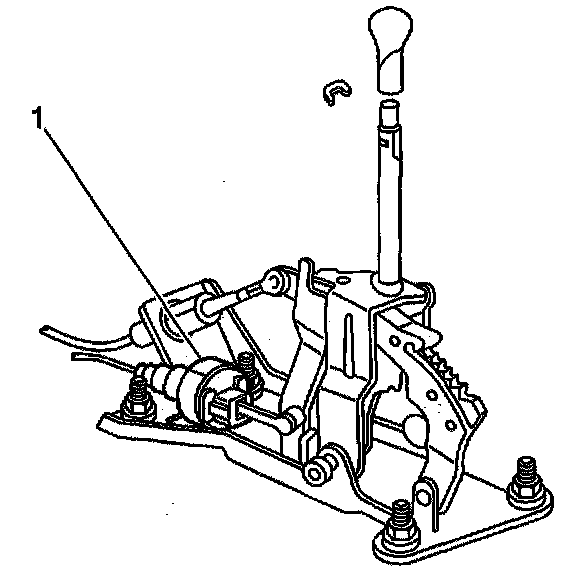

Floor Shift Control ReplacementRemoval Procedure
1. Disconnect the battery negative cable.
2. Remove the automatic transmission control lever handle retainer.
3. Remove the automatic transmission control lever handle.
4. Remove the console.
5. Remove the range select lever cable retainer.
6. Remove the range select lever cable from the automatic transmission shift control.
7. Remove the electrical connector.

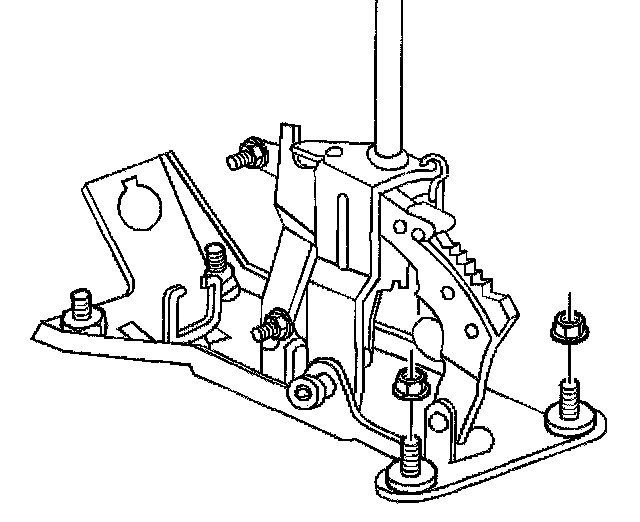

8. Remove the automatic transmission control bolts.
9. Remove the automatic transmission shift control.
Installation Procedure

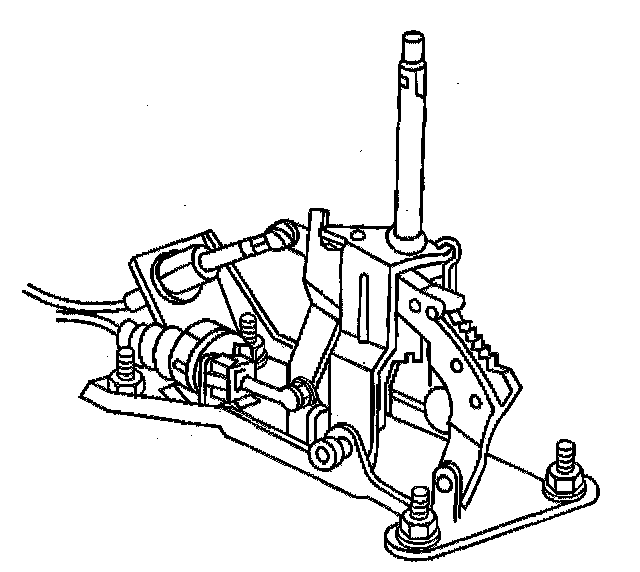

1. Install the automatic transmission shift control.

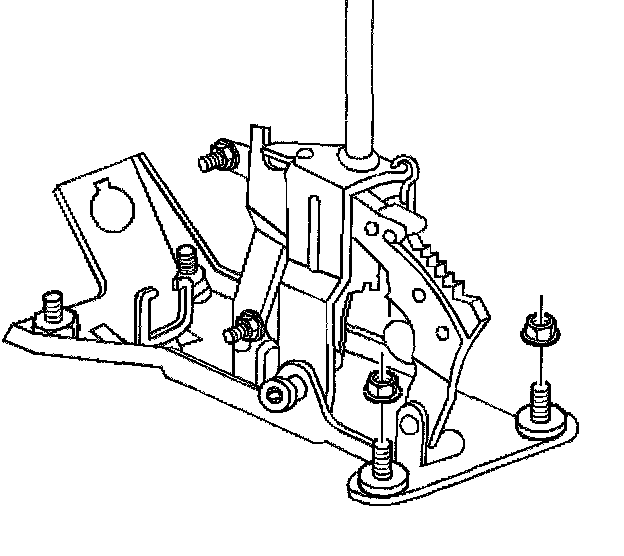

2. Install the automatic transmission shift control bolts.

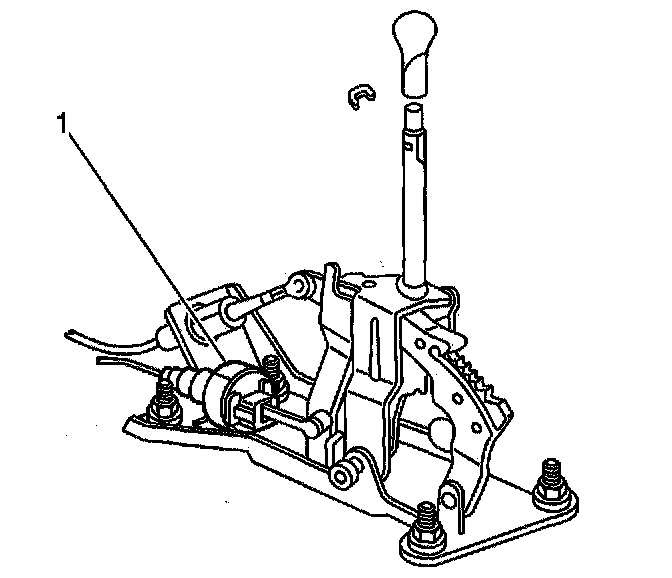

3. Install the electrical connector.
4. Install the range select lever cable to the automatic transmission control.
5. Install the range select lever cable retainer.
6. Install the console.
7. Install the automatic transmission control lever handle.
8. Install the automatic transmission control lever handle retainer.
9. Connect the battery negative cable.
