Transmission Mount Replacement - Side
Removal Procedure
1. Raise and support the vehicle.
2. Remove the left front wheel and tire assembly.
3. Remove the left front splash shield.

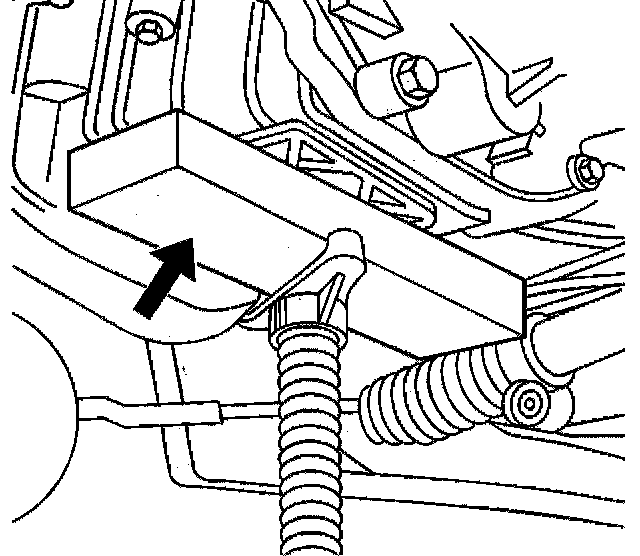

4. Install a jackstand and a block of wood to support the transaxle.

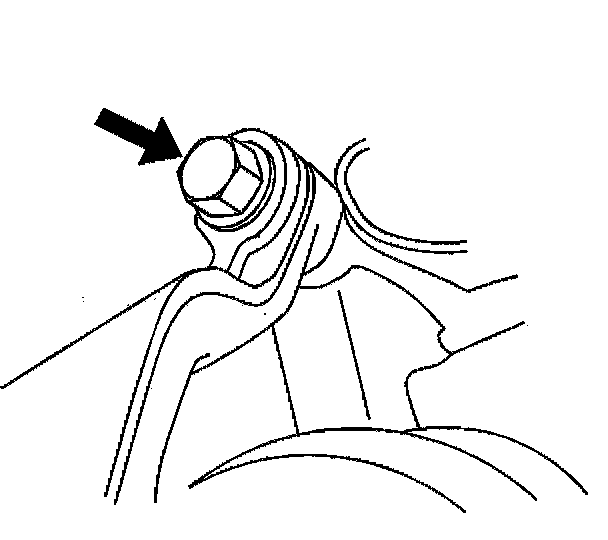

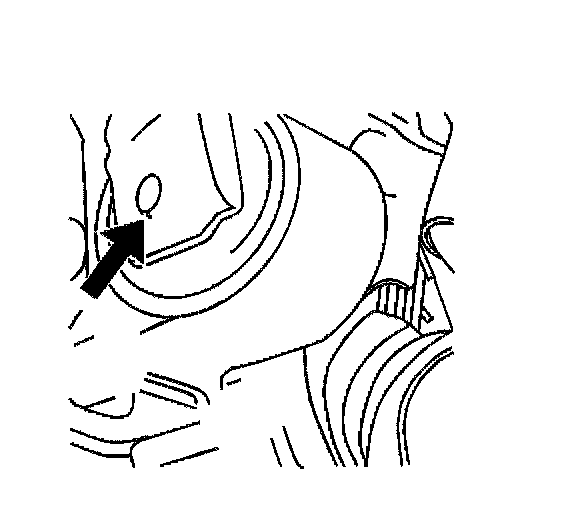

5. Remove the thru-bolt from the transmission mount.

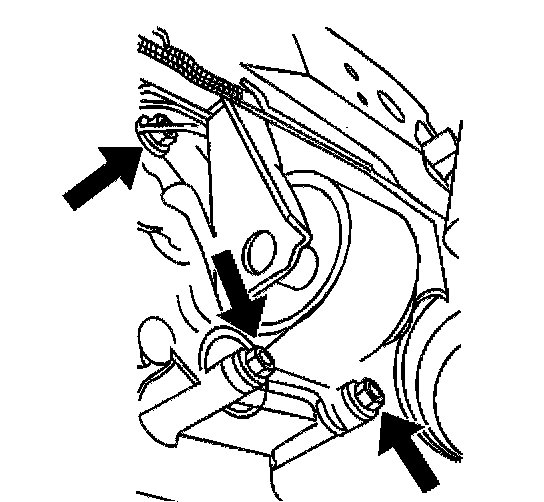

6. Unthread the rear upper mount bolt and leave in place.
7. Remove the remaining 3 mount bolts.
8. Remove the mount.




Installation Procedure







1. Transfer the rear upper mount to the new mount.
2. Position the mount and start the rear upper bolt into the threads.







3. Install the remaining 3 bolts.







Notice: Refer to Fastener Notice in Cautions and Notices.
Fastener Notice

4. Tighten all 4 of the mount bolts.
Tighten the bolts to 66 Nm (49 ft. lbs.).

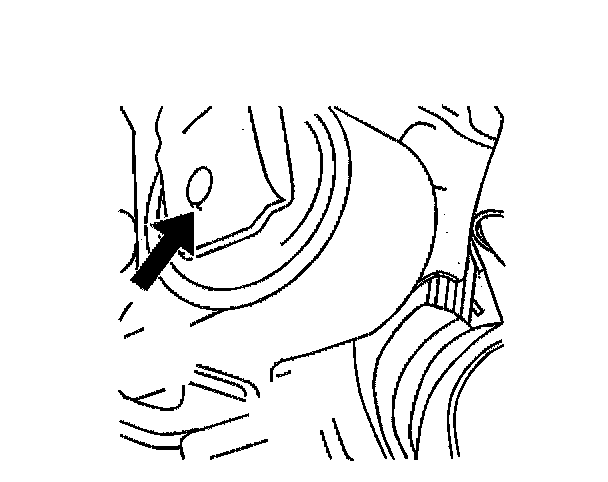

5. Install the mount thru bolt.
Tighten the mount thru bolt to 55 Nm (41 ft. lbs.).

6. Remove the jackstand and the wood block.
7. Install the left splash shield.
8. Install the left tire and wheel assembly.
9. Lower the vehicle.
